C#多執行緒應用: UDP 傳送和接收資料－天天向上

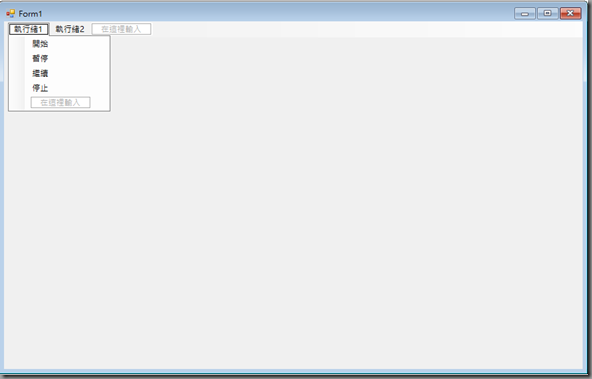

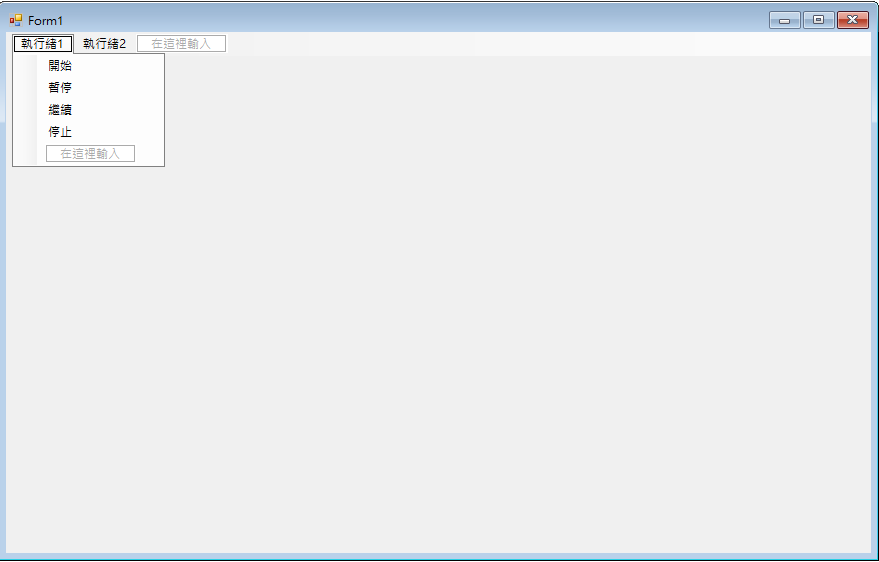

先加入 manuStrip

using System.Net;           // 網路通訊協定using System.Net.Sockets;   // 網路插座功能using System.Threading;     // 多執行緒

1. 設計一個Thread class

public class UDPThread    {        ManualResetEvent m_shutdownEvent = new ManualResetEvent(false);        ManualResetEvent m_pauseEvent = new ManualResetEvent(true);        Thread m_thread;        int m_cnt = 0;        public UDPThread() { }        public void Job()        {            while(true)            {                m_pauseEvent.WaitOne(Timeout.Infinite);                if (m_shutdownEvent.WaitOne(0))                    break;                m_cnt++;            }        }        public void Start()        {            m_thread = new Thread(Job);            m_thread.Start();        }        public void Pause()        {            m_pauseEvent.Reset();        }        public void Resume()        {            m_pauseEvent.Set();        }        public void Stop()        {            m_shutdownEvent.Set();            m_pauseEvent.Set();            m_thread.Join();        }    }

2. 執行緒中如何更新UI?

2.1 加入Label設定/取值功能

public Label CntLabel{    set;    get;}

2.2 加入更新UpdateUI

public void UpdateUI()       {           if (CntLabel.InvokeRequired)           {               CntLabel.BeginInvoke( (Action)( () => { UpdateUI(); }) );           }           else           {               CntLabel.Text = m_cnt.ToString();           }       }

2.3 UI加入對應事件

private void 開始ToolStripMenuItem_Click(object sender, EventArgs e)       {           udp1= new UDPThread();           udp1.CntLabel = label1;           udp1.Start();                  }        private void 暫停ToolStripMenuItem_Click(object sender, EventArgs e)       {           udp1.Pause();       }        private void 繼續ToolStripMenuItem_Click(object sender, EventArgs e)       {           udp1.Resume();       }        private void 停止ToolStripMenuItem_Click(object sender, EventArgs e)       {           udp1.Stop();       }        private void 開始ToolStripMenuItem1_Click(object sender, EventArgs e)       {           udp2 = new UDPThread();           udp2.CntLabel = label2;           udp2.Start();       }        private void 暫停ToolStripMenuItem1_Click(object sender, EventArgs e)       {           udp2.Pause();       }        private void 繼續ToolStripMenuItem1_Click(object sender, EventArgs e)       {           udp2.Resume();       }        private void 停止ToolStripMenuItem1_Click(object sender, EventArgs e)       {           udp2.Stop();       }

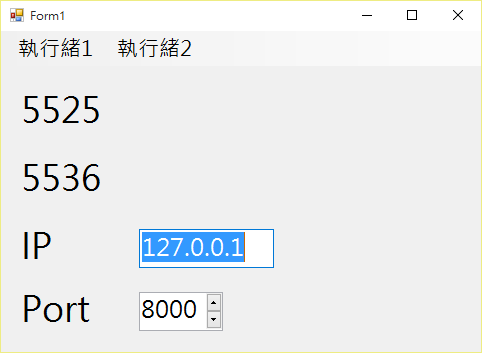

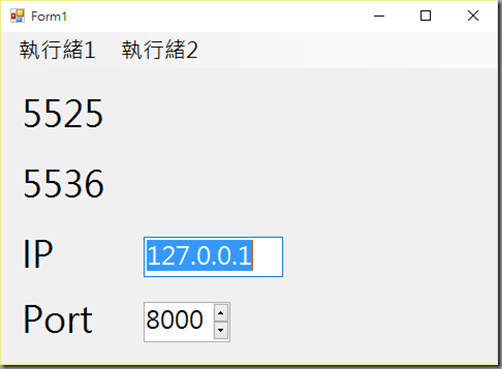

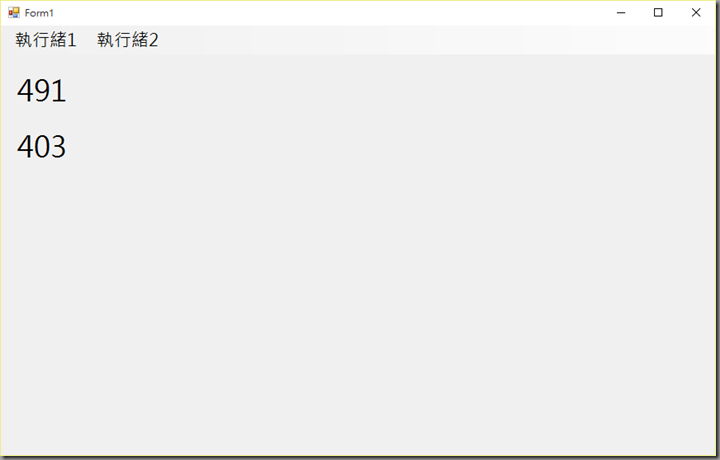

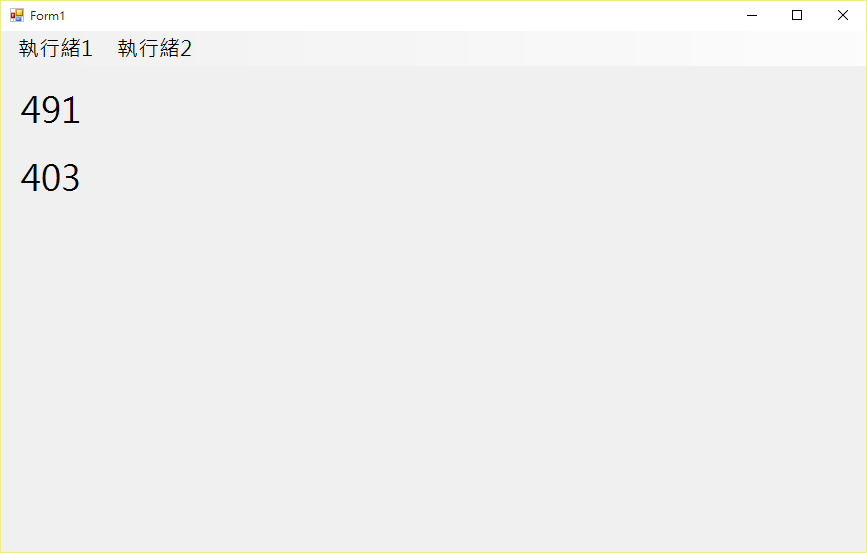

啟動執行緒1和執行緒2後, 畫面如下:

2.4 在Form Closing加入防呆

private void Form1_FormClosing(object sender, FormClosingEventArgs e){    if (udp1 != null) udp1.Stop();    if (udp2 != null) udp2.Stop();}

=================================================================

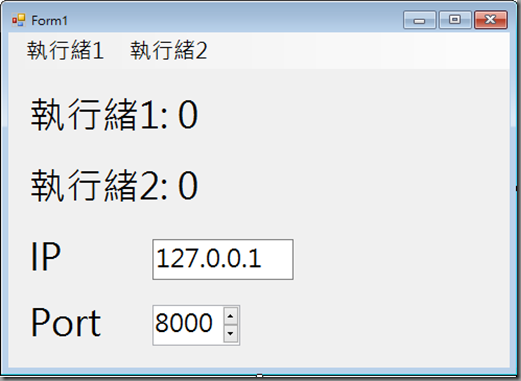

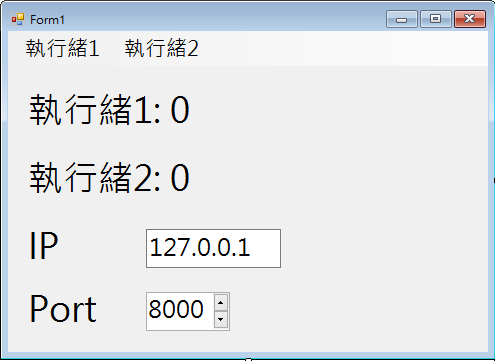

3. UI加入IP和PORT設定,

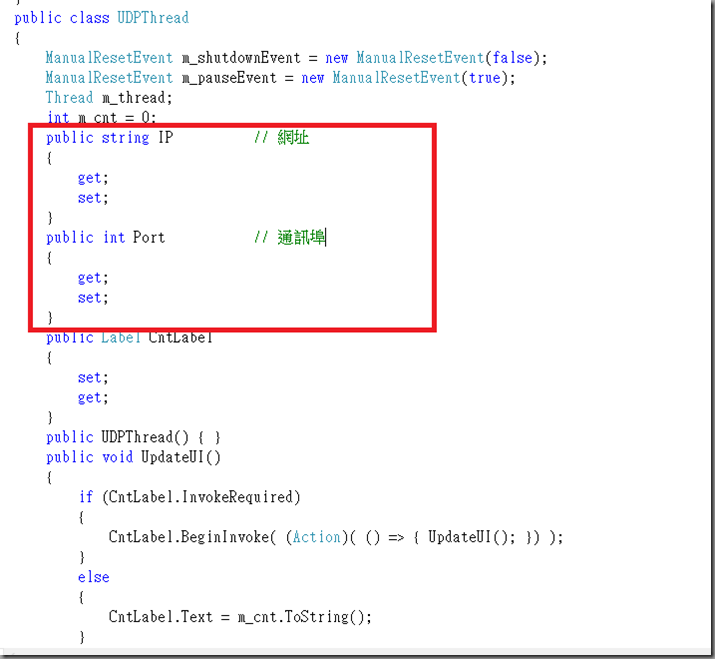

3.1 新增IP和Port的存取

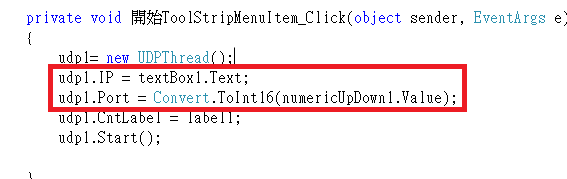

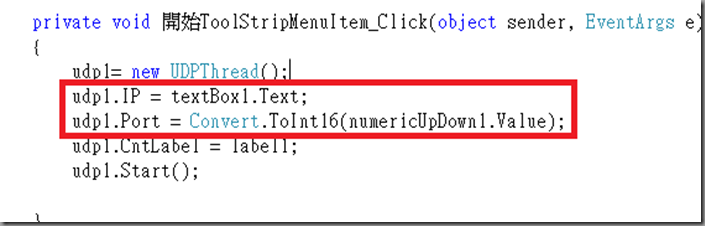

修改開始執行緒1

同時, 修改開始執行緒2

private void 開始ToolStripMenuItem1_Click(object sender, EventArgs e){    udp2 = new UDPThread();    udp2.IP = textBox1.Text;    udp2.Port = Convert.ToInt16(numericUpDown2.Value);    udp2.CntLabel = label2;    udp2.Start();}

準備加入監聽InitUDP()和接收資料RecvData()功能

3.2 UDP初始化

private void InitUDP(){    if (m_udp == null)        if (JobType == JOBTYPE.RECVDTA)            m_udp = new UdpClient(Port);                         // 創建一個UDP實體        else            m_udp = new UdpClient();    if (m_IPEP == null) m_IPEP = new IPEndPoint(IPAddress.Parse(IP), Port); // 創建一個連線插座}

3.3 接收資料RecvData()

public void RecvData(){    try    {        if (m_udp.Available > 0)           // 很重要, 否則會被咬住        {            if(CntLabel.InvokeRequired)            {                CntLabel.BeginInvoke( (Action)(() => { RecvData(); }) );            }else{                byte[] B = m_udp.Receive(ref m_IPEP);                CntLabel.Text = Encoding.Default.GetString(B);            }        }                    }    catch (Exception e)    {        //MessageBox.Show(e.Message);    }     }

3.4 傳送資料SendData()

public void SendData()        {            try            {                if (CntLabel.InvokeRequired)                {                    CntLabel.BeginInvoke((Action)(() => { SendData(); }));                }                else                {                    string str = m_cnt.ToString();                    byte[] B = Encoding.Default.GetBytes(str);                    m_udp.Send(B, B.Length, IP, Port);                    CntLabel.Text = str;                 }            }            catch (Exception e)            {                //MessageBox.Show(e.Message);            }        }

3.5 判定該執行緒執行SendData()或是RecvData()

public  enum JOBTYPE { SENDDATA, RECVDTA };          // 傳送, 接收

3.6 修改Job內容

public void Job(){    InitUDP();    while(true)    {        m_pauseEvent.WaitOne(Timeout.Infinite);        if (m_shutdownEvent.WaitOne(0))            break;        m_cnt++;                if (JobType == JOBTYPE.RECVDTA)        {            RecvData();            //UpdateUI();        }        else        {            SendData();        }        Thread.Sleep(m_timeSleep);    }}

3.7 修改開始執行緒1

private void 開始ToolStripMenuItem_Click(object sender, EventArgs e){        udp1= new UDPThread();    udp1.IP = textBox1.Text;    udp1.Port = Convert.ToInt16(numericUpDown1.Value);    udp1.CntLabel = label1;    udp1.JobType = JOBTYPE.RECVDTA;    udp1.Start();    }

3.7 修改開始執行緒2

private void 開始ToolStripMenuItem1_Click(object sender, EventArgs e){    udp2 = new UDPThread();    udp2.IP = textBox1.Text;    udp2.Port = Convert.ToInt16(numericUpDown1.Value);    udp2.CntLabel = label2;    udp2.JobType = JOBTYPE.SENDDATA;    udp2.Start();}
