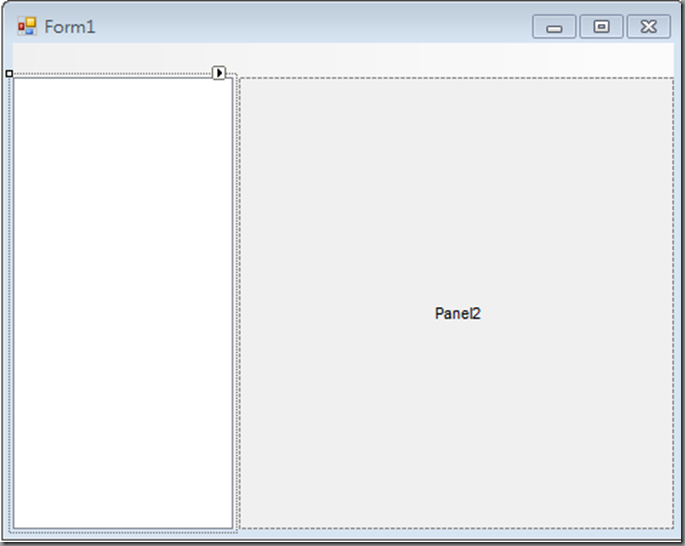

拉一個MenuStrip, SplitContainer和ListView元件

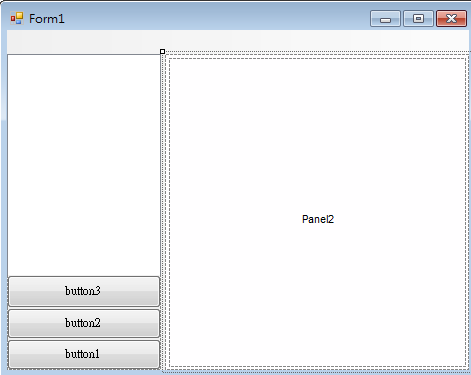

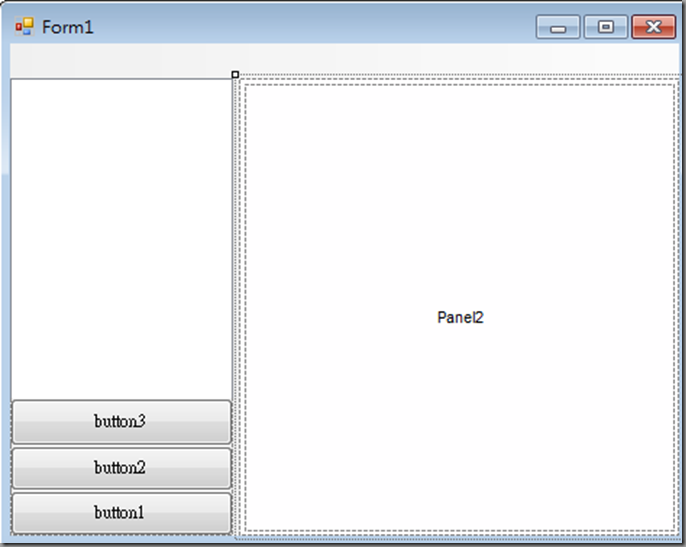

加入3個button

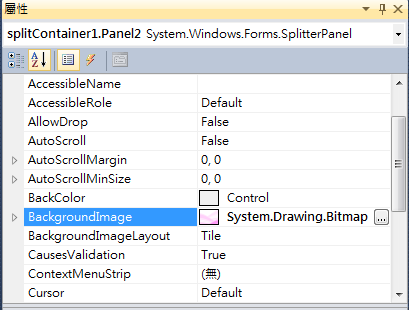

設定splitContainer1.Panel2的背景圖, 點選BackgroundImage選擇想要的背景圖片


更新ListView的套餐項目

   1: private void package(Int16 num)
   2: {
   3:     listView1.Clear();                      //清空listView1中的原有內容
   4:     switch (num)
   5:     {
   6:         case 1:
   7:             listView1.Items.Add("烤魚", "烤魚", 5);
   8:             listView1.Items.Add("荔枝", "荔枝", 6);
   9:             listView1.Items.Add("水果", "水果", 7);
  10:             break;
  11:         case 2:
  12:             listView1.Items.Add("巧克力", "巧克力", 2);
  13:             listView1.Items.Add("薯條", "薯條", 4);
  14:             listView1.Items.Add("冰淇淋", "冰淇淋", 9);
  15:             break;
  16:         case 3:
  17:             listView1.Items.Add("紅酒", "紅酒", 0);
  18:             listView1.Items.Add("早餐", "早餐", 1);
  19:             listView1.Items.Add("水果", "水果", 8);
  20:             break;
  21:     }
  22: }

更新套餐按鈕順序, 被點選的設定為Top,其餘Bottom

   1: private void sortBtn(Int16 num)
   2: {
   3:
   4:     switch (num)
   5:     {
   6:         case 1:
   7:             button1.Dock = DockStyle.Top;
   8:             button2.Dock = DockStyle.Bottom;
   9:             button1.SendToBack();
  10:             button3.Dock = DockStyle.Bottom;
  11:             break;
  12:         case 2:
  13:             button2.Dock = DockStyle.Top;
  14:             button2.SendToBack();
  15:             button1.Dock = DockStyle.Bottom;
  16:             button3.Dock = DockStyle.Bottom;
  17:             break;
  18:         case 3:
  19:             button3.SendToBack();
  20:             button3.Dock = DockStyle.Top;
  21:             button3.SendToBack();
  22:             button2.Dock = DockStyle.Bottom;
  23:             button1.SendToBack();
  24:             button1.Dock = DockStyle.Bottom;
  25:             break;
  26:     }
  27: }

在Form_Load事件加入listView1的大圖來源屬性(LargeImageList)設定

   1:
   2:         private void Form1_Load(object sender, EventArgs e)
   3:         {
   4:
   5:             listView1.LargeImageList = imageList1;  //設定目前項以大圖標的形式顯示時用到的圖像
   6:
   7:         }

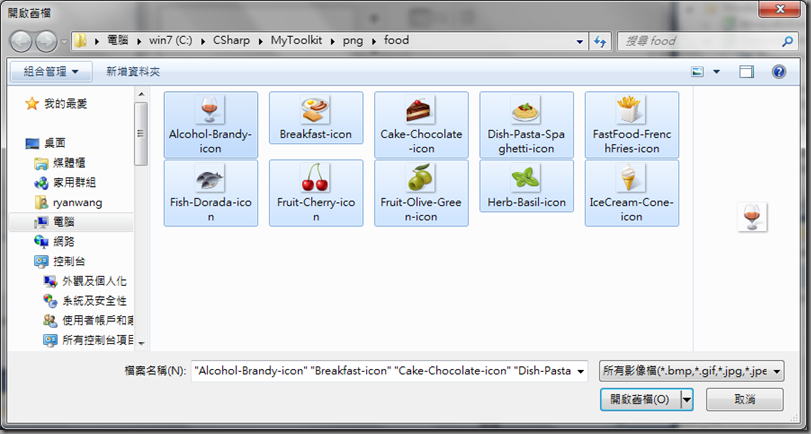

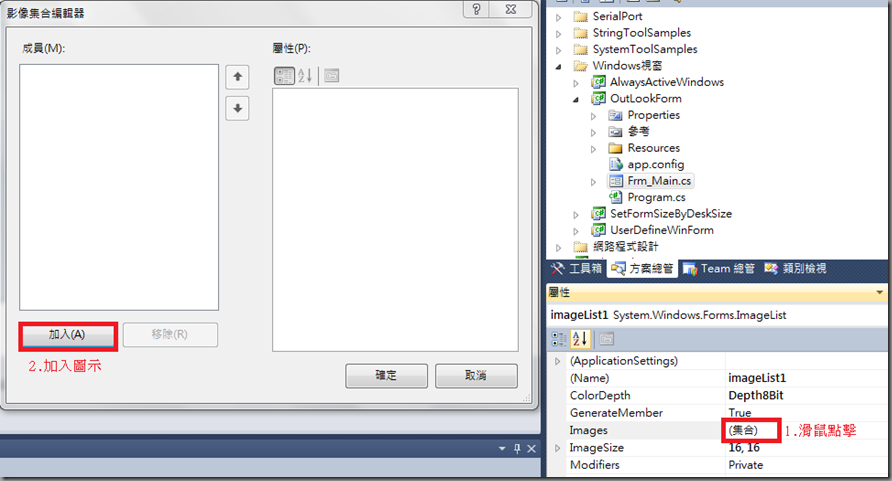

imageList加入圖示

image_thumb2[1]

圖片來源: food icon

image_thumb4

按下<確認>

image_thumb6

button1~3的點選(Click)事件如下:

   1: private void button3_Click(object sender, EventArgs e)
   2: {
   3:     package(3);
   4:     sortBtn(3);
   5: }
   6: private void button2_Click(object sender, EventArgs e)
   7: {
   8:     package(2);
   9:     sortBtn(2);
  10: }
  11:
  12: private void button1_Click(object sender, EventArgs e)
  13: {
  14:     package(1);
  15:     sortBtn(1);
  16: }

最後加入判定套餐中哪些item被選中

   1: private void listView1_SelectedIndexChanged(object sender, EventArgs e)
   2:       {
   3:           StringBuilder sb = new StringBuilder();
   4:           foreach( ListViewItem item in listView1.SelectedItems)
   5:           {
   6:               sb.Append(item.Text+",");
   7:           }
   8:           sb.Remove(sb.Length - 1, 1);
   9:           this.Text = sb.ToString();
  10:       }

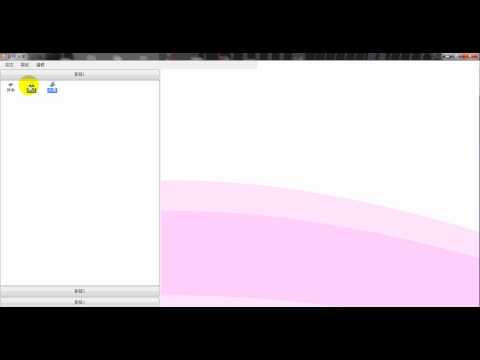

成果展示:
