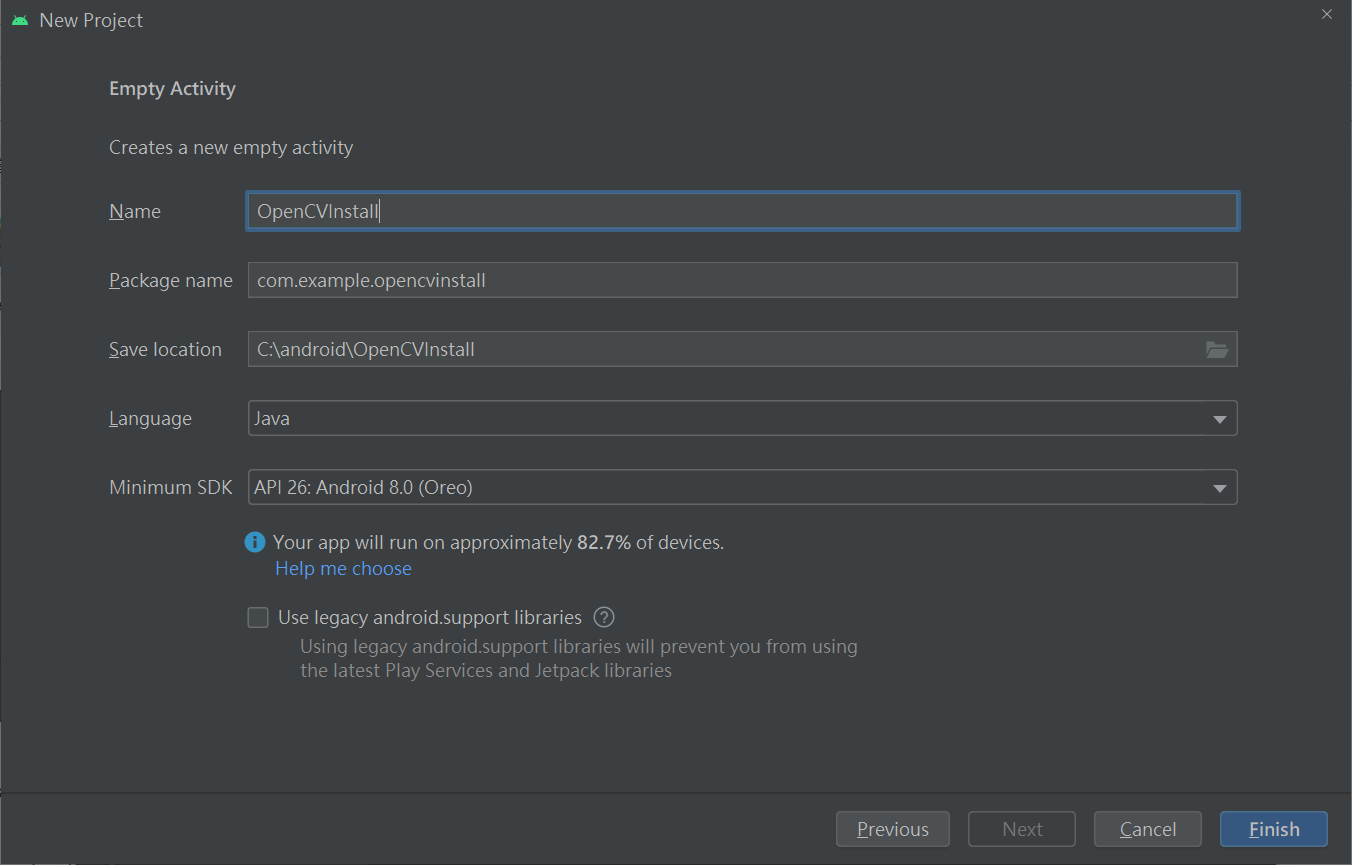

Name: OpenCVInstall

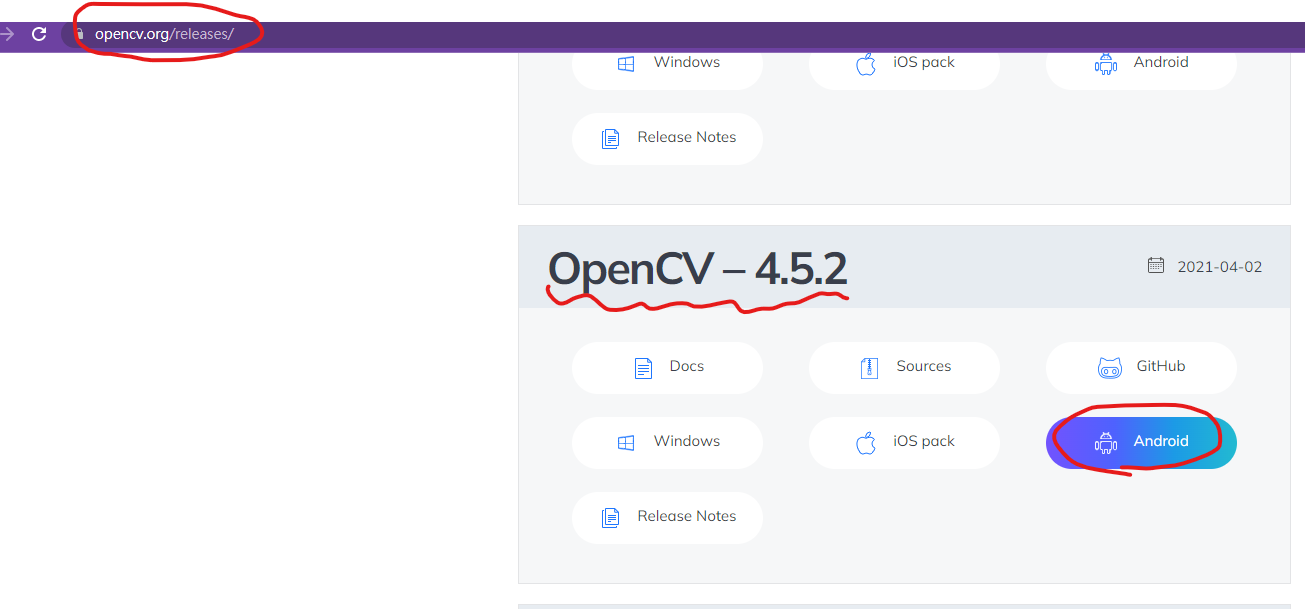

Download opencv-4.5.2-android-sdk.zip and unzip it.

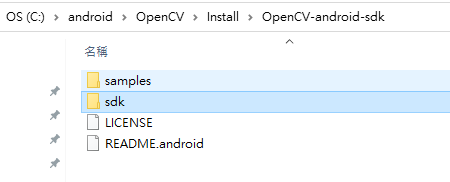

After that you'll see OpenCV-android-sdk, and we're gonna import this module later

Here I skipped the error message if you import OpenCV by traditional method.

Let's just go to the main task directly

Copy the sdk folder from OpenCV-android-sdk directory

Paste it in the projcet's root directory

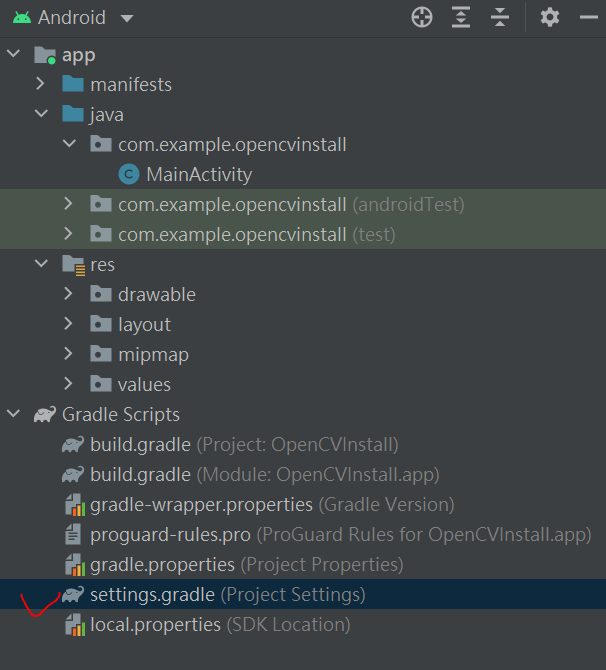

Later we're gonna modify setting.gradle for the sdk

Add a string in the bottom: include ':sdk' and then press the sync button in the right top corner

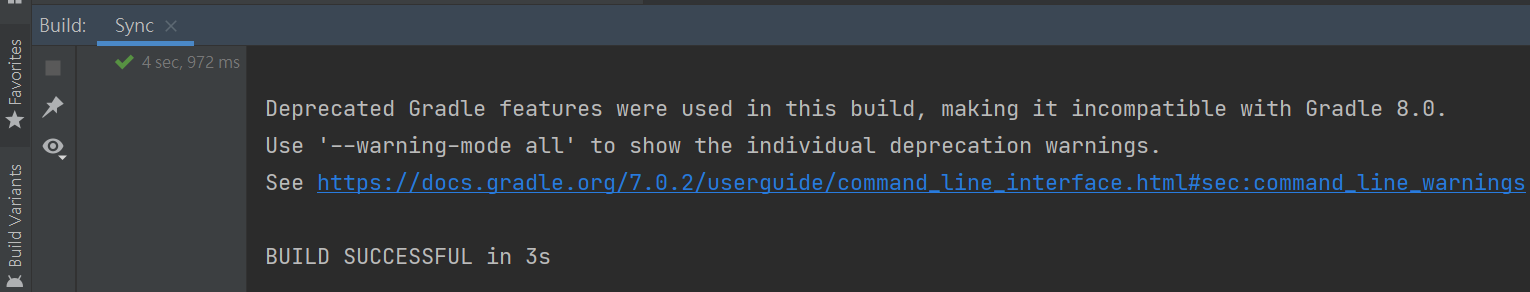

Congratulations on seeing the following information.

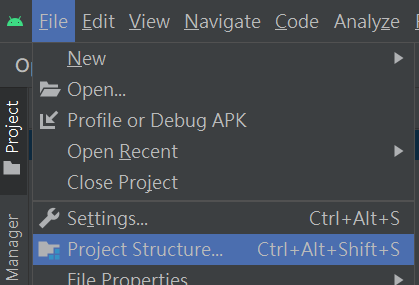

Go to File->Project Structure

Click "Dependencies"

Choose "app"

Press the plus sign "+" under Declared Dependencies

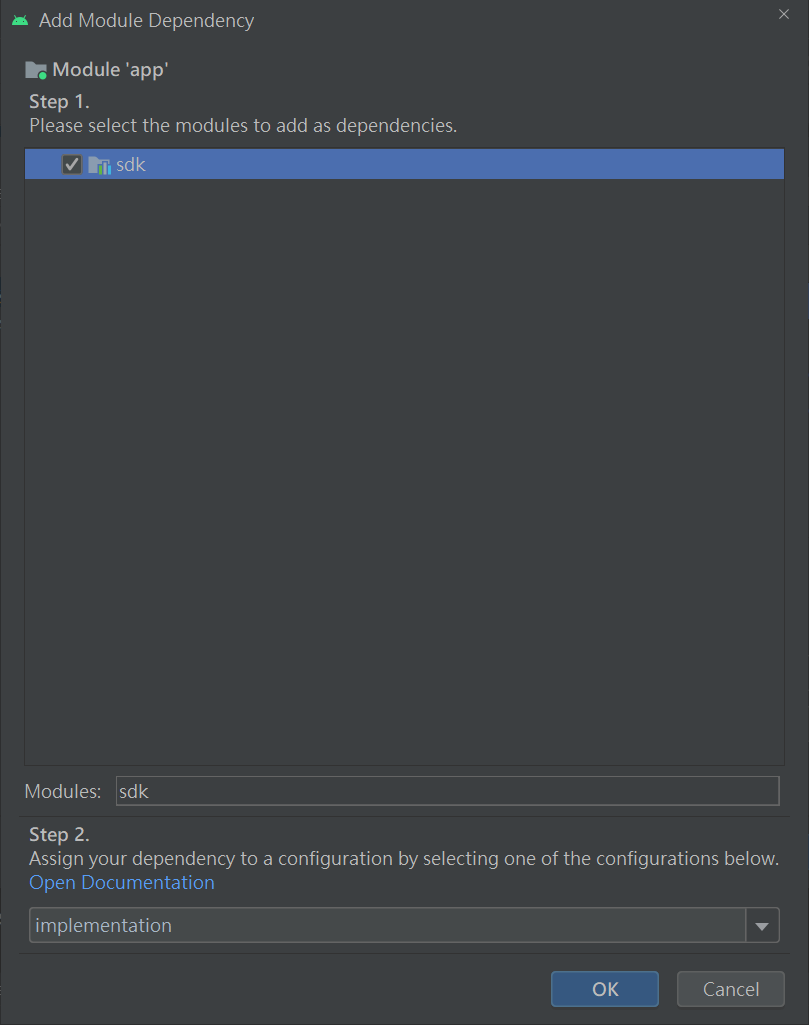

Pop up a dialog and choose 3. Module Dependency

Check the sdk and press OK

After that it's going to sync again.

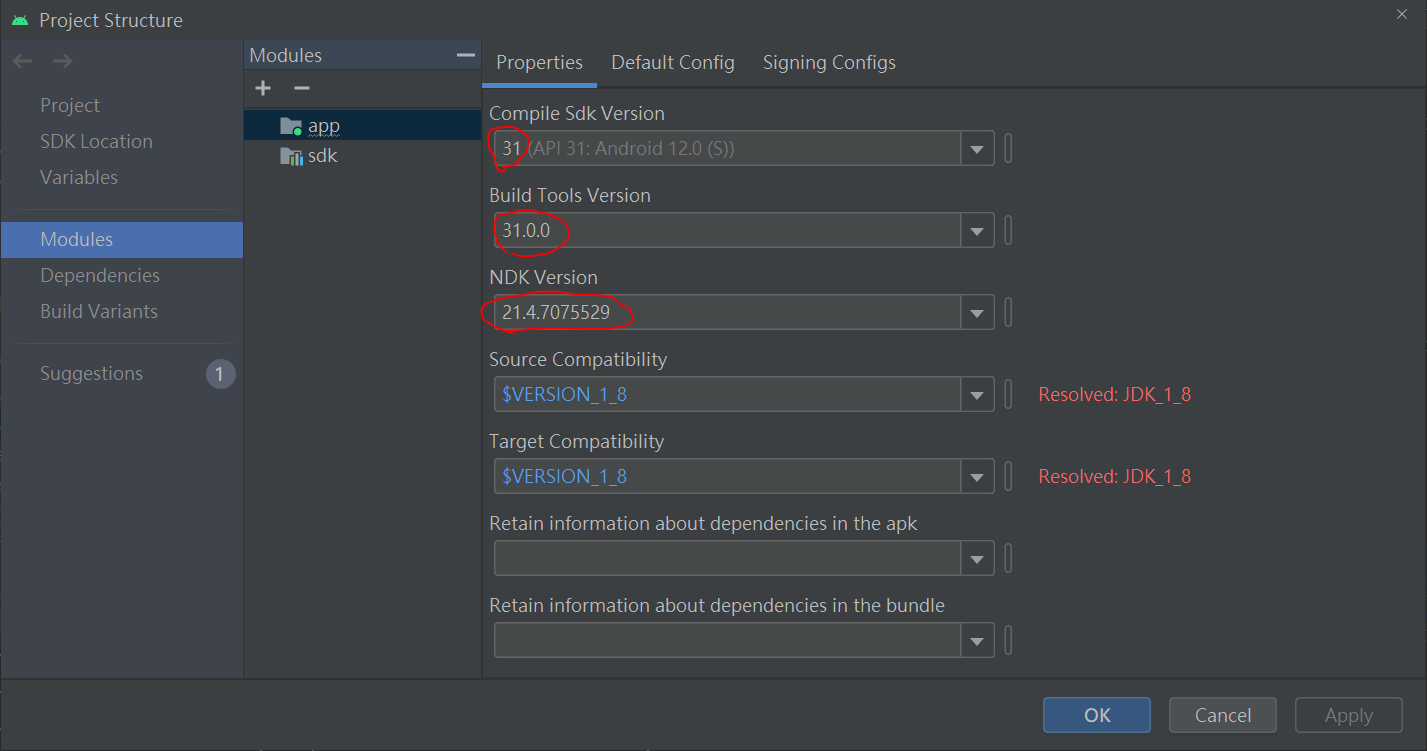

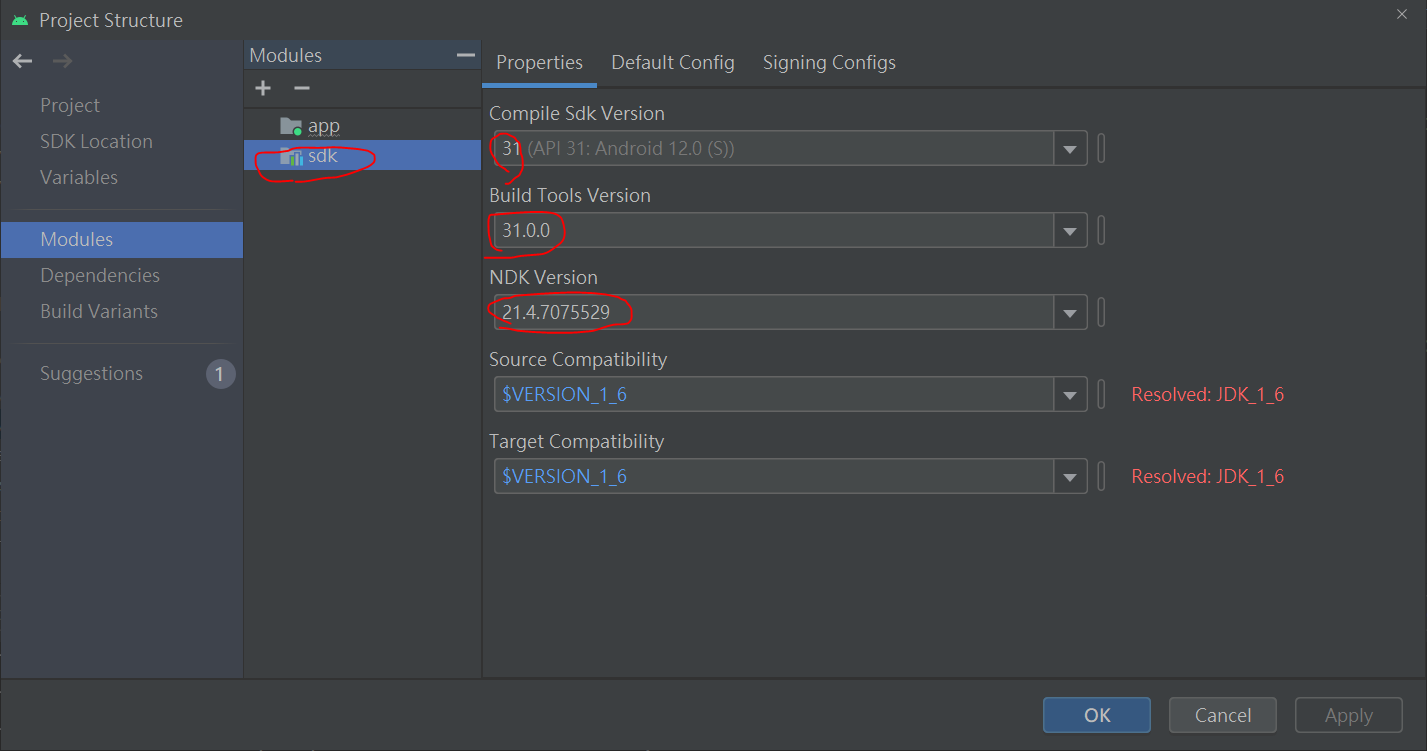

Choose the app and set two versions below

1. Compile Sdk Version

2. Build Tools Version

Do it again for the sdk

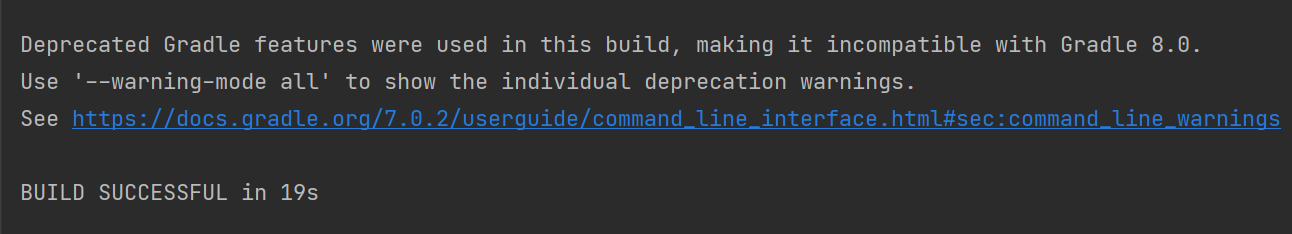

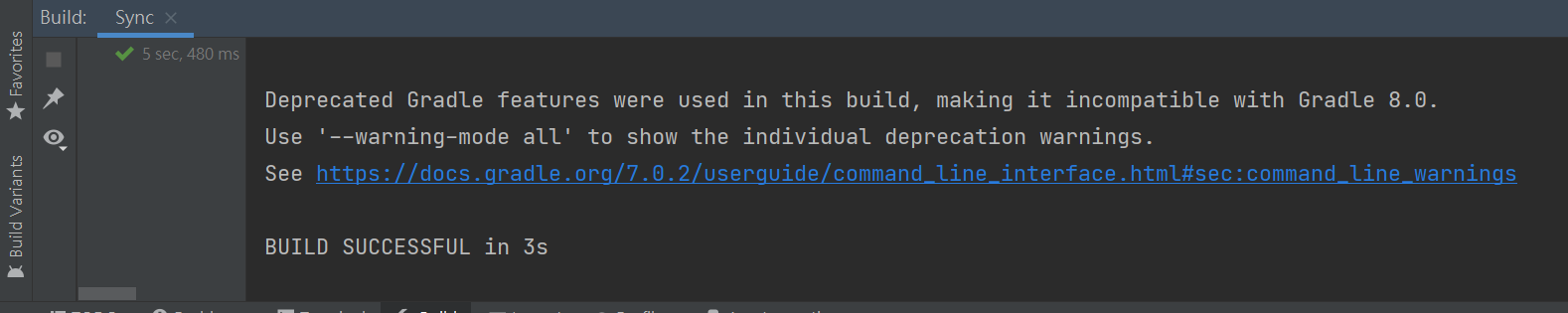

You're almost there if you see the BUILD successful

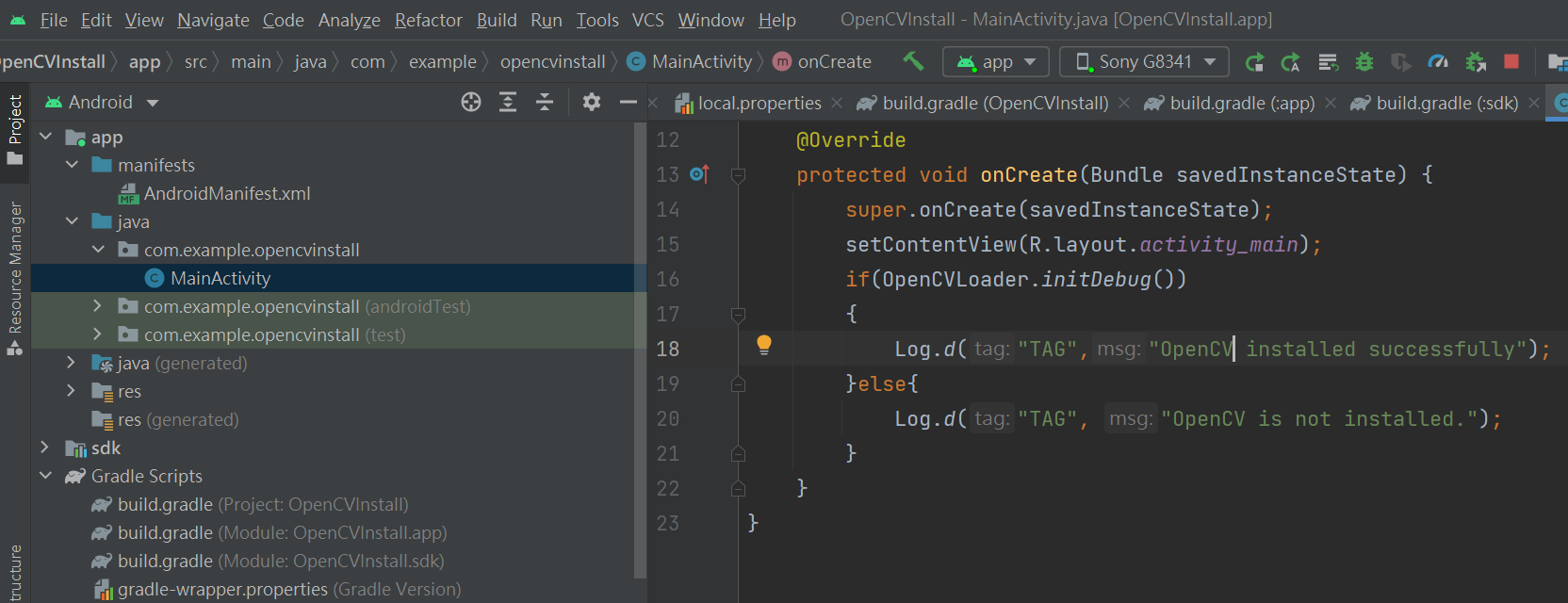

Now We're gonna check if OpenCV modules work well

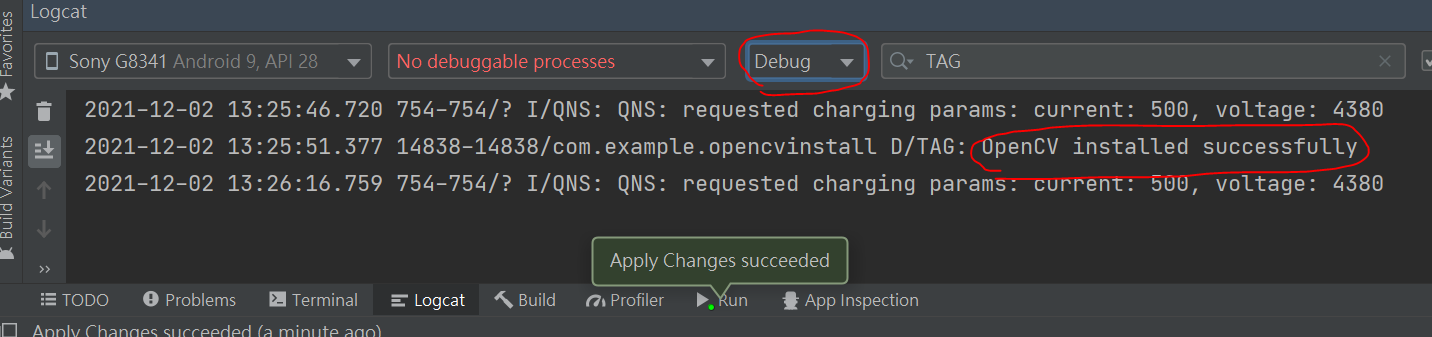

Go to Logcat, select "Debug" and it's great to see the log "OpenCV installed successfully"

One thing should be noticed even you do such simple stuff like this:

Mat img = new Mat();

You have to make sure that OpenCVLoader has been initialized before you call any OpenCV module.

if (!OpenCVLoader.initDebug())
{
    Log.d("OpenCV", "Internal OpenCV library not found. Using OpenCV Manager for initialization");
}
