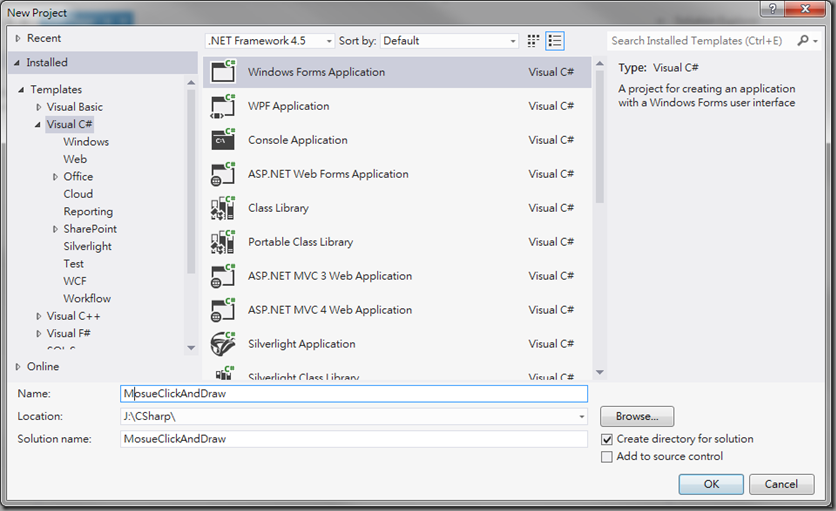

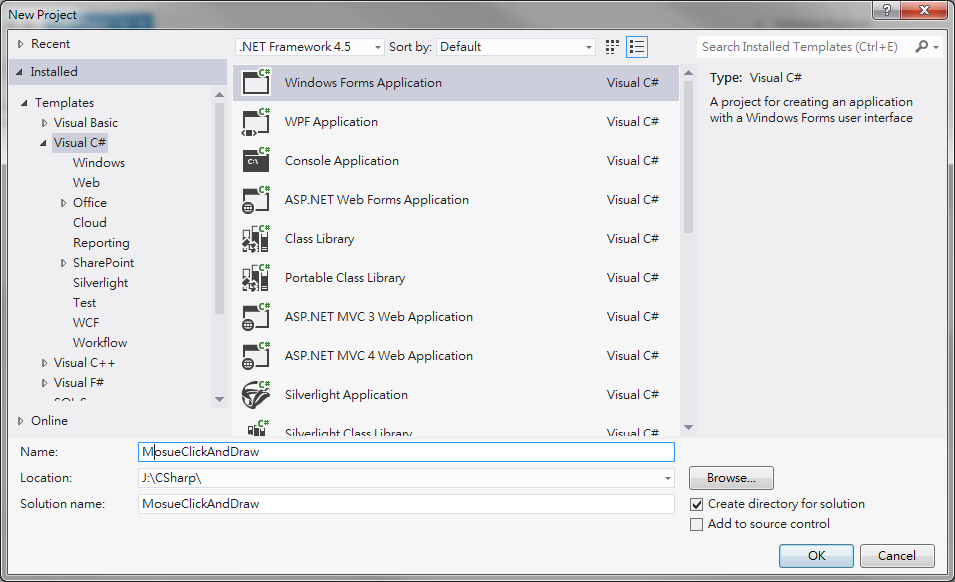

首先, 新增一個專案名稱“MouseClickAndDraw”

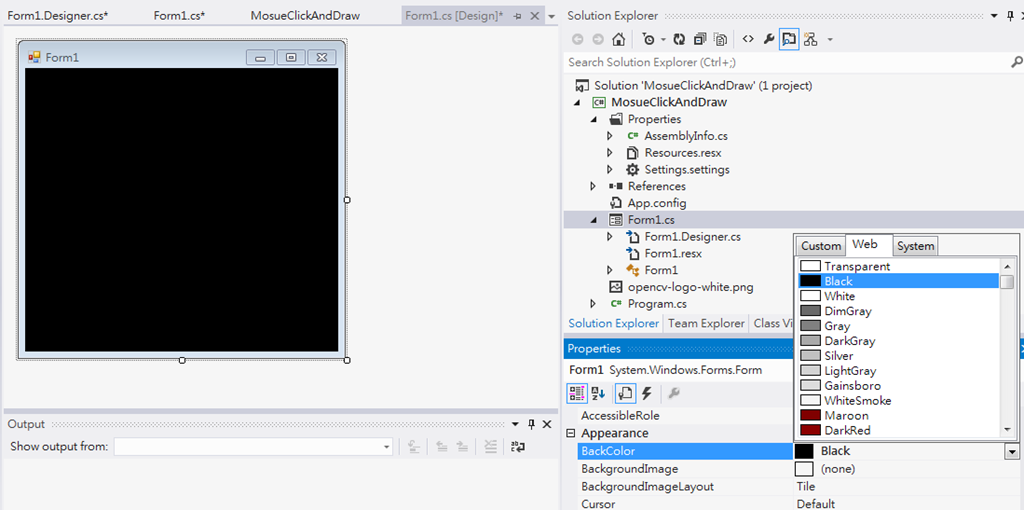

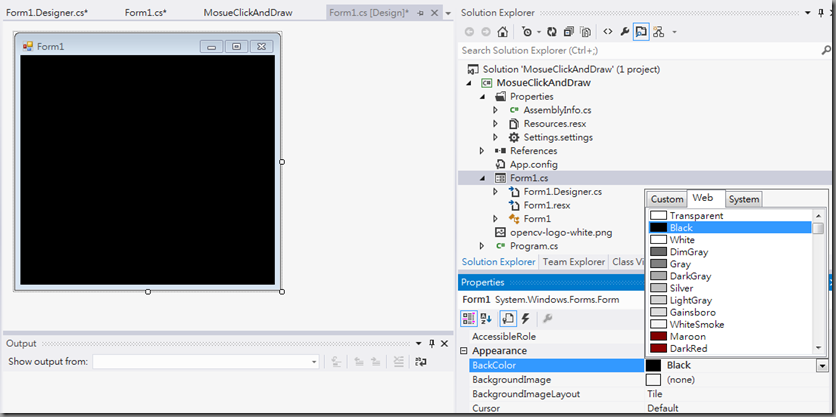

設定BackColor 屬性值為 Black color

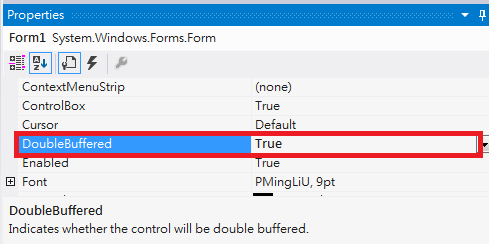

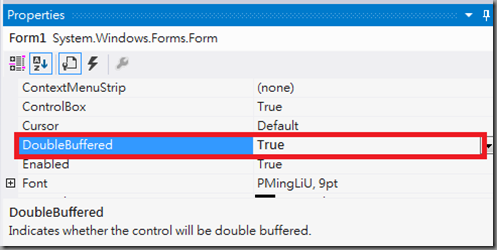

設定DoubleBuffered 為True

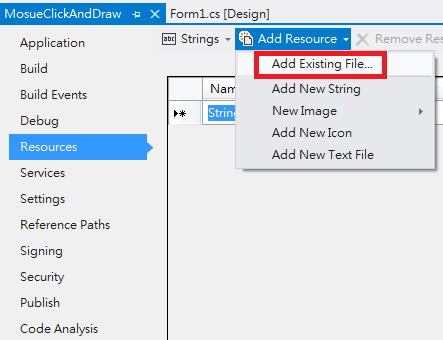

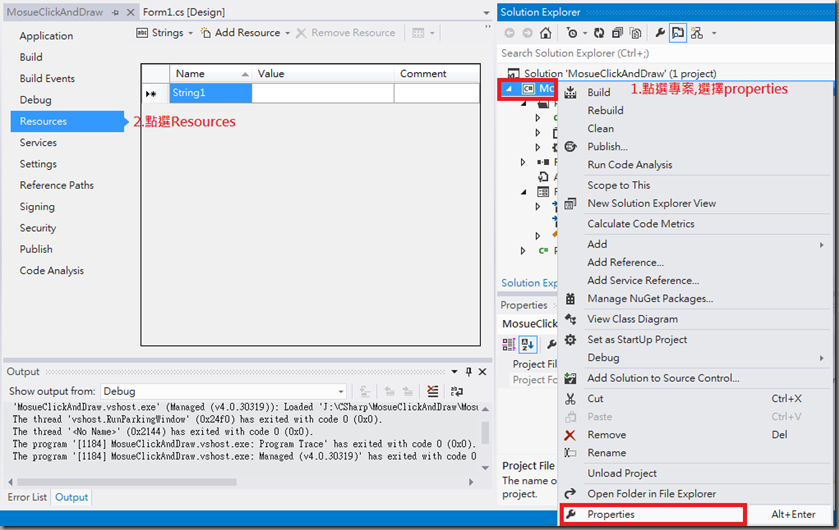

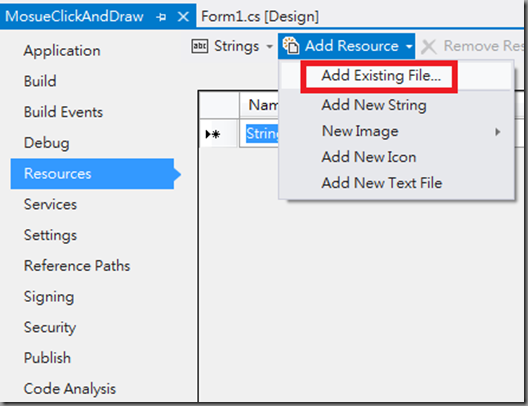

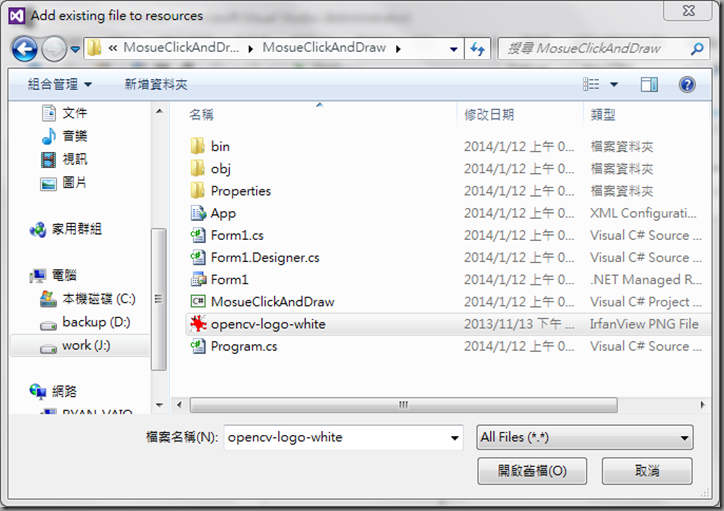

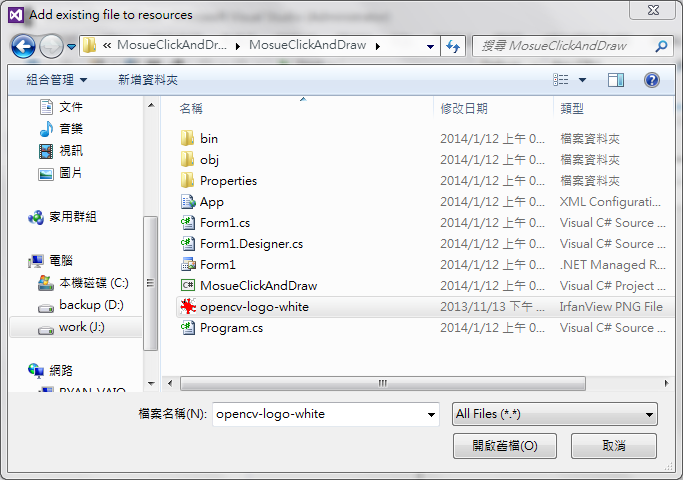

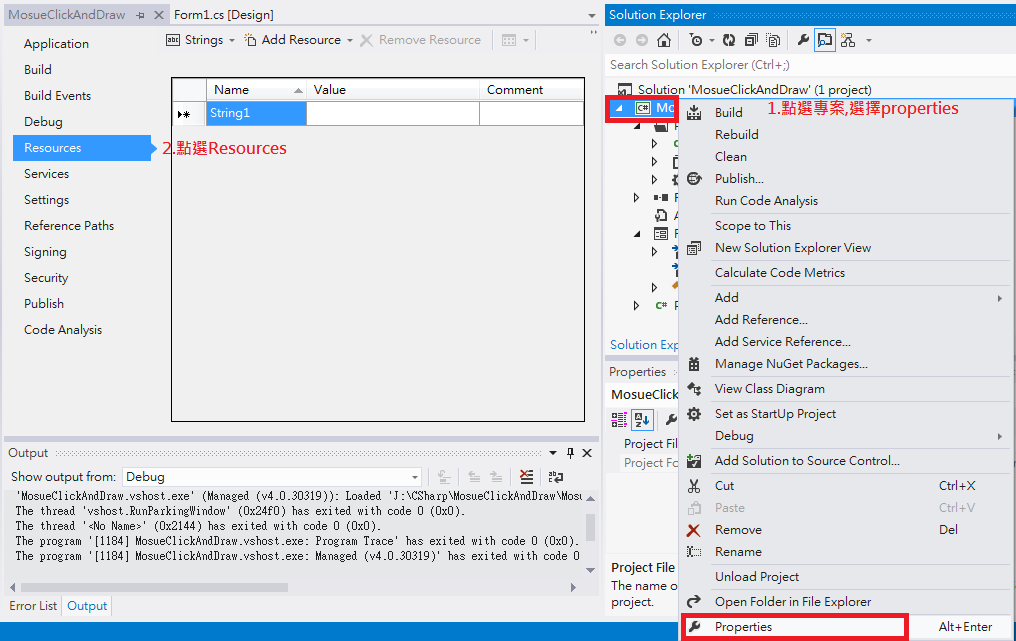

加入圖片至Resources

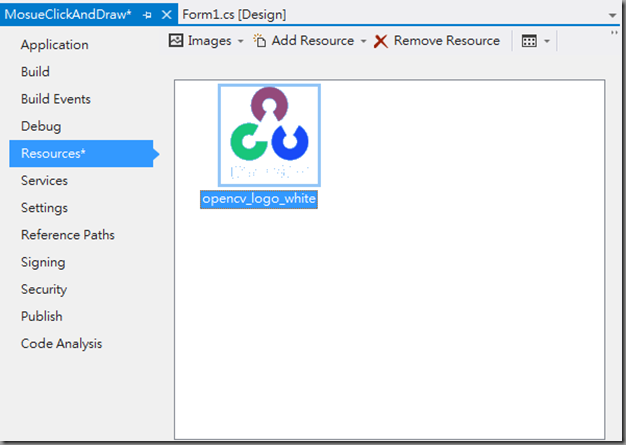

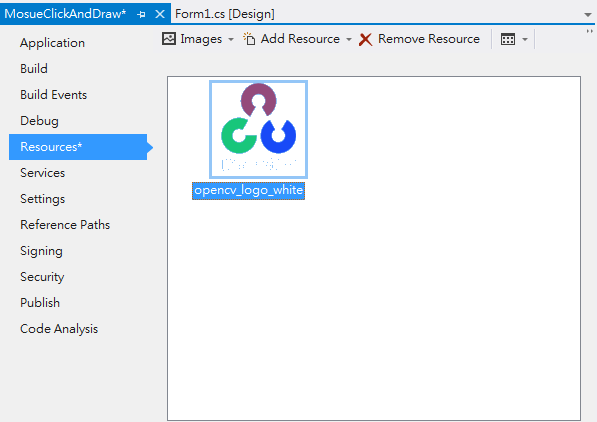

載入後可以預覽照片
1: public partial class Form1 : Form
2: {3: Point[] pt = new Point[100];
4: int pt_index = -1;
5: Image img = Properties.Resources.opencv_logo_white; 6: 7: public Form1()

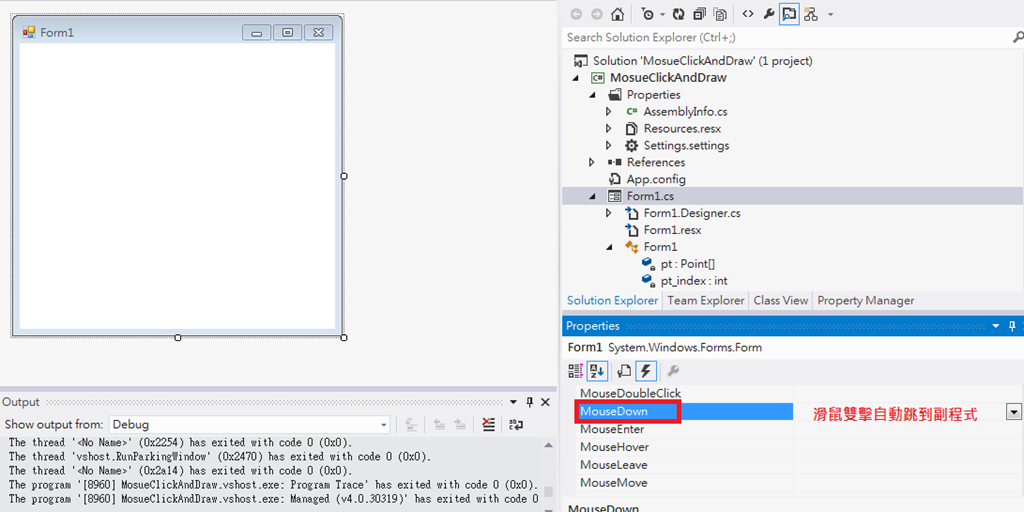

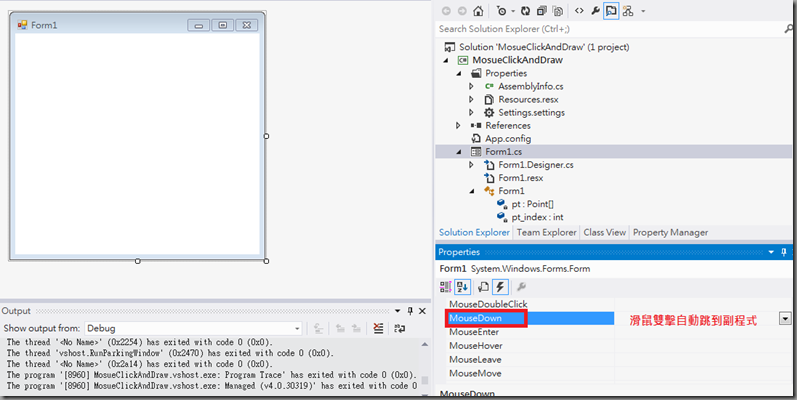

8: { 9: InitializeComponent(); 10: } 11: }定義滑鼠按下事件
1: private void Form1_MouseDown(object sender, MouseEventArgs e)
2: {3: if (pt_index < pt.Length) // 如果一維陣列內的 100 個位置還沒裝滿
4: {5: pt_index++; // 一維陣列 的索引往前
6: pt[pt_index] = new Point(e.X, e.Y); // 存入 滑鼠游標位置
7: }8: this.Invalidate(); // 要求表單重畫

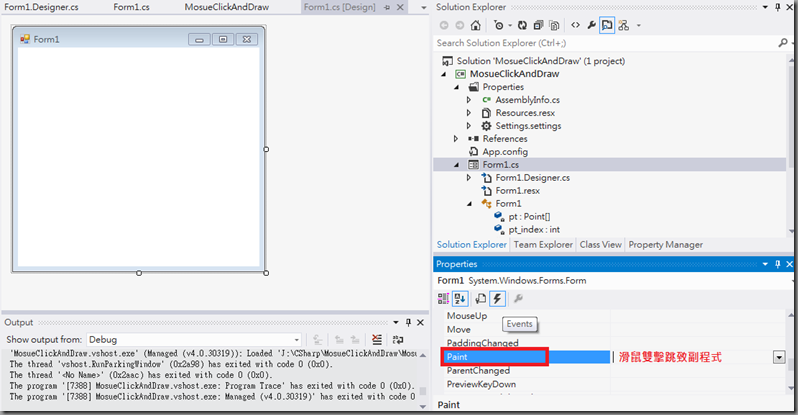

9: }定義Paint事件
1: private void Form1_Paint(object sender, PaintEventArgs e)
2: {3: for (int i = 0; i <= pt_index; i++)
4: { 5: e.Graphics.DrawImage(img,6: pt[i].X - img.Width / 2, pt[i].Y - img.Height / 2, //影像左上角在表單的位置
7: img.Width, img.Height); //影像的寬高

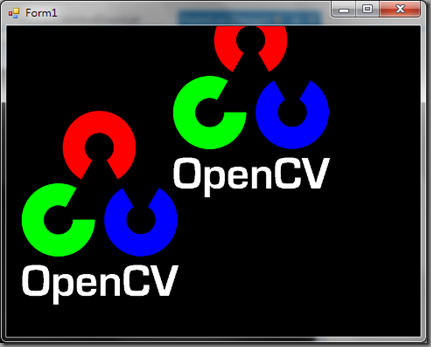

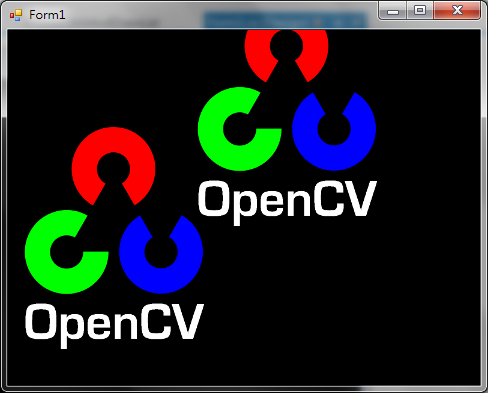

8: } 9: }執行結果
sample code: MouseClickAndDraw
