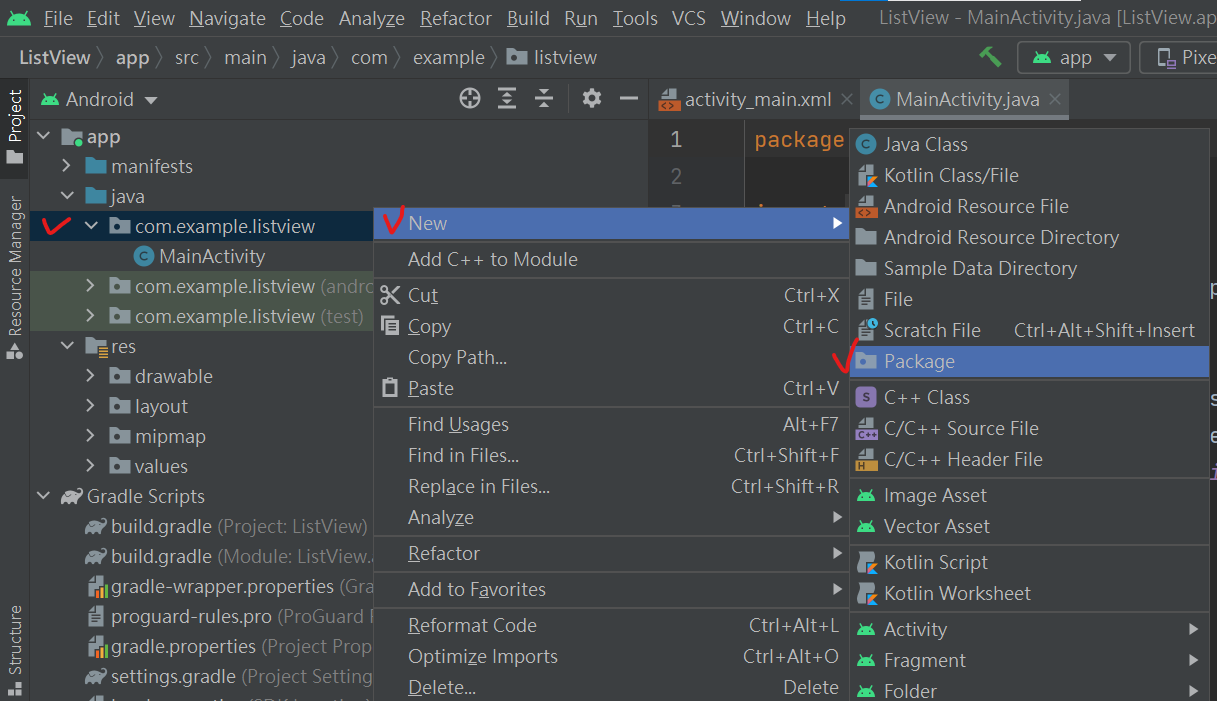

Add a new package

The new package's name is mylistview

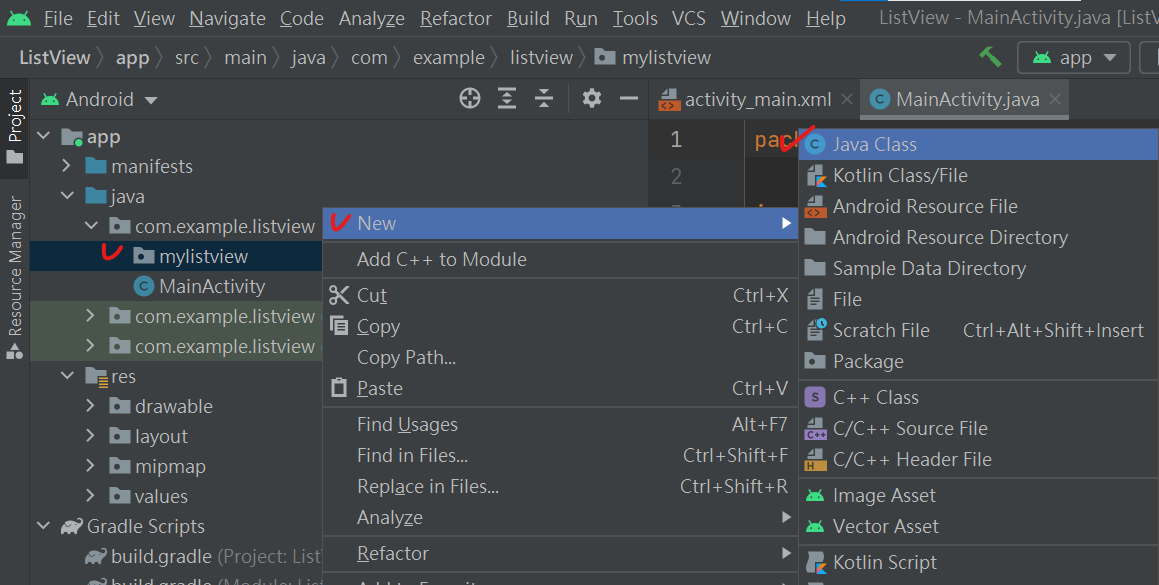

Add an activity for the new package

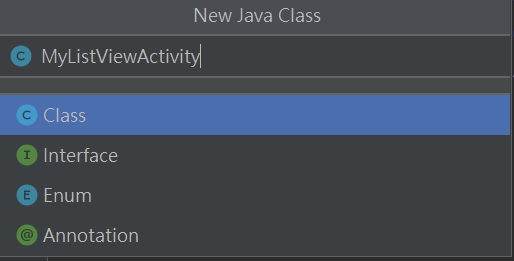

The new Java class's name is MyListViewActivity

The snippet code looks like this

package com.example.listview.mylistview;

import android.app.Activity;
import android.os.Bundle;

import androidx.annotation.Nullable;

public class MyListViewActivity extends Activity {
    @Override
protected void onCreate(@Nullable Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
setContentView(R.layout.);

}

And ready to add a new layout for a minute

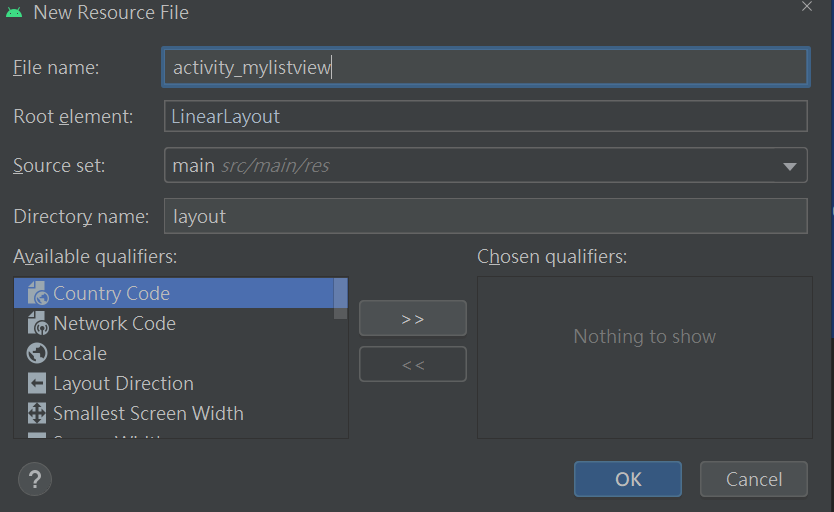

The file name is activity_mylistview and its root is LinearLayout

---------------

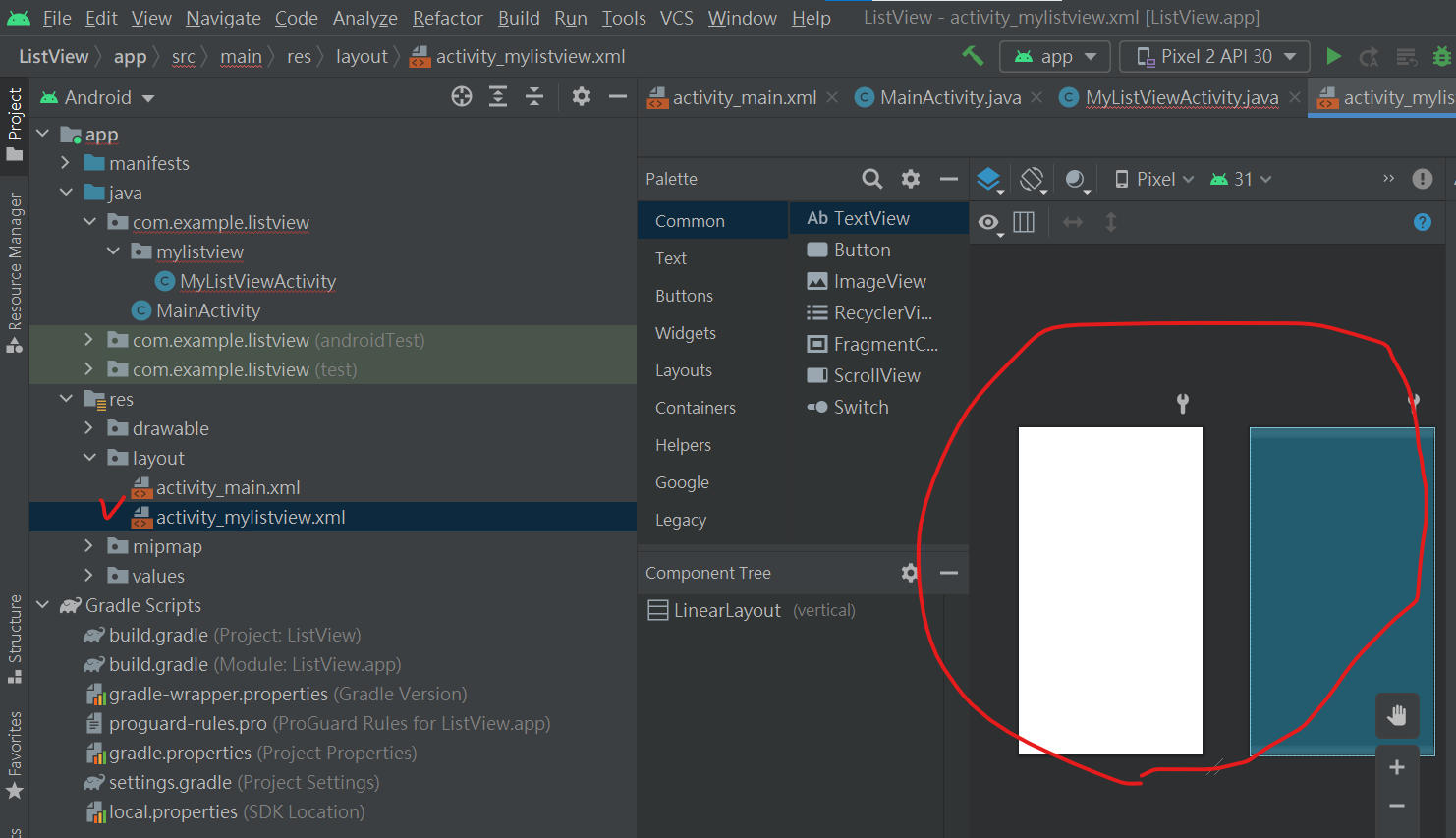

An empty layout for activity_mylistview.xml is created successfully

And its XML stuff is shown below

  <?
  xml version
  ="1.0"
  encoding
  ="utf-8"
  ?>

  <LinearLayout
  xmlns:
  android
  ="http://schemas.android.com/apk/res/android"

  android
  :orientation
  ="vertical"

  android
  :layout_width
  ="match_parent"

  android
  :layout_height
  ="match_parent"
  >





  </LinearLayout>

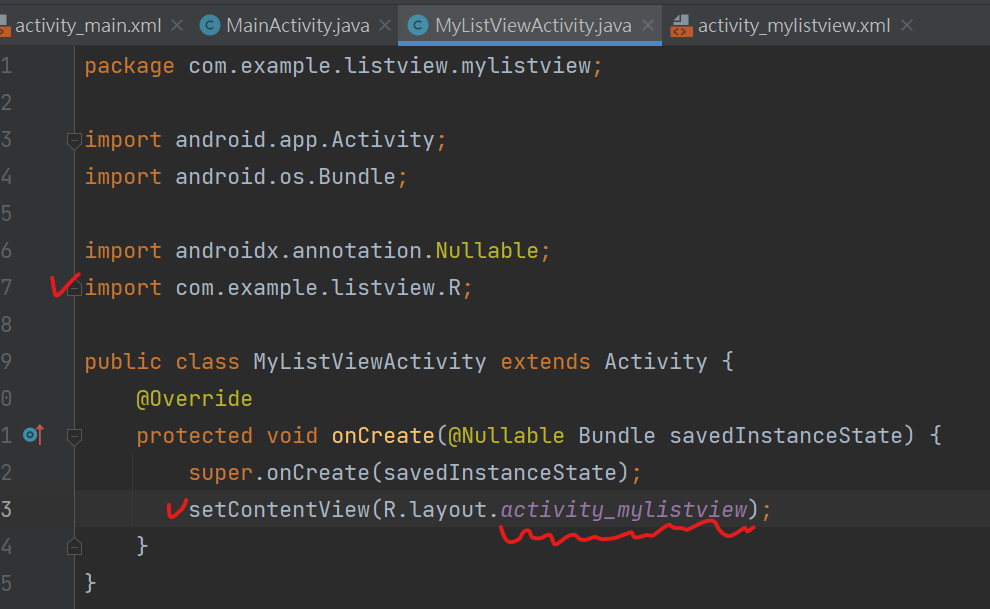

so we can now go back to MyListViewActivity.java

1. import com.example.listview.R

2. setContentView

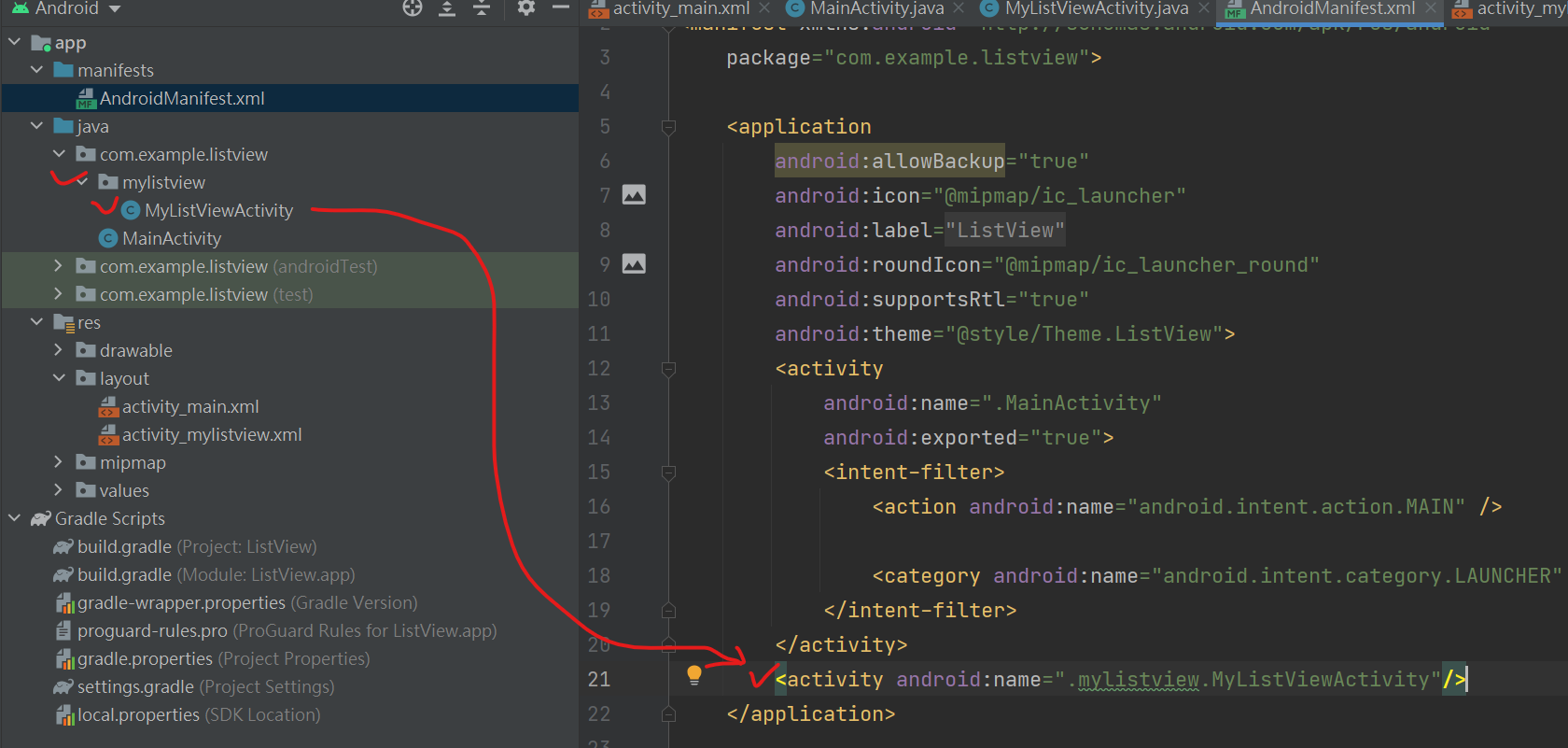

Modify manifests->AndroidManifest.xml

----------------------------------------

mylistview is the package's name that I created at the beginning.

In MainActivity.java, we add a button called m_btn, which is initialized by using findViewById method

And set its onClickListener in order to go to another page.

public class MainActivity extends AppCompatActivity {

    Button m_btn;

@Override
protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
setContentView(R.layout.activity_main);
m_btn = findViewById(R.id.btn_listview);
m_btn.setOnClickListener(new View.OnClickListener() {
            @Override
public void onClick(View v) {
                Intent intent = new Intent(MainActivity.this, MyListViewActivity.class);
startActivity(intent);
}
        });
}
}

---------------------------------------------------------
