Click <Configuration>
Click <Configuration>
Click <Generate>
Click <Open Project>
==================================================
c:\opencv\opencv4.2.0\download\opencv-4.2.0\modules\dnn\src\cuda\execution.hpp:52: error: (-217:Gpu API call) invalid device function in function 'cv::dnn::cuda4dnn::csl::make_policy'
==================================================
"invalid device function" means that CUDA binary code is not supported on your current GPU. Please check CUDA_ARCH_BIN CMake variable, it must contain actual compute capability of your card. For the list of compute capabilities per card please refer to https://developer.nvidia.com/cuda-gpus.
----------------------------------------------------------------
Seems fixed. Changed CUDA_GENERATION=AUTO and added 5.2 and 3.5 to CUDA_ARCH_BIN.
----------------------------------------------------------------

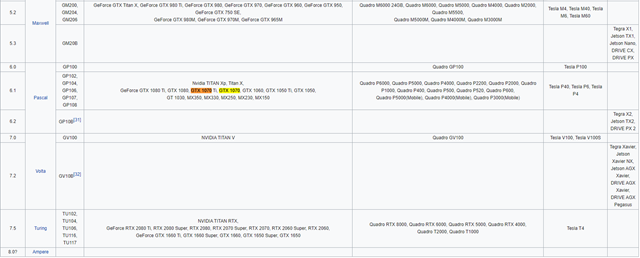

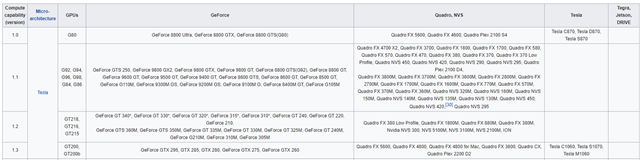

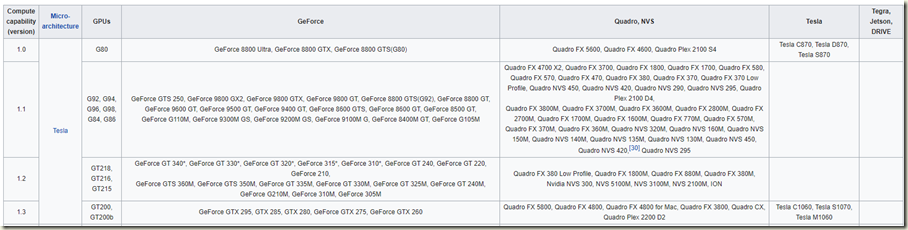

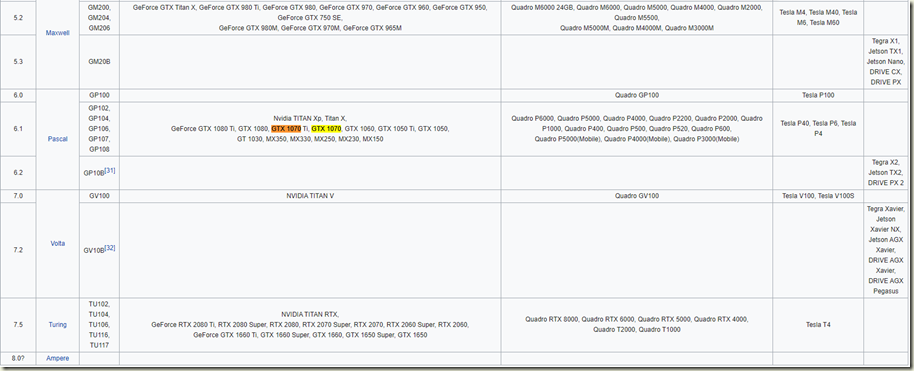

GPUs supported
Microsoft Windows [版本 10.0.18362.720]
(c) 2019 Microsoft Corporation. 著作權所有，並保留一切權利。
C:\Users\ryan wang>nvcc --version
nvcc: NVIDIA (R) Cuda compiler driver
Copyright (c) 2005-2018 NVIDIA Corporation
Built on Sat_Aug_25_21:08:04_Central_Daylight_Time_2018
Cuda compilation tools, release 10.0, V10.0.130
C:\Users\ryan wang>nvidia-smi
Tue Mar 17 15:38:05 2020
+-----------------------------------------------------------------------------+
| NVIDIA-SMI 442.19 Driver Version: 442.19 CUDA Version: 10.2 |
|-------------------------------+----------------------+----------------------+
| GPU Name TCC/WDDM | Bus-Id Disp.A | Volatile Uncorr. ECC |
| Fan Temp Perf Pwr:Usage/Cap| Memory-Usage | GPU-Util Compute M. |
|===============================+======================+======================|
| 0 GeForce GTX 1070 WDDM | 00000000:01:00.0 On | N/A |
| 0% 46C P8 10W / 200W | 672MiB / 8192MiB | 7% Default |
+-------------------------------+----------------------+----------------------+
+-----------------------------------------------------------------------------+
| Processes: GPU Memory |
| GPU PID Type Process name Usage |
|=============================================================================|
| 0 1188 C+G ... Files (x86)\Dropbox\Client\Dropbox.exe N/A |
| 0 2664 C+G ...6)\Google\Chrome\Application\chrome.exe N/A |
| 0 3252 C+G ...mmersiveControlPanel\SystemSettings.exe N/A |
| 0 6072 C+G ...DIA GeForce Experience\NVIDIA Share.exe N/A |
| 0 9868 C+G ...6.102.0_x64__kzf8qxf38zg5c\SkypeApp.exe N/A |
| 0 10096 C+G ...t_cw5n1h2txyewy\ShellExperienceHost.exe N/A |
| 0 11064 C+G ...11011.0_x64__8wekyb3d8bbwe\Video.UI.exe N/A |
| 0 12336 C+G ...hell.Experiences.TextInput.InputApp.exe N/A |
| 0 12620 C+G Insufficient Permissions N/A |
| 0 12872 C+G ...ost.CLR.x86\ServiceHub.Host.CLR.x86.exe N/A |
| 0 13592 C+G ...WindowsLiveWriter\WindowsLiveWriter.exe N/A |
| 0 14900 C+G ...1.0_x64__8wekyb3d8bbwe\WinStore.App.exe N/A |
| 0 15576 C+G ...osoft.LockApp_cw5n1h2txyewy\LockApp.exe N/A |
| 0 17144 C+G ...\2017\Enterprise\Common7\IDE\devenv.exe N/A |
| 0 17452 C+G ...ata\Local\LINE\bin\5.23.0.2134\LINE.exe N/A |
| 0 17608 C+G ...dows.Cortana_cw5n1h2txyewy\SearchUI.exe N/A |
| 0 20248 C+G C:\Windows\explorer.exe N/A |
| 0 20416 C+G ....135.0_x64__8wekyb3d8bbwe\YourPhone.exe N/A |
| 0 21060 C+G ...x64__8wekyb3d8bbwe\Microsoft.Photos.exe N/A |
+-----------------------------------------------------------------------------+

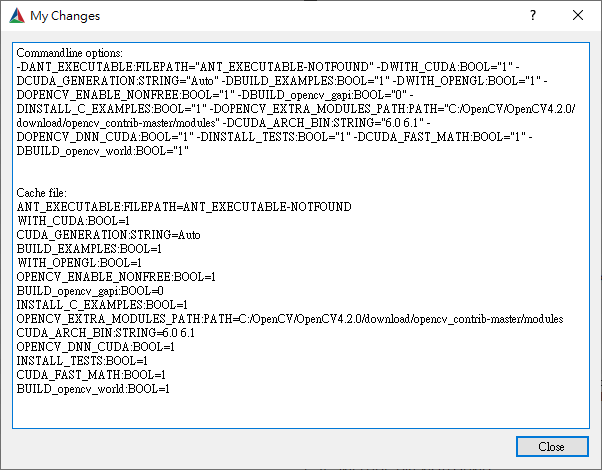

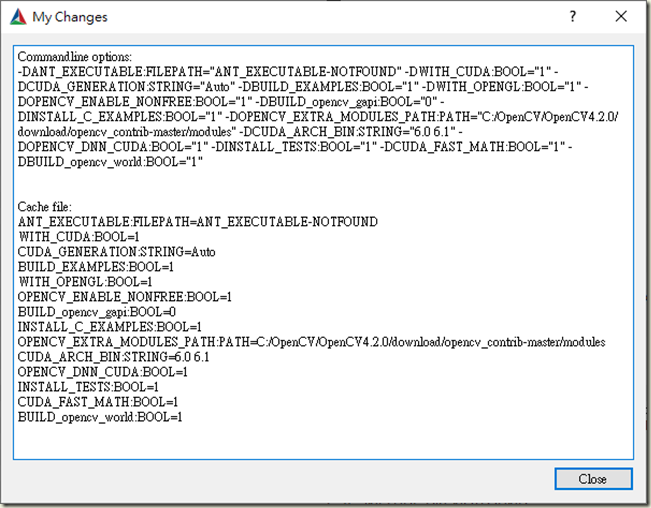

-DANT_EXECUTABLE:FILEPATH="ANT_EXECUTABLE-NOTFOUND" -DWITH_CUDA:BOOL="1" -DCUDA_GENERATION:STRING="Auto" -DBUILD_EXAMPLES:BOOL="1" -DWITH_OPENGL:BOOL="1" -DOPENCV_ENABLE_NONFREE:BOOL="1" -DBUILD_opencv_gapi:BOOL="0" -DINSTALL_C_EXAMPLES:BOOL="1" -DOPENCV_EXTRA_MODULES_PATH:PATH="C:/OpenCV/OpenCV4.2.0/download/opencv_contrib-master/modules" -DCUDA_ARCH_BIN:STRING="6.0 6.1" -DOPENCV_DNN_CUDA:BOOL="1" -DINSTALL_TESTS:BOOL="1" -DCUDA_FAST_MATH:BOOL="1" -DBUILD_opencv_world:BOOL="1"
References
1. OpenCV Error: Gpu API call (invalid device function ) in unknown function. #4849
2. Accelerating OpenCV 4 – build with CUDA 10.0, Intel MKL + TBB and python bindings in Windows
3. How to install OpenCV 4.2.0 with CUDA 10.0 in Ubuntu distro 18.04
