What is flyweight pattern?

1. Used when you need to create a large number  of similar objects

2. To reduce memory usage you share objects that are similar in some way rather than creating new ones

Now we are going to create a lot of rectangles with specific

Intrinsic State: Color <---- which all of the rectangle objects are going to share in order to get the

benifts metioned above

Extrinsic State: Size

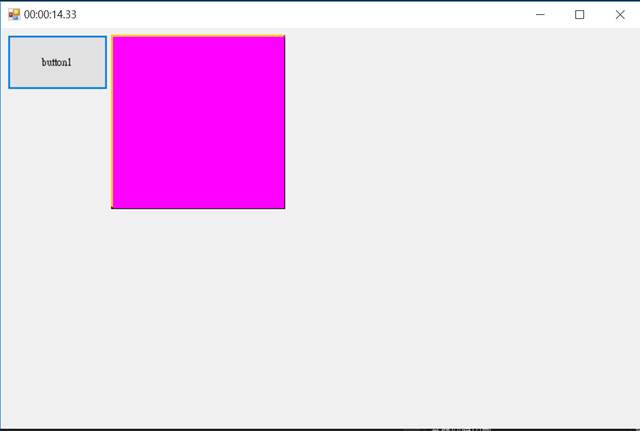

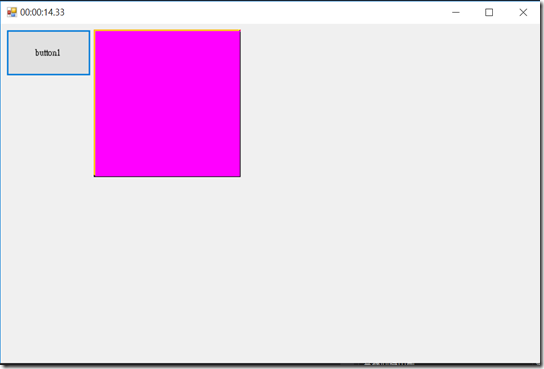

Before Having Used Flyweight Pattern:


   1: public class DrawRect
   2: {
   3:     Graphics g;
   4:     public DrawRect(Graphics g)
   5:     {
   6:         this.g = g;
   7:         for(int i=0; i<1000000; ++i)
   8:         {
   9:             Rectangle rect = new Rectangle(getRandX(), getRandY(), 200, 200);
  10:             g.FillRectangle(getRandColor(), rect);
  11:         }
  12:     }
  13:     public static Brush[] shapeColor = new Brush[] { Brushes.Orange, Brushes.Red, Brushes.Yellow, Brushes.Blue, Brushes.Pink, Brushes.Cyan, Brushes.Magenta, Brushes.Black, Brushes.Gray };
  14:
  15:     public Brush getRandColor()
  16:     {
  17:         Random rand = new Random((int)DateTime.Now.Ticks & 0x0000FFFF);
  18:         int randInt = rand.Next(9);
  19:         return shapeColor[randInt];
  20:     }
  21:     public static int getRandX()
  22:     {
  23:         Random rand = new Random((int)DateTime.Now.Ticks & 0x0000FFFF);
  24:         int randInt = rand.Next(4);
  25:         return randInt;
  26:     }
  27:     public static int getRandY()
  28:     {
  29:         Random rand = new Random((int)DateTime.Now.Ticks & 0x0000FFFF);
  30:         int randInt = rand.Next(4);
  31:         return randInt;
  32:     }
  33:
  34: }

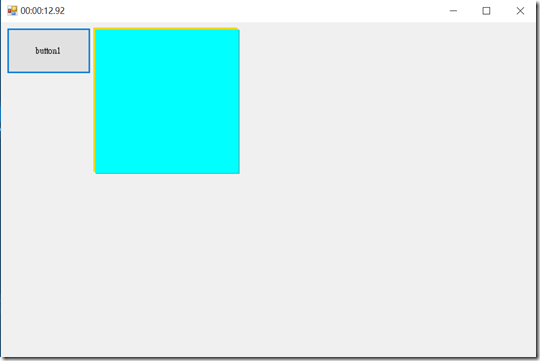

After Having Used Flyweight Pattern:


Create a rectangle factory that is able to share rectangle objects if their color are the same.

   1: public static class RectFactory
   2: {
   3:    static Dictionary<Brush, Rectangle> rectByColor = new Dictionary<Brush, Rectangle>();
   4:    public static Rectangle GetColorRectangle(Brush color)
   5:    {
   6:        Rectangle colorRect;
   7:
   8:        if (rectByColor.ContainsKey(color))
   9:            colorRect = rectByColor[color];
  10:        else
  11:        {
  12:            Rectangle rect = new Rectangle(DrawRect.getRandX(), DrawRect.getRandY(), 200, 200);
  13:            rectByColor.Add(color, rect);
  14:            colorRect = rectByColor[color];
  15:        }
  16:
  17:
  18:        return colorRect;
  19:    }
  20: }

Update DrawRect Class

   1: public DrawRect(Graphics g)
   2: {
   3:    this.g = g;
   4:    for(int i=0; i<1000000; ++i)
   5:    {
   6:        Brush color = getRandColor();
   7:        g.FillRectangle(color, RectFactory.GetColorRectangle(color));
   8:    }
   9: }







References:

1. Flyweight Design Pattern
