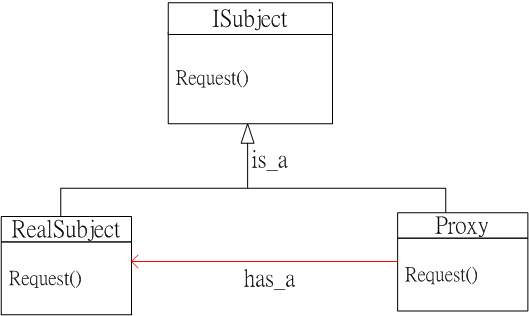

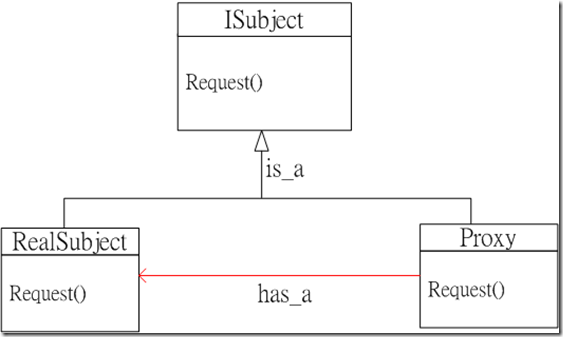

This tutorial is about proxy pattern, which is my thoghts after watching the tutorial created by Christopher Okhravi.

  1. Virtual Proxy

  2. Remote Proxy

  3. Protection Proxy

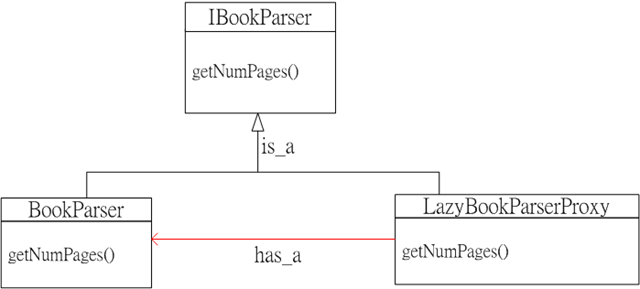

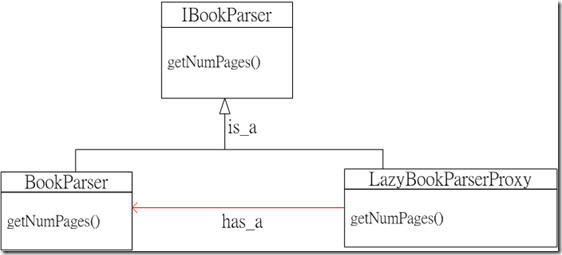

 Virtual Proxy:


IBookParser portion:

   1: interface IBookParser
   2: {
   3:     int getNumPages();
   4: }

BookParser portion:

   1: class BookParser : IBookParser
   2: {
   3:     string book;
   4:     public BookParser(String _book)
   5:     {
   6:         this.book = _book;
   7:     }
   8:
   9:     public int getNumPages()
  10:     {
  11:         return Convert.ToInt32(book);
  12:     }
  13: }

LazyBookParser portion:

   1: class LazyBookParser : IBookParser
   2: {
   3:     private IBookParser parser = null;
   4:     private string book;
   5:     public LazyBookParser(string _book)
   6:     {
   7:         this.book = _book;
   8:     }
   9:
  10:     public int getNumPages()
  11:     {
  12:         if (this.parser == null)
  13:             parser = new BookParser(this.book);
  14:         return this.parser.getNumPages();
  15:     }
  16: }

Console portion:

   1: static void Main(string[] args)
   2: {
   3:    string book = "1234";
   4:    LazyBookParser lazyBookParser = new LazyBookParser(book);
   5:    Console.WriteLine("{0}",lazyBookParser.getNumPages());
   6:    Console.ReadKey();
   7: }


Remote Proxy

Now we are going to introduce an application of proxy pattern, which has two parts: client and server portions.


IActualPrices portion

   1: namespace ActualPriceLib
   2: {
   3:     public interface IActualPrices
   4:     {
   5:         string GoldPrice { get; }
   6:         string SilverPrice { get; }
   7:         string DollarToRupee { get; }
   8:     }
   9: }

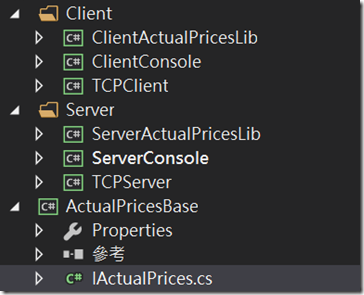

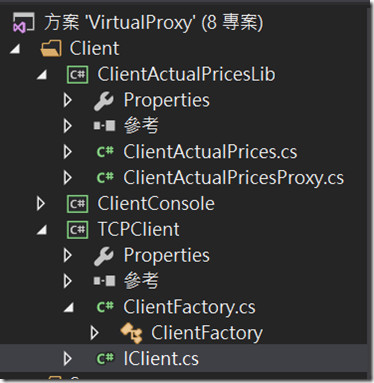

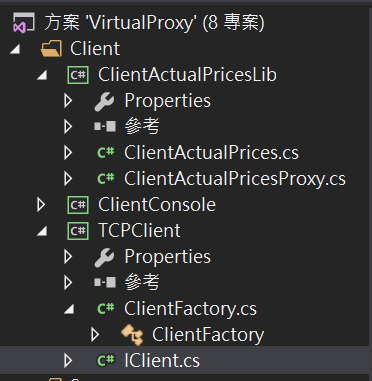

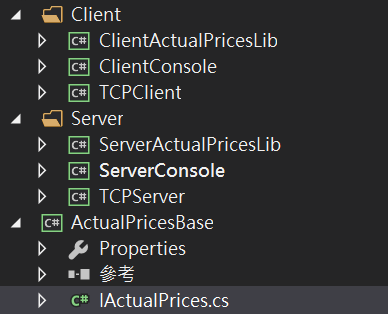

TCPClient Project


IClient portion:

It is an interface that describes a client side must have following methods, including

Connect to server, Close connection, Disconnect to server, send a message, and receive response from server.

   1: public interface IClient
   2: {
   3:    void Connect();
   4:    void Close();
   5:    void Disconnect();
   6:    void SendMessage(string cmd);
   7:    string ReceiveData();
   8: }

IClient portion:

Then Client class implements all methods of IClient as follows

   1: public class Client : IClient
   2: {
   3:    bool bConnected = false;
   4:    TcpClient client = null;
   5:    string ipAddress = "127.0.0.1";
   6:    int nPort = 9999;
   7:    string response = string.Empty;
   8:    public Client(string _ipAddress, int _nPort)
   9:    {
  10:        this.ipAddress = _ipAddress;
  11:        this.nPort = _nPort;
  12:    }
  13:
  14:    public void Connect()
  15:    {
  16:        if (client == null) client = new TcpClient();
  17:        while (!client.Connected)
  18:        {
  19:            try
  20:            {
  21:                client.Connect(ipAddress, nPort);
  22:            }
  23:            catch(Exception ex)
  24:            {
  25:                Console.WriteLine("server connection failed");
  26:            }
  27:        }
  28:
  29:         //while (!client.Connected)
  30:         bConnected = client.Connected;
  31:    }
  32:    public void Close()
  33:    {
  34:        if (client.Connected) client.Close();
  35:    }
  36:    public void Disconnect()
  37:    {
  38:        if(client!=null)   client.Dispose();
  39:        client = null;
  40:    }
  41:    public string ReceiveData()
  42:    {
  43:        string result = string.Empty;
  44:        Stream stream = client.GetStream();
  45:
  46:        const int len = 100;
  47:        byte[] br = new byte[len];
  48:        int k = stream.Read(br, 0, len);
  49:
  50:        for (int i = 0; i < k; i++)
  51:        {
  52:            result += Convert.ToChar(br[i]);
  53:        }
  54:        Close();
  55:        Disconnect();
  56:        return result;
  57:    }
  58:    public void SendMessage(string cmd)
  59:    {
  60:        if (!bConnected) Connect();
  61:        Stream stream = client.GetStream();
  62:
  63:
  64:
  65:        ASCIIEncoding asen = new ASCIIEncoding();
  66:        byte[] ba = asen.GetBytes(cmd.ToCharArray());
  67:        stream.Write(ba, 0, ba.Length);
  68:
  69:    }
  70: }

In order to provide another way to send message from client to server, we build a static class named ClientFactory.

ClientFactory portion:

   1: public static class ClientFactory
   2: {
   3:    public static Client client = null;
   4:    public static string SendMessage(string input)
   5:    {
   6:        client = CreateClient();
   7:        client.Connect();
   8:        client.SendMessage(input);
   9:        return client.ReceiveData();
  10:    }
  11:    private static Client CreateClient()
  12:    {
  13:        if (client == null) client = new Client("127.0.0.1", 9999);
  14:        return client;
  15:    }
  16: }

Now we are going to introduce ClientActualPrices class, which inherits IActualPrices

ClientActualPrices portion:

   1: using TCPClient;
   2: namespace ActualPriceLib
   3: {
   4:     class ClientActualPrices : IActualPrices
   5:     {
   6:         public string GoldPrice
   7:         {
   8:             get
   9:             {
  10:                 return ClientFactory.SendMessage("g");
  11:             }
  12:         }
  13:         public string SilverPrice
  14:         {
  15:             get
  16:             {
  17:                 return ClientFactory.SendMessage("s");
  18:             }
  19:         }
  20:         public string DollarToRupee
  21:         {
  22:             get
  23:             {
  24:                 return ClientFactory.SendMessage("d");
  25:             }
  26:         }
  27:     }
  28: }

ClientActualPricesProxy portion:

   1: public class ClientActualPricesProxy : IActualPrices
   2: {
   3:     ClientActualPrices actualPrices = new ClientActualPrices();
   4:
   5:     public string GoldPrice
   6:     {
   7:         get
   8:         {
   9:             return actualPrices.GoldPrice;
  10:         }
  11:     }
  12:
  13:     public string SilverPrice
  14:     {
  15:         get
  16:         {
  17:             return actualPrices.SilverPrice;
  18:         }
  19:     }
  20:
  21:     public string DollarToRupee
  22:     {
  23:         get
  24:         {
  25:             return actualPrices.DollarToRupee;
  26:         }
  27:     }
  28: }

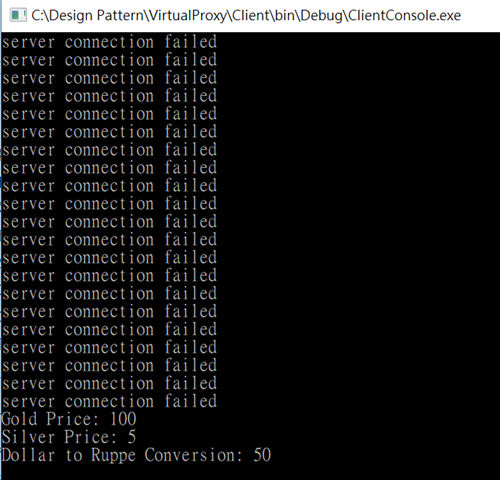

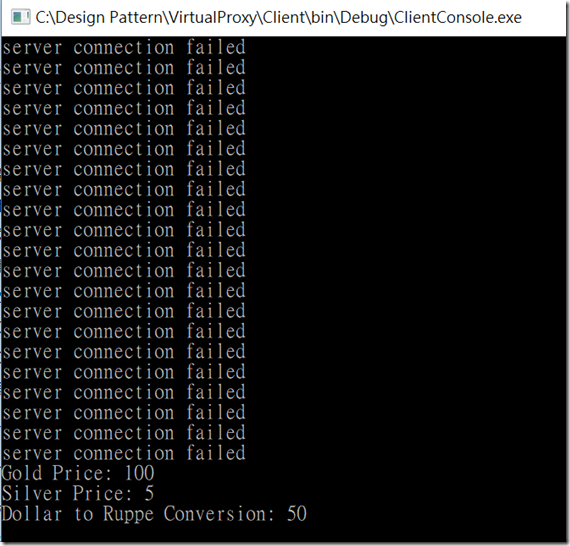

ClientConsole portion:

   1: static void Main(string[] args)
   2: {
   3:     IActualPrices proxy = new ClientActualPricesProxy();
   4:
   5:     Console.WriteLine("Gold Price: {0} ", proxy.GoldPrice);
   6:     Console.WriteLine("Silver Price: {0}", proxy.SilverPrice);
   7:     Console.WriteLine("Dollar to Ruppe Conversion: {0}", proxy.DollarToRupee);
   8:
   9:
  10:     Console.ReadKey();
  11: }


IServer portion:

   1: public interface IServer
   2: {
   3:    void Start();
   4: }

ServerActualPrices portion:

   1: public class ServerActualPrices : IActualPrices
   2: {
   3:    public string GoldPrice
   4:    {
   5:        get
   6:        {
   7:            // This value should come from a DB typically
   8:            return "100";
   9:        }
  10:    }
  11:
  12:    public string SilverPrice
  13:    {
  14:        get
  15:        {
  16:            // This value should come from a DB typically
  17:            return "5";
  18:        }
  19:    }
  20:
  21:    public string DollarToRupee
  22:    {
  23:        get
  24:        {
  25:            // This value should come from a DB typically
  26:            return "50";
  27:        }
  28:    }
  29: }

ServerActualPricesProxy portion:

   1: public class ServerActualPricesProxy:IActualPrices
   2: {
   3:     ServerActualPrices serverActualPrices = new ServerActualPrices();
   4:
   5:     public string GoldPrice
   6:     {
   7:         get
   8:         {
   9:             return serverActualPrices.GoldPrice;
  10:         }
  11:     }
  12:
  13:     public string SilverPrice
  14:     {
  15:         get
  16:         {
  17:             return serverActualPrices.SilverPrice;
  18:         }
  19:     }
  20:
  21:     public string DollarToRupee
  22:     {
  23:         get
  24:         {
  25:             return serverActualPrices.DollarToRupee;
  26:         }
  27:     }
  28: }

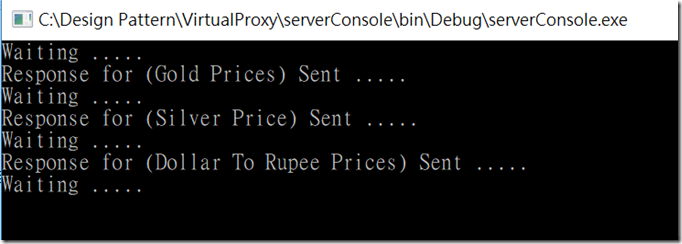

Server portion:

   1: public class Server:IServer
   2: {
   3:     TcpListener listener = null;
   4:     string ipAddress = "127.0.0.1";
   5:     int nPort = 9999;
   6:     Dictionary<string, string> actualPrices = new Dictionary<string, string>();
   7:     Dictionary<string, string> actualPricesInfo = new Dictionary<string, string>();
   8:     public Server(string _ipAddress, int _nPort)
   9:     {
  10:         this.ipAddress = _ipAddress;
  11:         this.nPort = _nPort;
  12:     }
  13:     private void InitPrices()
  14:     {
  15:         if(actualPrices.Count == 0)
  16:         {
  17:             IActualPrices proxy = new ServerActualPricesProxy();
  18:             actualPrices.Add("g", proxy.GoldPrice);
  19:             actualPrices.Add("s", proxy.SilverPrice);
  20:             actualPrices.Add("d", proxy.DollarToRupee);
  21:         }
  22:         if(actualPricesInfo.Count == 0)
  23:         {
  24:             actualPricesInfo.Add("g", "Gold Prices");
  25:             actualPricesInfo.Add("s", "Silver Price");
  26:             actualPricesInfo.Add("d", "Dollar To Rupee Prices");
  27:         }
  28:     }
  29:     public void Start()
  30:     {
  31:         InitPrices();
  32:         IPAddress ip = IPAddress.Parse(this.ipAddress);
  33:         this.listener = new TcpListener(ip, this.nPort);
  34:         while (true)
  35:         {
  36:             listener.Start();
  37:             Console.WriteLine("Waiting .....");
  38:             Socket s = listener.AcceptSocket();
  39:
  40:             byte[] b = new byte[100];
  41:
  42:             int count = s.Receive(b);
  43:
  44:             string input = string.Empty;
  45:
  46:             for (int i = 0; i < count; i++)
  47:             {
  48:                 input += Convert.ToChar(b[i]);
  49:             }
  50:
  51:             string returnValue = string.Empty;
  52:             string message = string.Empty;
  53:             returnValue = actualPrices[input];
  54:
  55:             ASCIIEncoding asen = new ASCIIEncoding();
  56:             s.Send(asen.GetBytes(returnValue));
  57:
  58:             s.Close();
  59:             listener.Stop();
  60:             Console.WriteLine("Response for ({0}) Sent .....", actualPricesInfo[input]);
  61:         }
  62:     }
  63: }

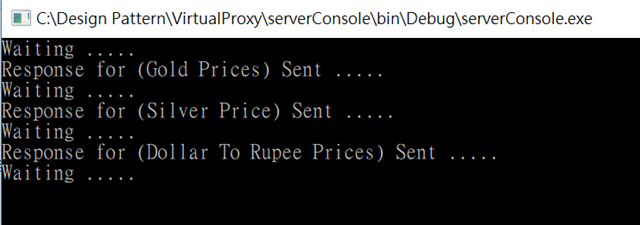

Console portion:

   1: static void Main(string[] args)
   2: {
   3:    ServerFactory.CreateServer().Start();
   4:
   5: }
