樹梅派3 目前直接內建WIFI和藍芽

藍芽配對設定

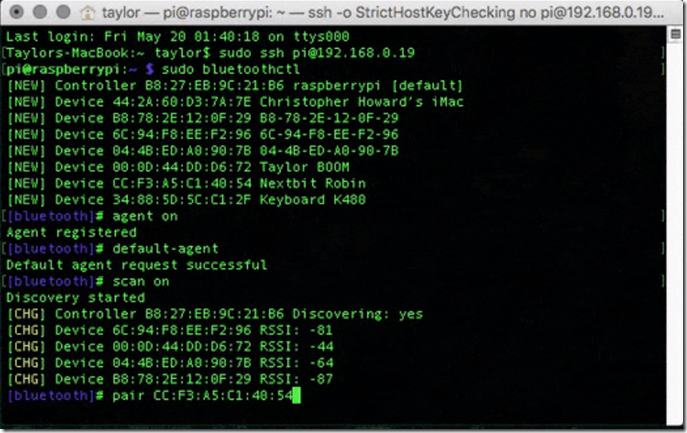

> sudo bluetoothctl

> agent on

> default-agent

> scan on

> pair xx.xx.xx.xx.xx.xx

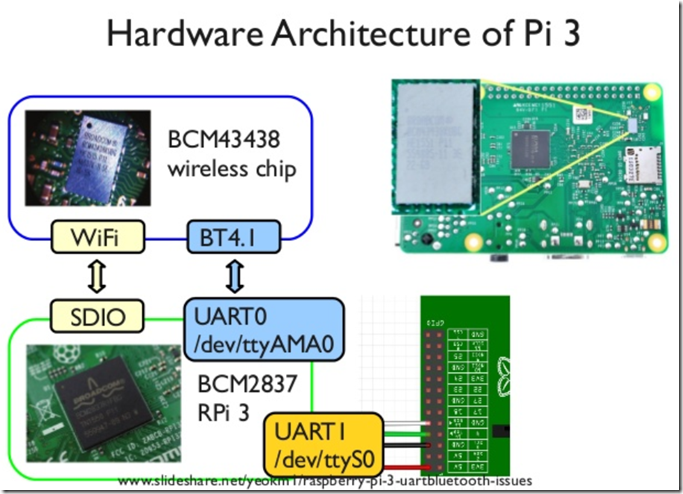

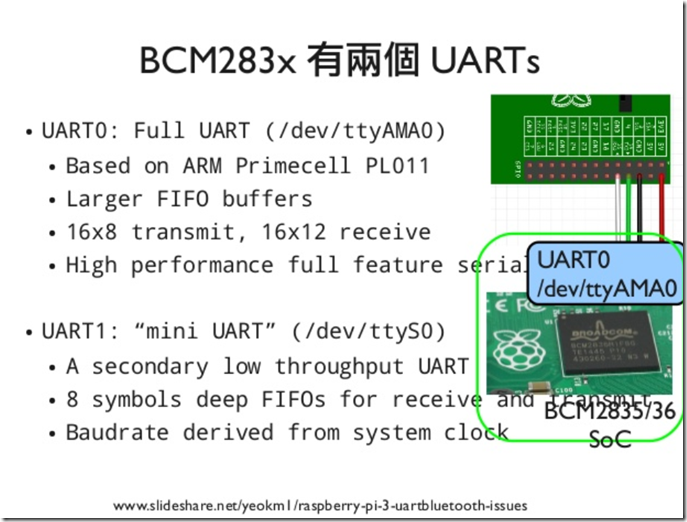

UART0: /dev/ttyAMA0 BT4.1

UART0 可以寫串列埠傳輸方式，以配對完成藍芽進行資料交換

UART1: /dev/ttyS0















1. https://www.cnet.com/how-to/how-to-setup-bluetooth-on-a-raspberry-pi-3/

2. How do I make serial work on the Raspberry Pi3

3. http://wiringpi.com/

4. Serial Communication C/C++

5. https://www.cnet.com/how-to/how-to-setup-bluetooth-on-a-raspberry-pi-3/

6. http://unprofessional00.pixnet.net/blog/post/324060975-%5Braspberry--pi%5Dpi3-%E8%97%8D%E8%8A%BD%E8%A8%AD%E5%AE%9A-%E9%80%A3%E6%8E%A5%E8%97%8D%E8%8A%BD%E9%8D%B5%E7%9B%A4%E5%8F%8A%E6%BB%91%E9%BC%A0

7. https://www.slideshare.net/raspberrypi-tw/raspberry-pi-iot-bluetooth

8. http://www.uugear.com/portfolio/bluetooth-communication-between-raspberry-pi-and-arduino/

9. Raspberry pi3: C++ serial communication not working properly (Raspberry pi was working!)
