   1: package Basic;

   2:

   3: import java.awt.EventQueue;

   4: import java.awt.image.BufferedImage;

   5:

   6: import javax.swing.ImageIcon;

   7: import javax.swing.JFrame;

   8: import javax.swing.JOptionPane;

   9: import javax.swing.JSlider;

  10: import javax.swing.JLabel;

  11: import javax.swing.event.ChangeListener;

  12: import javax.swing.event.ChangeEvent;

  13:

  14: import org.opencv.core.Core;

  15: import org.opencv.core.Mat;

  16: import org.opencv.imgcodecs.Imgcodecs;

  17: import org.opencv.imgproc.Imgproc;

  18:

  19: public class AdjContrastDemo {

  20:     static{System.loadLibrary(Core.NATIVE_LIBRARY_NAME);}

  21:     private JFrame frmContrastAdjustment;

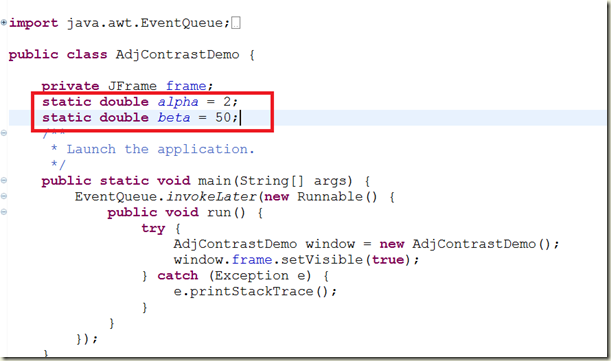

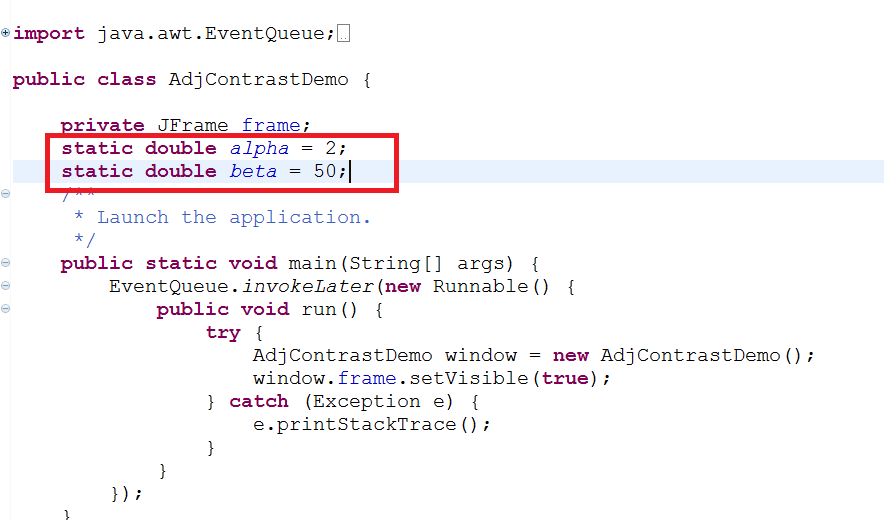

  22:     static double alpha = 1;

  23:     static double beta = 50;

  24:     JSlider slider;

  25:     JSlider slider_1;

  26:     JLabel lblAlphaVal;

  27:     JLabel lblBetaVal;

  28:     JLabel lblImage;

  29:     static Mat imgSrc;

  30:     static Mat imgG = new Mat();

  31:     static Mat imgDst = new Mat();

  32:     /**

  33:      * Launch the application.

  34:      */

  35:     public static void main(String[] args) {

  36:         EventQueue.invokeLater(new Runnable() {

  37:             public void run() {

  38:                 try {

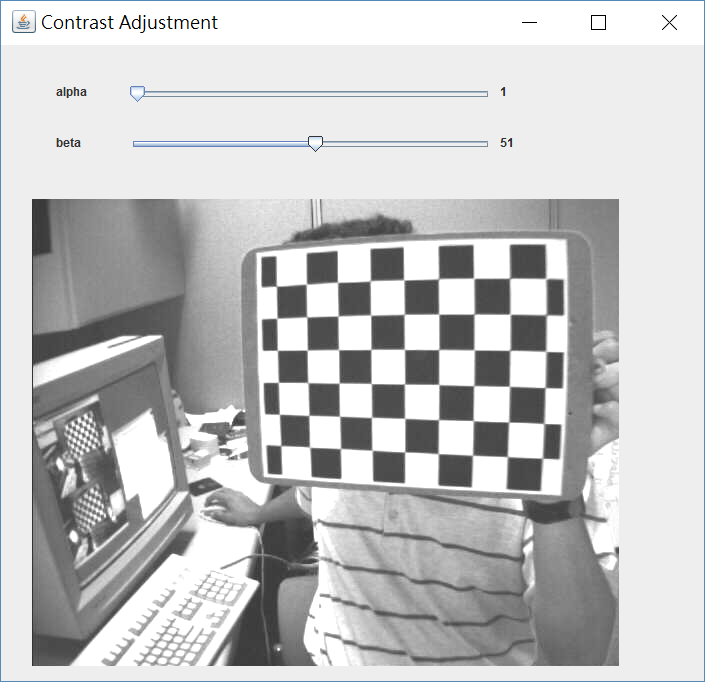

  39:                     //imgSrc = Imgcodecs.imread("C:\\OpenCV\\images\\left01.jpg");

  40:                     imgSrc = Imgcodecs.imread("C:\\OpenCV\\images\\lena.jpg");

  41:                     if(imgSrc.empty())

  42:                     {

  43:                         JOptionPane.showMessageDialog(null, "無法讀取圖片","警告",

  44:                                 JOptionPane.WARNING_MESSAGE);

  45:                     }

  46:                     if(imgSrc.channels()==3)

  47:                         imgSrc.copyTo(imgG);

  48:                         //Imgproc.cvtColor(imgSrc, imgG, Imgproc.COLOR_BGR2GRAY);

  49:                     else

  50:                         imgSrc.copyTo(imgG);

  51:                     //imgDst = new Mat();

  52:                     AdjContrastDemo window = new AdjContrastDemo();

  53:                     window.frmContrastAdjustment.setVisible(true);

  54:                 } catch (Exception e) {

  55:                     e.printStackTrace();

  56:                 }

  57:             }

  58:         });

  59:     }

  60:

  61:     /**

  62:      * Create the application.

  63:      */

  64:     public AdjContrastDemo() {

  65:         initialize();

  66:     }

  67:

  68:     /**

  69:      * Initialize the contents of the frame.

  70:      */

  71:     private void initialize() {

  72:         frmContrastAdjustment = new JFrame();

  73:         frmContrastAdjustment.setTitle("Contrast Adjustment");

  74:         frmContrastAdjustment.setBounds(100, 100, 725, 692);

  75:         frmContrastAdjustment.setDefaultCloseOperation(JFrame.EXIT_ON_CLOSE);

  76:         frmContrastAdjustment.getContentPane().setLayout(null);

  77:

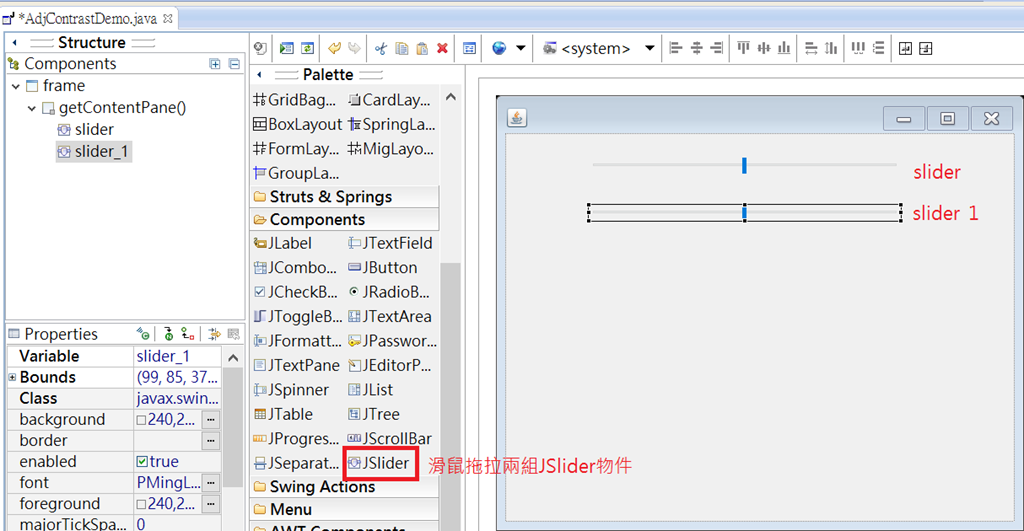

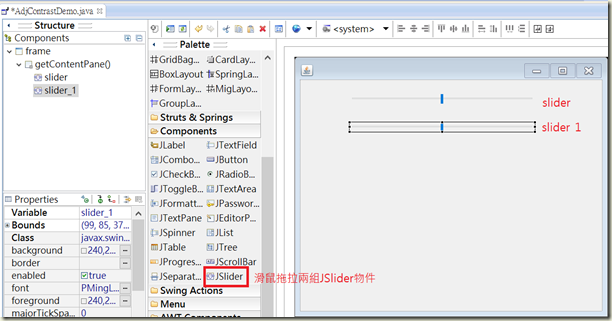

  78:         slider = new JSlider();

  79:         slider.setValue((int)alpha);

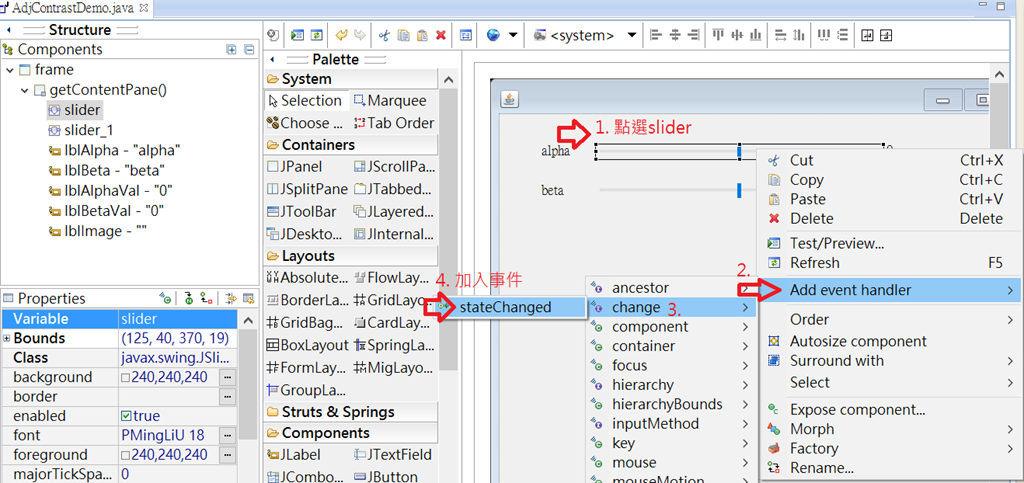

  80:         slider.addChangeListener(new ChangeListener() {

  81:             public void stateChanged(ChangeEvent arg0) {

  82:                  lblAlphaVal.setText(slider.getValue()+"");

  83:                  alpha = slider.getValue();

  84:                  AdjustContrast();

  85:             }

  86:         });

  87:

  88:         slider.setBounds(125, 40, 370, 19);

  89:         frmContrastAdjustment.getContentPane().add(slider);

  90:

  91:         slider_1 = new JSlider();

  92:         slider_1.setValue((int)beta);

  93:         slider_1.addChangeListener(new ChangeListener() {

  94:             public void stateChanged(ChangeEvent arg0) {

  95:                  lblBetaVal.setText(slider_1.getValue()+"");

  96:                  beta = slider_1.getValue();

  97:                  AdjustContrast();

  98:             }

  99:         });

 100:         slider_1.setBounds(125, 90, 370, 19);

 101:         frmContrastAdjustment.getContentPane().add(slider_1);

 102:

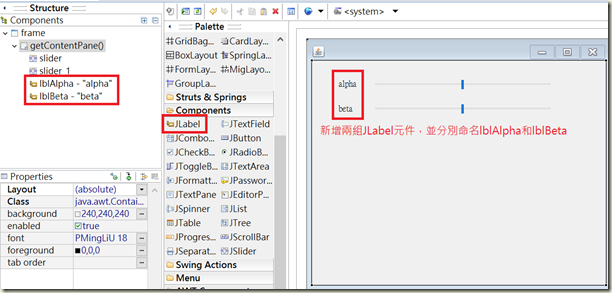

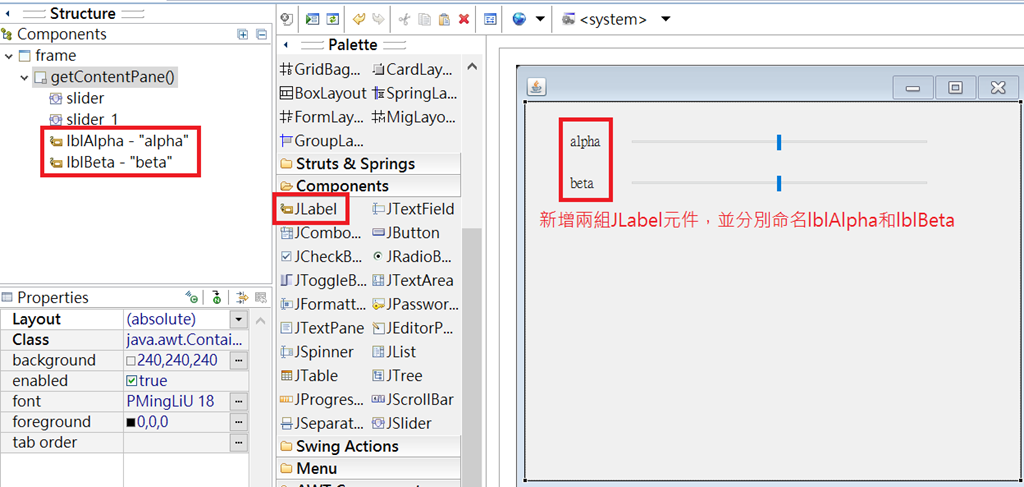

 103:         JLabel lblAlpha = new JLabel();

 104:         lblAlpha.setText("alpha");

 105:         lblAlpha.setBounds(55, 29, 71, 36);

 106:         frmContrastAdjustment.getContentPane().add(lblAlpha);

 107:

 108:         JLabel lblBeta = new JLabel();

 109:         lblBeta.setText("beta");

 110:         lblBeta.setBounds(55, 80, 71, 36);

 111:         frmContrastAdjustment.getContentPane().add(lblBeta);

 112:

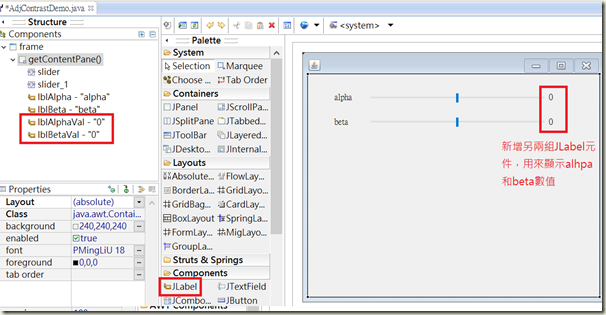

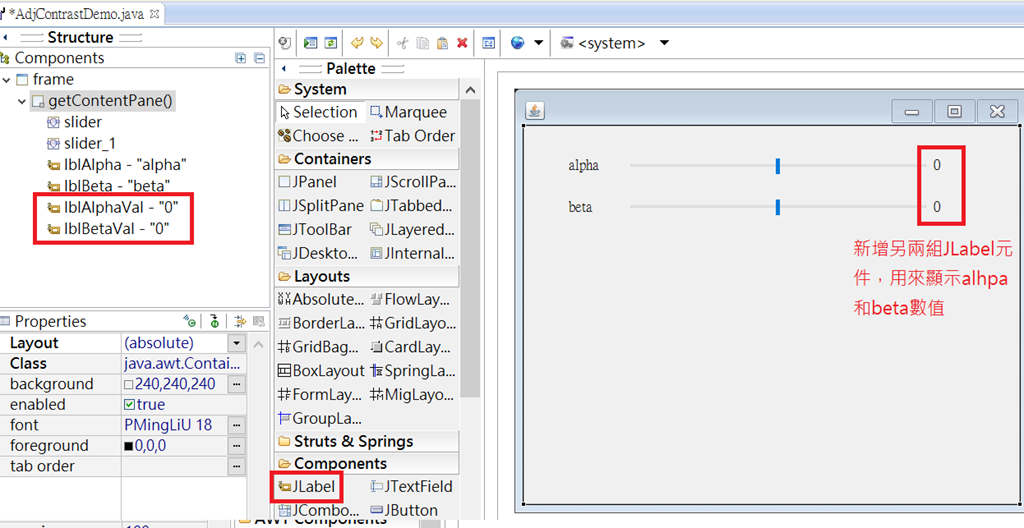

 113:         lblAlphaVal = new JLabel("0");

 114:         lblAlphaVal.setBounds(499, 29, 55, 36);

 115:         lblAlphaVal.setText(""+alpha);

 116:         frmContrastAdjustment.getContentPane().add(lblAlphaVal);

 117:

 118:         lblBetaVal = new JLabel("0");

 119:         lblBetaVal.setBounds(499, 80, 55, 36);

 120:         lblBetaVal.setText(""+beta);

 121:         frmContrastAdjustment.getContentPane().add(lblBetaVal);

 122:

 123:         lblImage = new JLabel("");

 124:         lblImage.setBounds(31, 154, 587, 467);

 125:         frmContrastAdjustment.getContentPane().add(lblImage);

 126:     }

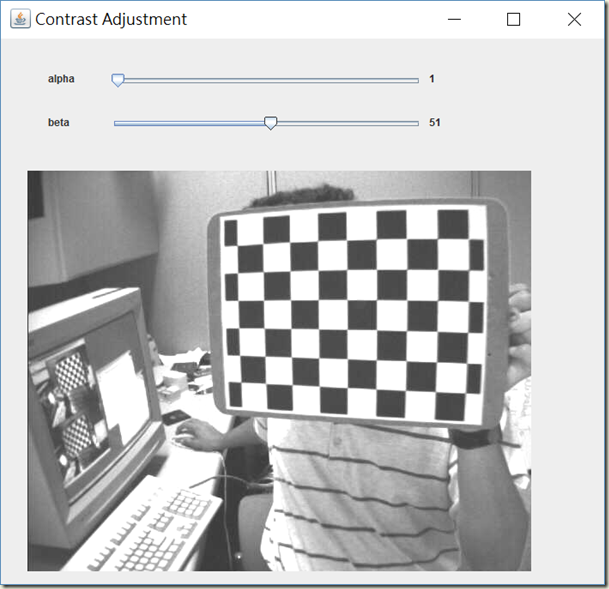

 127:     public void AdjustContrast()

 128:     {

 129:         imgG.convertTo(imgDst, -1, alpha, beta);

 130:         BufferedImage bufImg = matToBufferedImage(imgDst);

 131:         lblImage.setIcon(new ImageIcon(bufImg));

 132:     }

 133:     public BufferedImage matToBufferedImage(Mat matrix){

 134:         int cols = matrix.cols();

 135:         int rows = matrix.rows();

 136:         int elemSize = (int)matrix.elemSize();

 137:         byte[] data = new byte[cols*rows*elemSize];

 138:         if(matrix.channels()==3)

 139:             Imgproc.cvtColor(matrix, matrix, Imgproc.COLOR_BGR2RGB);

 140:         matrix.get(0, 0, data);

 141:         BufferedImage bufImg = null;

 142:         switch(matrix.channels())

 143:         {

 144:         case 1:

 145:             bufImg = new BufferedImage(cols, rows, BufferedImage.TYPE_BYTE_GRAY);

 146:             break;

 147:         case 3:

 148:             bufImg = new BufferedImage(cols,rows, BufferedImage.TYPE_3BYTE_BGR);

 149:             break;

 150:         }

 151:         bufImg.getRaster().setDataElements(0, 0, cols, rows, data);

 152:         return bufImg;

 153:     }

 154: }

   1: public BufferedImage matToBufferedImage(Mat matrix){

   2:         int cols = matrix.cols();

   3:         int rows = matrix.rows();

   4:         int elemSize = (int)matrix.elemSize();

   5:         byte[] data = new byte[cols*rows*elemSize];

   6:         if(matrix.channels()==3)

   7:             Imgproc.cvtColor(matrix, matrix, Imgproc.COLOR_BGR2RGB);

   8:         matrix.get(0, 0, data);

   9:         BufferedImage bufImg = null;

  10:         switch(matrix.channels())

  11:         {

  12:         case 1:

  13:             bufImg = new BufferedImage(cols, rows, BufferedImage.TYPE_BYTE_GRAY);

  14:             break;

  15:         case 3:

  16:             bufImg = new BufferedImage(cols,rows, BufferedImage.TYPE_3BYTE_BGR);

  17:             break;

  18:         }

  19:         bufImg.getRaster().setDataElements(0, 0, cols, rows, data);

  20:         return bufImg;

  21:     }

   1: public void AdjustContrast()

   2: {

   3:     imgG.convertTo(imgDst, -1, alpha, beta);

   4:     BufferedImage bufImg = matToBufferedImage(imgDst);

   5:     lblImage.setIcon(new ImageIcon(bufImg));

   6: }
