PTZ Manufacturer GV-System PTZ Option
1. PTZ in I/O PTZ in I/O
2. Canon VC-C3 VCC3
3. Canon VC-C4 VCC4
4. Pelco/P-version Protocol Pelco Dome
5. Pelco/D-version Protocol Pelco Dome
6. Ademco (Juptier) Ademco (Juptier)
7. LiLin PIH-7000 (17X) Lilin (PIH)
8. LiLin PIH-7600 (22X) Lilin (PIH)
9. LiLin PIH-7600PL Lilin (PIH)
10. LiLin PIH-7625 (25X) Lilin (PIH)
11. DiGi Dome (DOH-240) DongYang Dome (DOH-240) / D-Max Dome
12. DynaColor D-7720 DynaColor (D-7720/D7722) / DynaColor Dome
13. DynaColor D-7722 DynaColor Dome
14. Sony EVI-D100 Sony (EVI-D100)
15. Sony EVI-D100T Sony (EVI-D100)
16. Panasonic WV-CS850 Panasonic (WV-CS850)
17. Panasonic WV-CS854 Panasonic (WV-CS850)
18. Mintron (54G2AHN/P) Mintron (54G2AHN/P)
19. Kalatel Cyber Dome with KTD-312 Kalatel Cyber Dome
20. Samsung (SPD-1600) Samsung (SPD-1600)
21. Sensormatic (Ultra IV) Sensormatic (Ultra IV)
22. Samsung (SCC-641) Samsung (SCC-641/643)
23. Samsung (SCC-643) Samsung (SCC-641/643)
24. Hi-Sharp (HS-CC600) Pelco Dome Pelco-P protocol, Baud Rate 9600
25. Elitar (EL-PT830) Pelco Dome Pelco-D protocol, Baud Rate 2400
26. JEC (ETXK8000) Pelco Dome / JEC Dome Pelco-P protocol, Baud Rate 4800 not supported: AUX, Frame Scan and Random Scan
27. MZC (IR6018DN) Pelco Dome Pelco-P and Pelco-D protocol not supported: Home, Focus In, Focus Out, Aux, Auto(Auto Scan, Frame Scan, Random Scan) and PTZ Speed
28. YOKO (YK-2E00) Pelco Dome Pelco-P and Pelco-D protocol not supported: Aux, Frame Scan, Random Scan
29. Bosch (TC700/8560) Bosch (TC700/8560)
30. CBC GANZ (ZC-S120 Series) CBC GANZ (ZC-S120 Series)
31. Chiper (V9KRV) Chiper (V9KRV)
32. Direct Perception (PTU-D46) Direct Perception (PTU Series)
33. D-Max version Protocol D-Max Dome
34. DynaColor version Protocol DynaColor Dome
35. ELBEX (Matrix/1000) ELBEX (Matrix/1000)
36. GKB (SPD-22I) GKB (SPD-22I)
37. JEC version Protocol JEC Dome
38. JVC (TK-S576B/S655) JVC (TK-S576B/S655)
39. Kenko (DMP23-H1) Kenko (DMP23-H1)
40. Kampro Technology (K-ZC23) Kampro Technology (K-ZC23)
41. MESSOA (SDS600 Series) MESSOA (SDS600 Series)
42. Minking version Protocol Minking Dome
43. Pelco (Spectra III) Pelco (Spectra III)
44. SAE (DR-E588) SAE (DR-E588)
45. TOA (CC551) TOA (CC551)
46. YAAN version Protocol YAAN Dome
47. Kampro 230X CCD Zoom camera (GE security Pelco Dome Pelco-P and Pelco-D protocol not supported: Pan, Tilt, Auto(Auto Scan, Frame Scan, Random Scan) and PTZ Speed
48. HiSharp HS-CC610A Pelco P No function--Frame/Random Scan
U,D,L,R,H----OK
Zoom In/Out----Ok
Preset Go/Set----OK
Auto Scan----OK
49. Videotrec (SSI) (VPTZ-500 / 1000) Pelco-P/D Pelco-D: no support for four patterns, only one
50. EverFocus (EPTZ 1000/500)
51. HiSharp HS-CC610 Pelco-P/D
52. LG (LPT-OS553HQ)
53. NanWang (NVD 2300PNT)
54. Samsung(SPD-3300)
55. VIDO (AU-G60-B23) VIDO
Note: This list is limited for the original models from the company mentioned above. Any third-party camera models may or may not work properly with GV-System even claiming of the same protocol compatibility. GeoVision takes no responsibility of such incompatibility.
============================================================

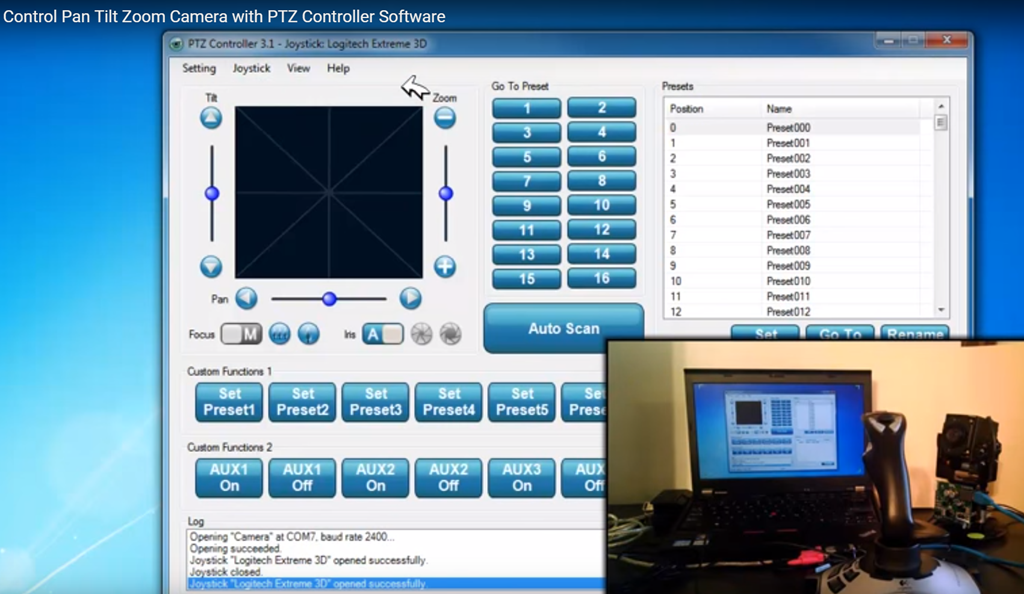

Pan Tilt Zoom Control by Software with Keyboard or Joystick [2]
============================================================
For use with PC or other devices running usersupplied video controller software
Provides up to 16 Bi-Phase control code outputs
Each output operates up to 8 devices in a daisy chain
Compact design
============================================================
系統安裝架構1 [12]

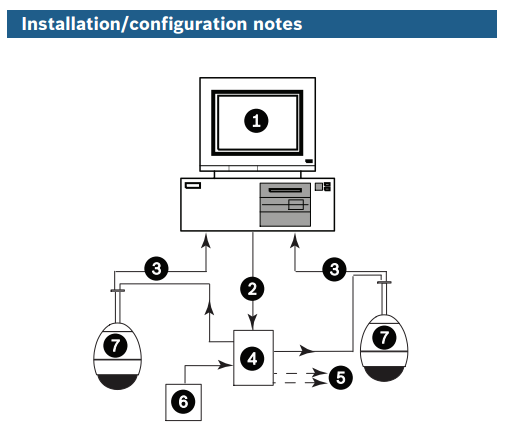

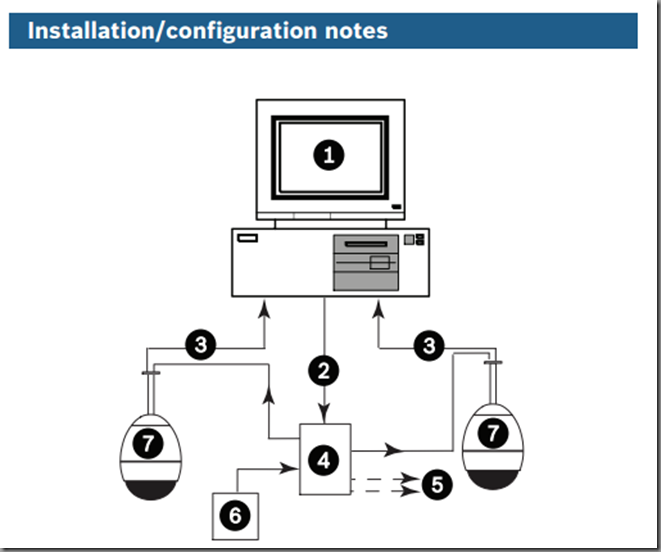

1 Typical PC with Video Capture Card(s) or Other Device Running User-supplied Video/Control Software
2 RS-232 Data
3 Video Signal

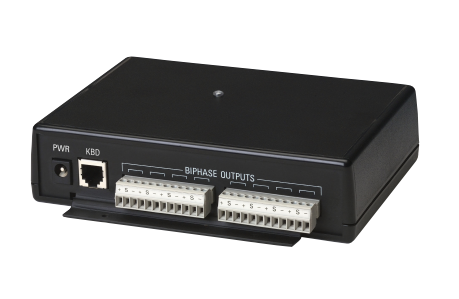

4 LTC 8786 Converter
5 Up to 16 Bi-Phase Control Code Outputs
6 LTC 8786 Power Supply Adapter
7 Typical AutoDome Cameras or Allegiant Receiver/Driver Units
============================================================

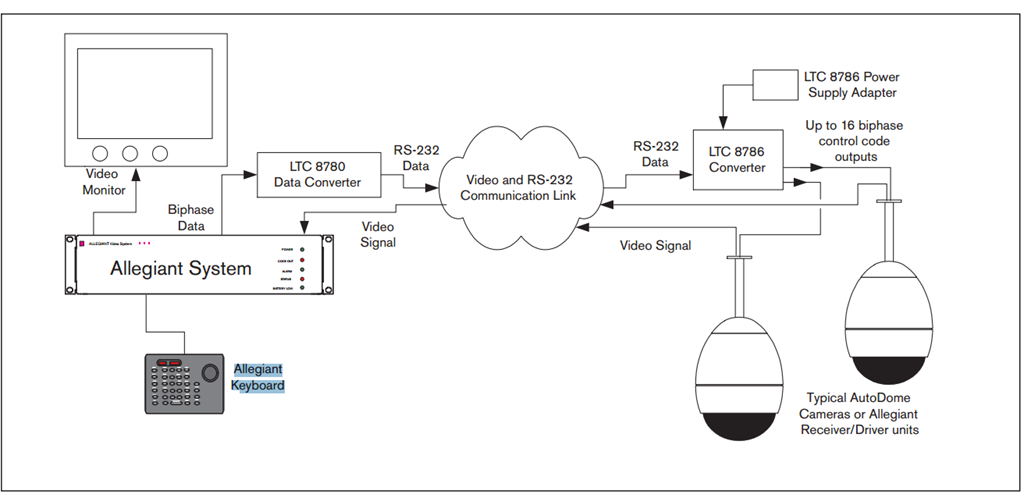

系統安裝架構2 [12]

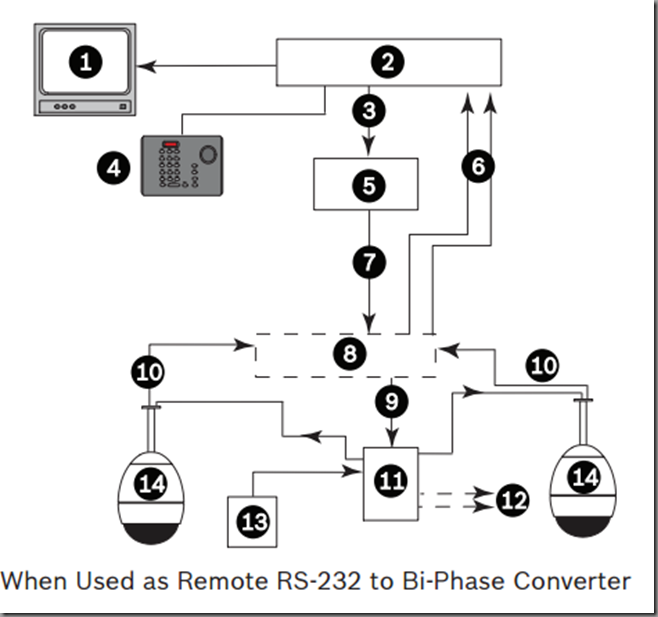

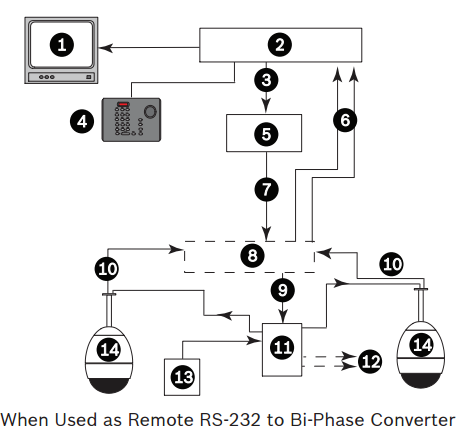

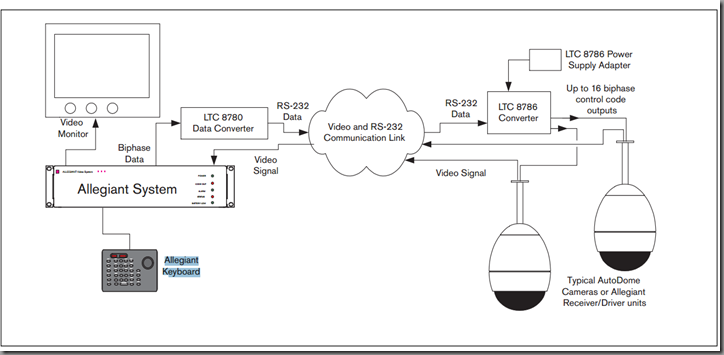

1 Video Monitor
2 Allegiant System
3 Bi-Phase Data
4 Allegiant Keyboard
5 LTC 8780 Data Converter 6 Video Signal 7 RS-232 Data 8 Video and RS-232 Communication Link
9 RS-232 Data
10 Video Signal

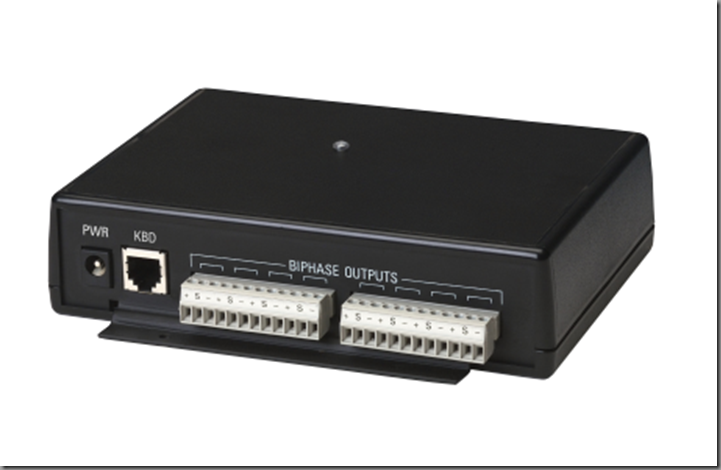

11 LTC 8786 Converter
12 Up to 16 Bi-Phase control code outputs
13 LTC 8786 Power Supply Adapter
14 Typical AutoDome Cameras or Allegiant Receiver/Driver Units
=================================================================

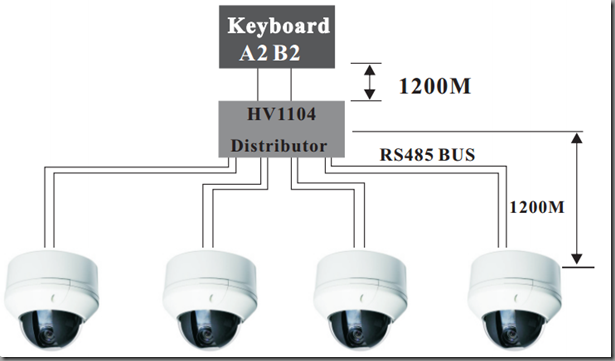

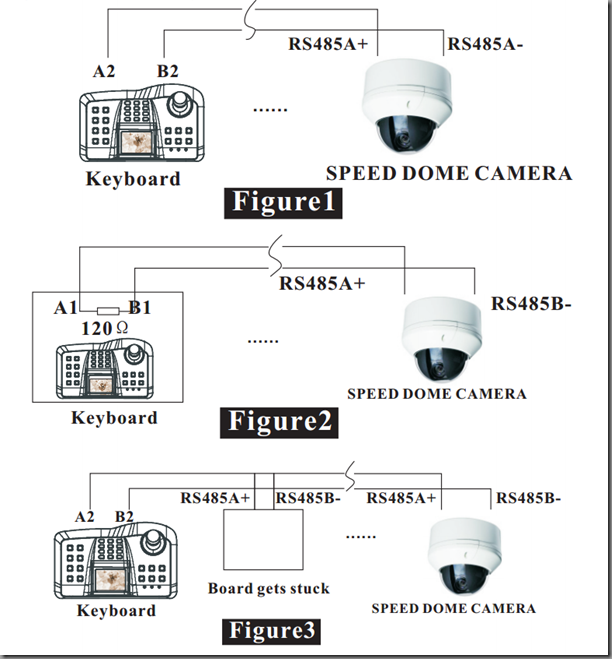

Keyboard控制: 單台串接 [13]
=================================================================

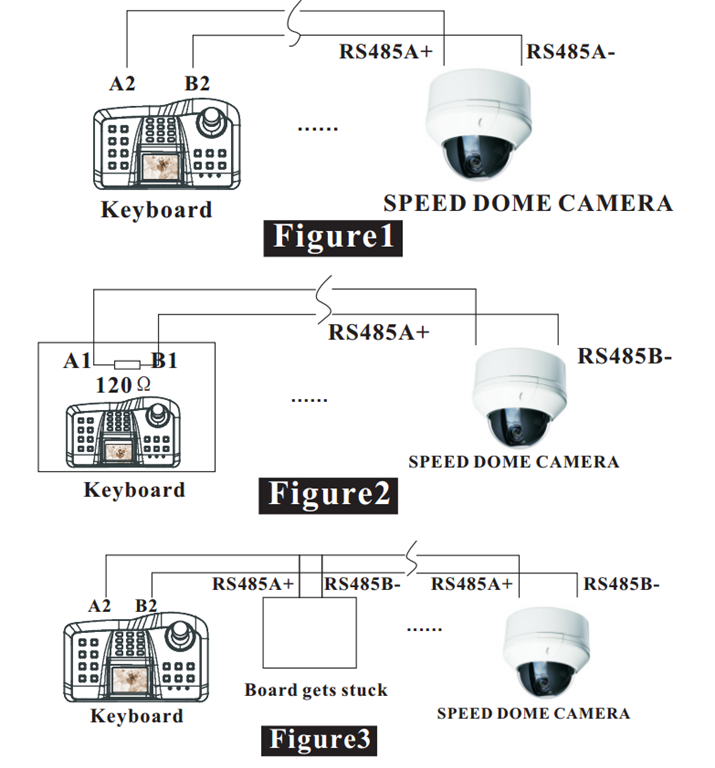

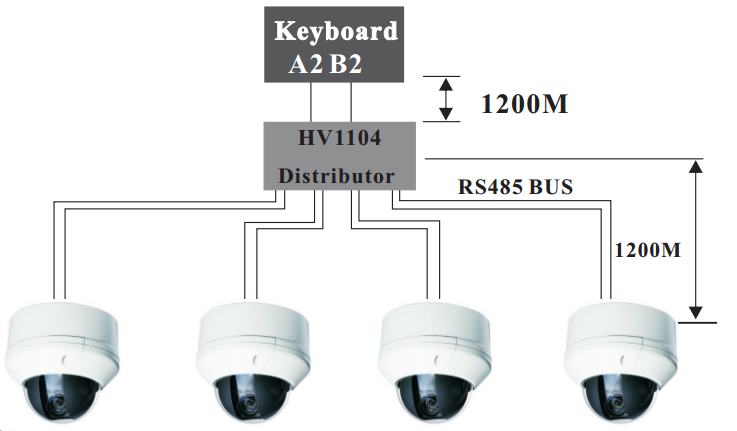

Keyboard控制: 多台串接-小型系統 [13]

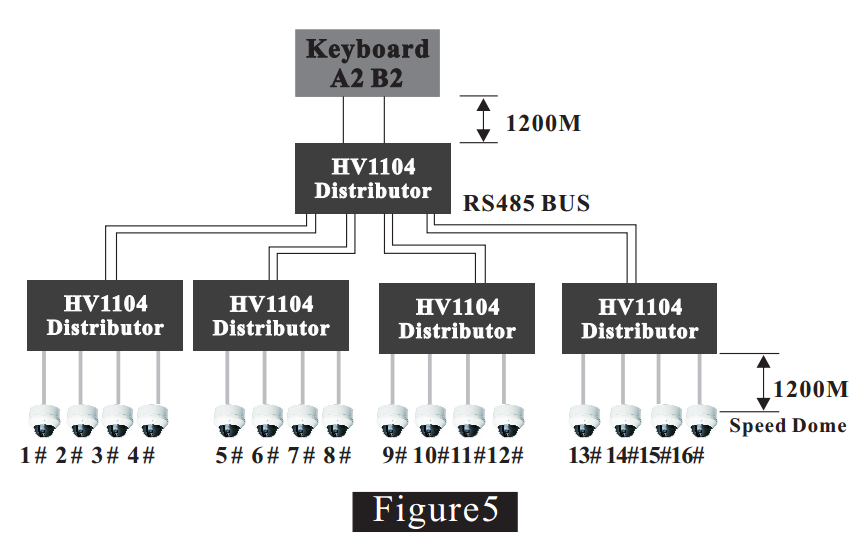

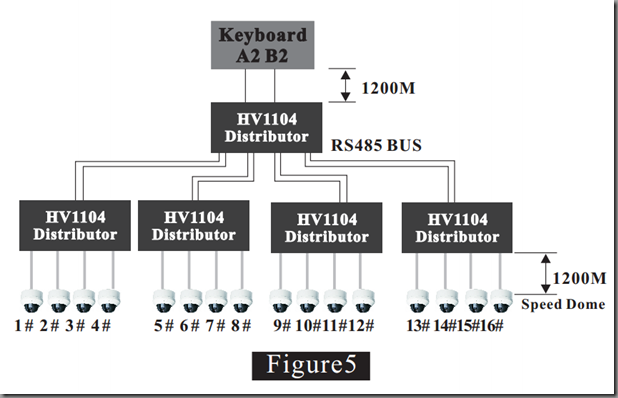

Keyboard控制: 多台串接-大型系統 [13]

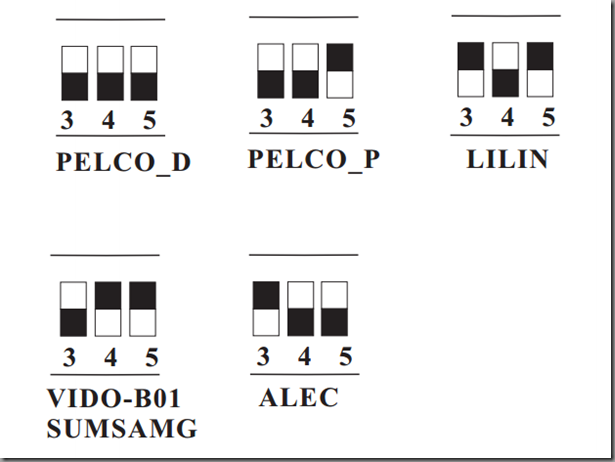

PIN腳設定協定
參考資料
2. http://www.serialporttool.com/PTZ.htm
3. Bosch camera with a Pelco Controller
6. Video | LTC 8059/00 Allegiant Master Control Software pdf
7. LTC 8500 Series Allegiant Matrix/Control Systems – Modular
8. Allegiant® Main CPU Interface Software Command Console Language pdf
LTC 8100, LTC 8200, LTC 8300, LTC 8500, LTC 8600, LTC 8800 and LTC 8900
9. Allegiant Keyboards pdf
LTC 8555 Series
10. BOSCH SECURITY VIDEO LTC 8786/60 Rs-232 Biphase Data Converter amazon
11. LTC 8786/50,LTC 8786/60 RS-232 to Biphase Converter (Installation Instructions) pdf
12. LTC 8786 Series RS-232 to Biphase Converter pdf
13. HIGH SPEED DOME CAMERA USER MANUAL pdf
15. VG5-624-ECS AUTODOME 600 Series 36x NTSC Outdoor Pendant Camera
