解析度名詞定義:
- QXGA(2048x1536)
- 1080P(1920x1080)
- 720P(1280x720)
- D1(720x480)
- CIF(352x240)
Taipei, Taiwan

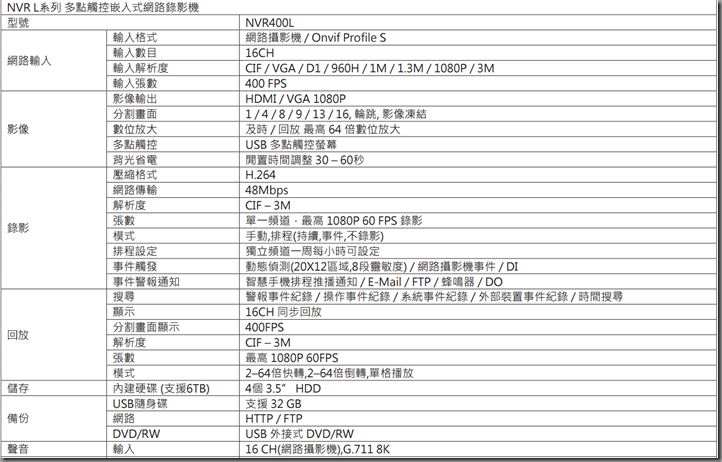

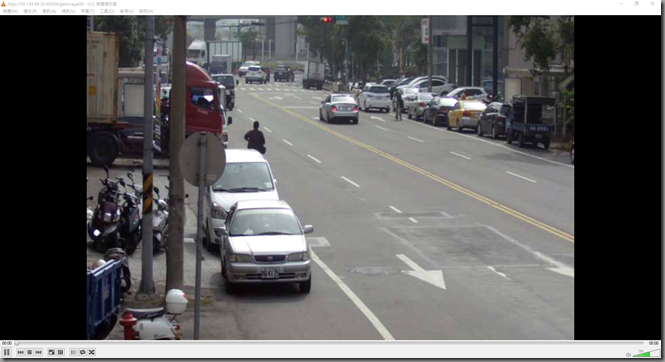

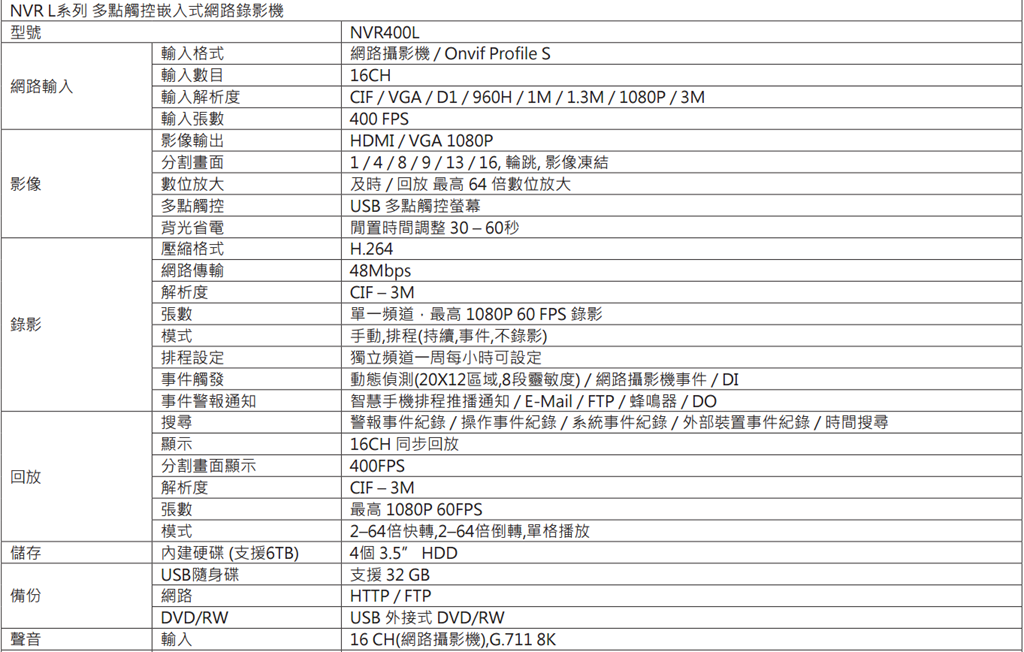

使用1080P多點觸控網路型錄放影機NVR400L遠端連結16台IP高速球、iMEGAPRO系列攝影機，觀看H.264及JPEG即時影像，並可做影像回放及下載備份

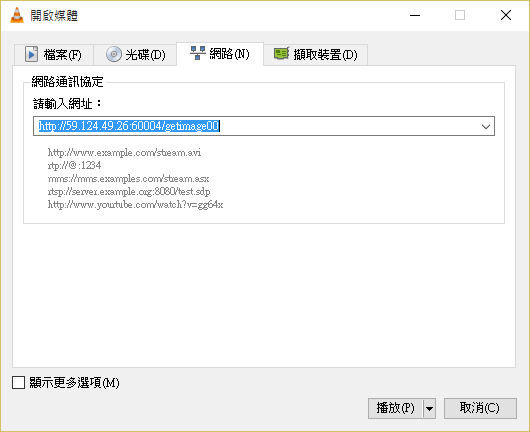

(1) VLC測試:

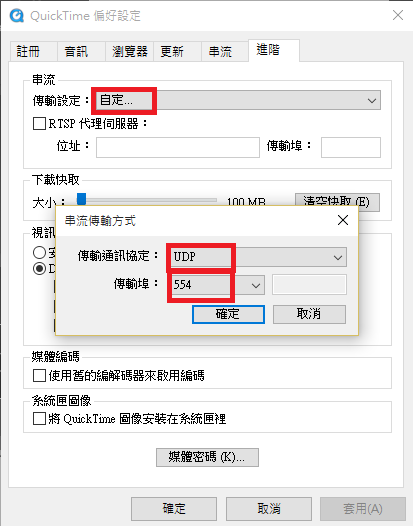

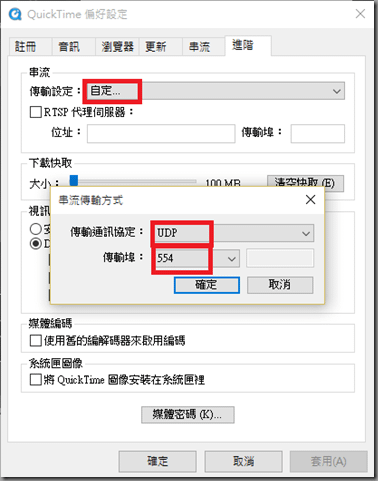

PS. 推薦使用VLC, 不建議使用Quick Time或UMPlayer
http://59.124.49.26:60004/getimage00
user: demo
passwd:3333

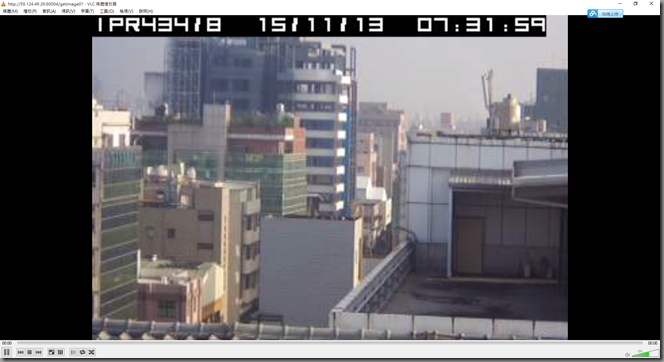

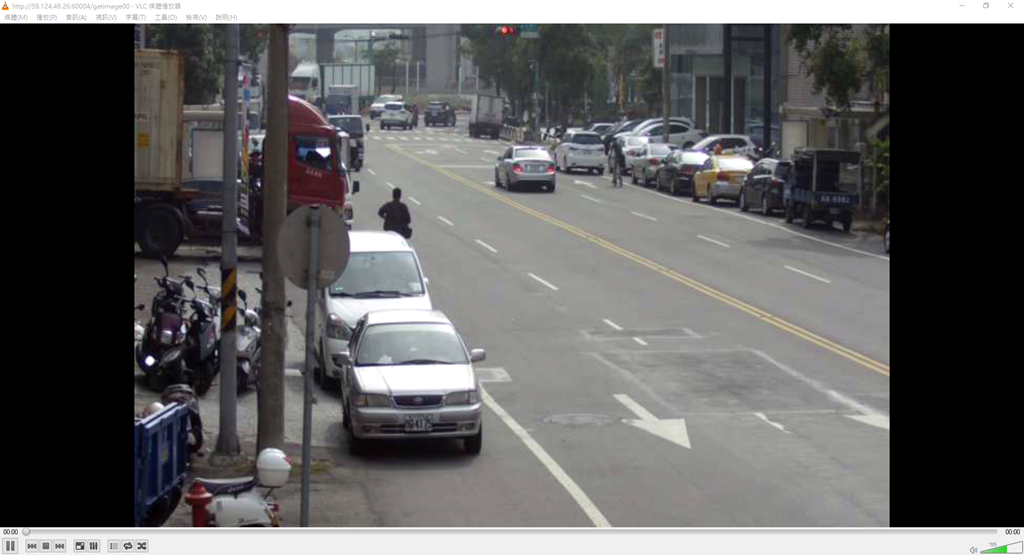

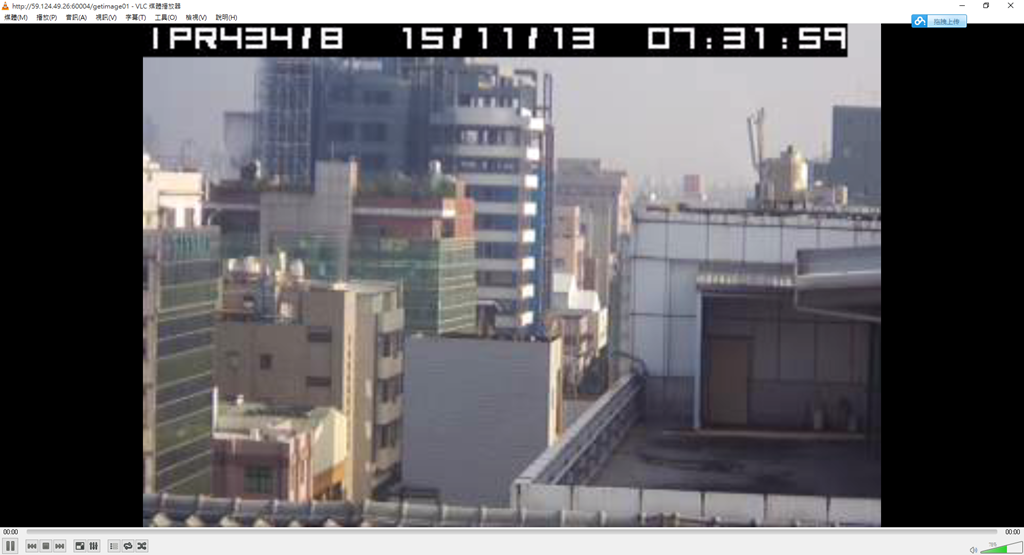

(2) VLC測試:
http://59.124.49.26:60004/getimage01
user: demo
passwd:3333

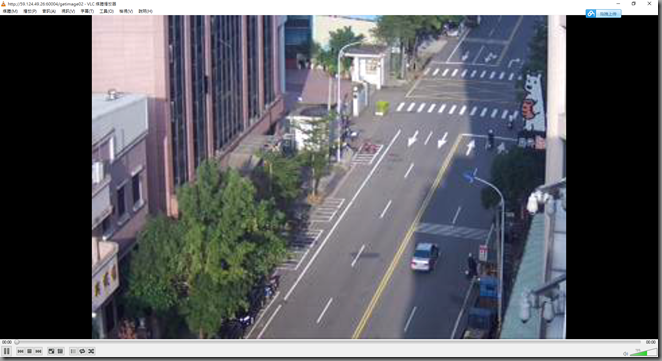

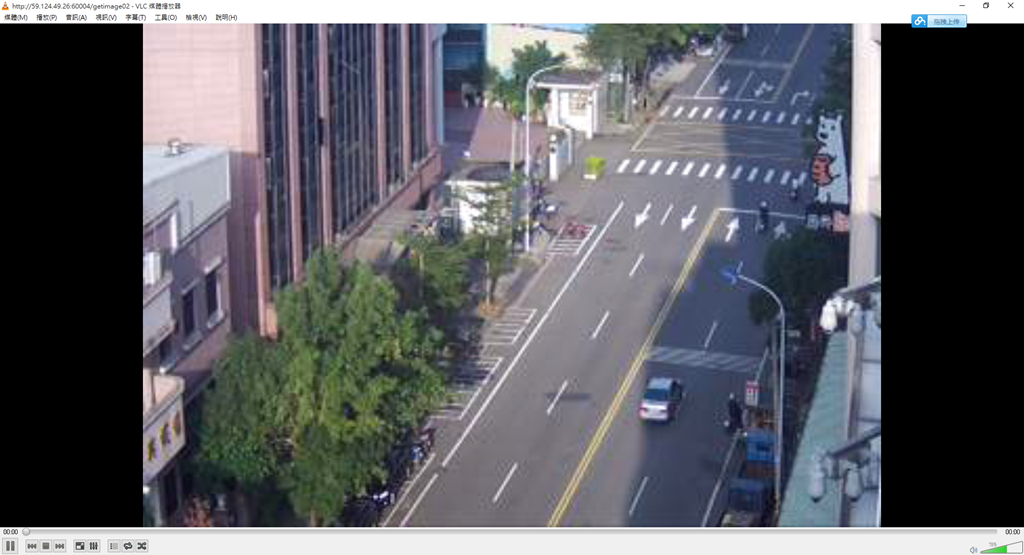

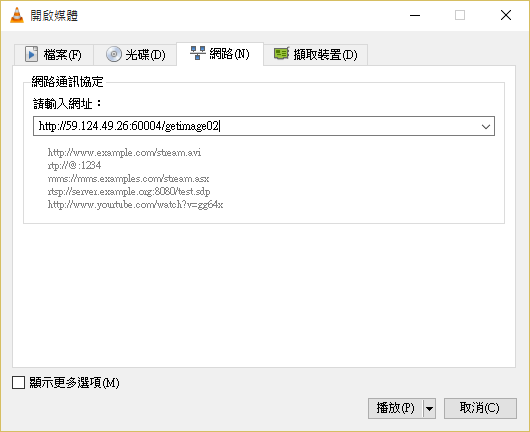

(3) VLC測試:
http://59.124.49.26:60004/getimage02
user: demo
passwd:3333

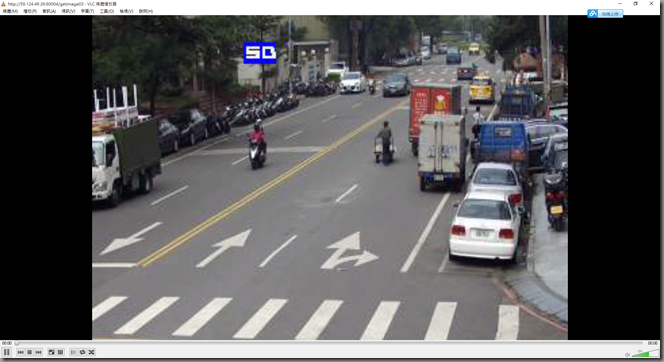

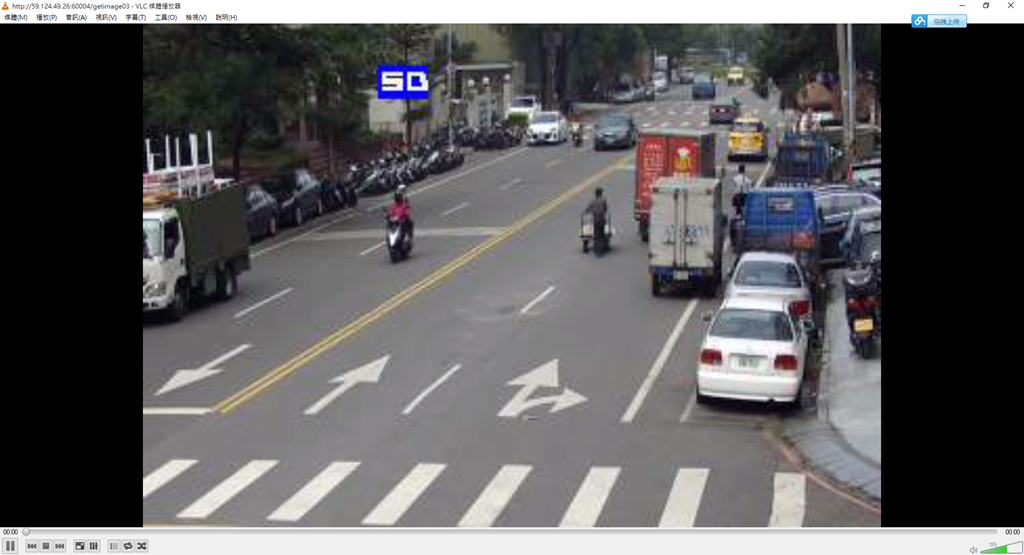

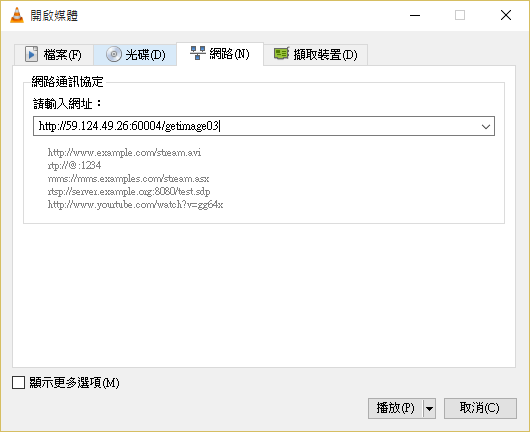

(4) VLC測試:
http://59.124.49.26:60004/getimage03
user: demo
passwd:3333
Taipei, Taiwan

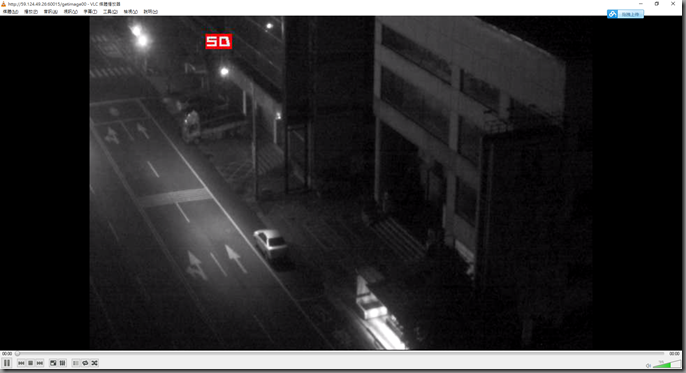

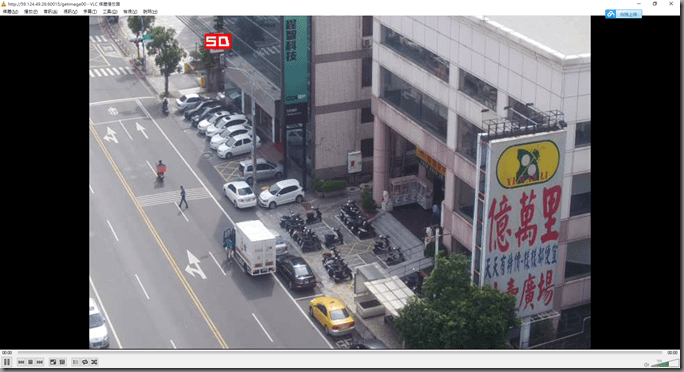

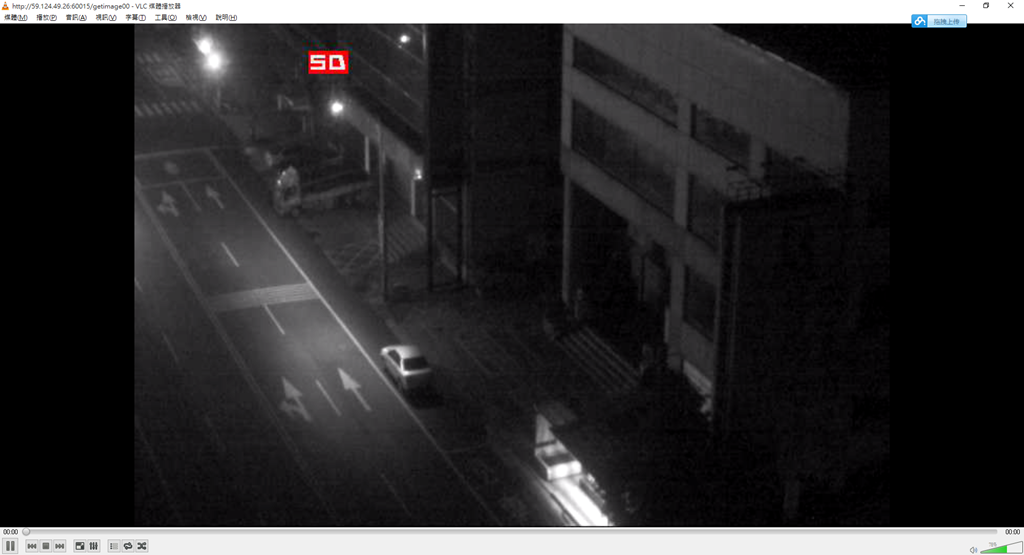

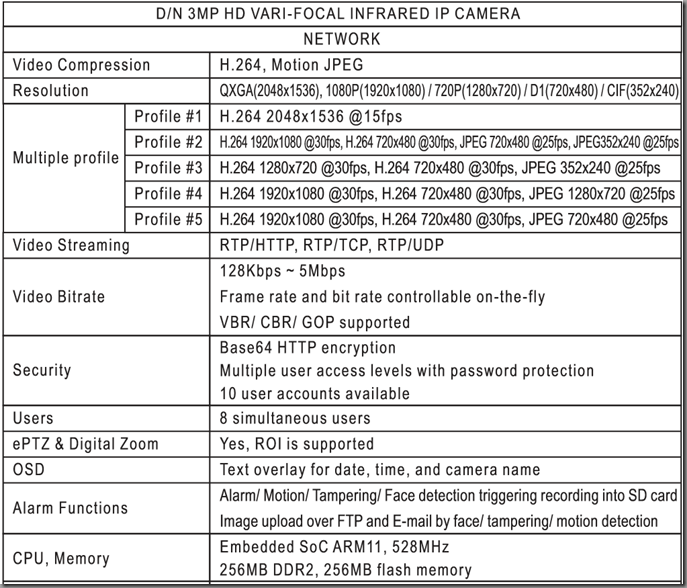

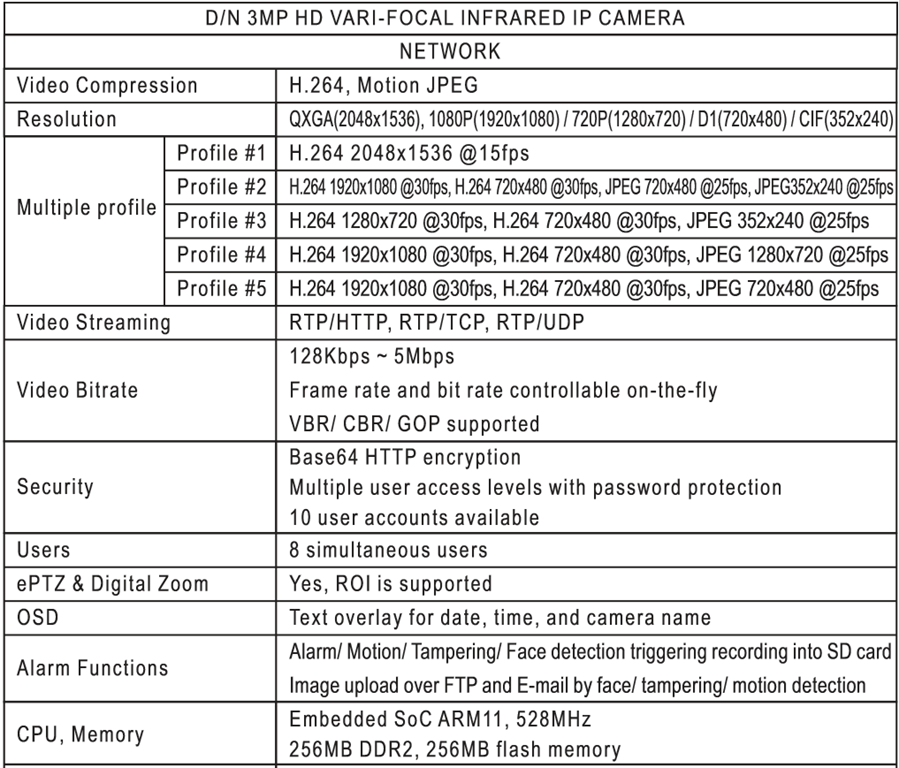

在台北總公司架設日夜兩用3百萬畫素高畫質變焦鏡頭紅外線網路攝影機IPR7334/7338，此為70米遠處的商店與人車來往狀況。
(5) VLC測試:
http://59.124.49.26:60015/getimage00 不支援網頁瀏覽(Motion Jpeg)
user: demo
password: demo
Taipei, Taiwan :

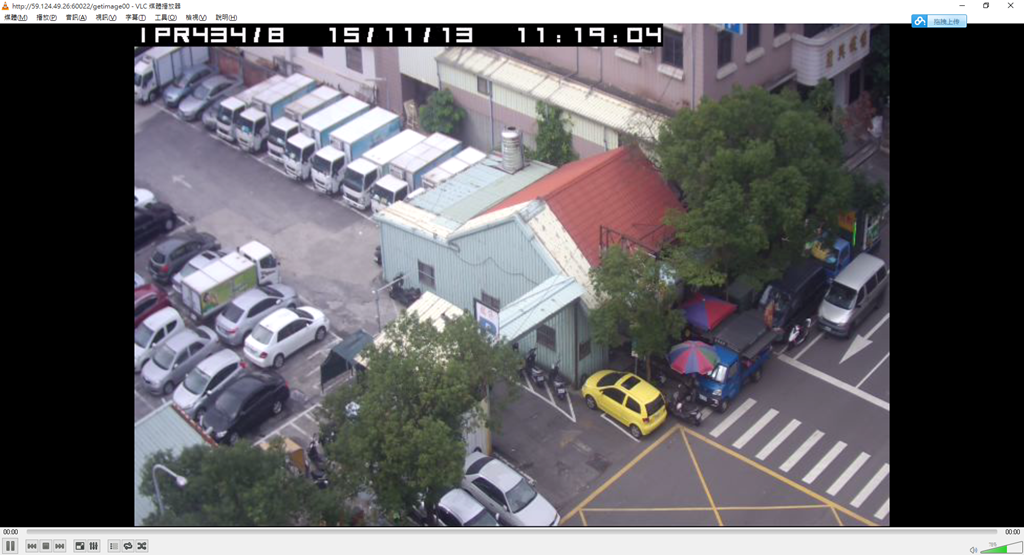

在台北總公司架設日夜兩用3百萬畫素高畫質變焦鏡頭紅外線網路攝影機IPR434/438，此為約50米遠處，戶外停車場出入口狀況。
(6) VLC測試:
http://59.124.49.26:60022/getimage00
user: demo
password: demo

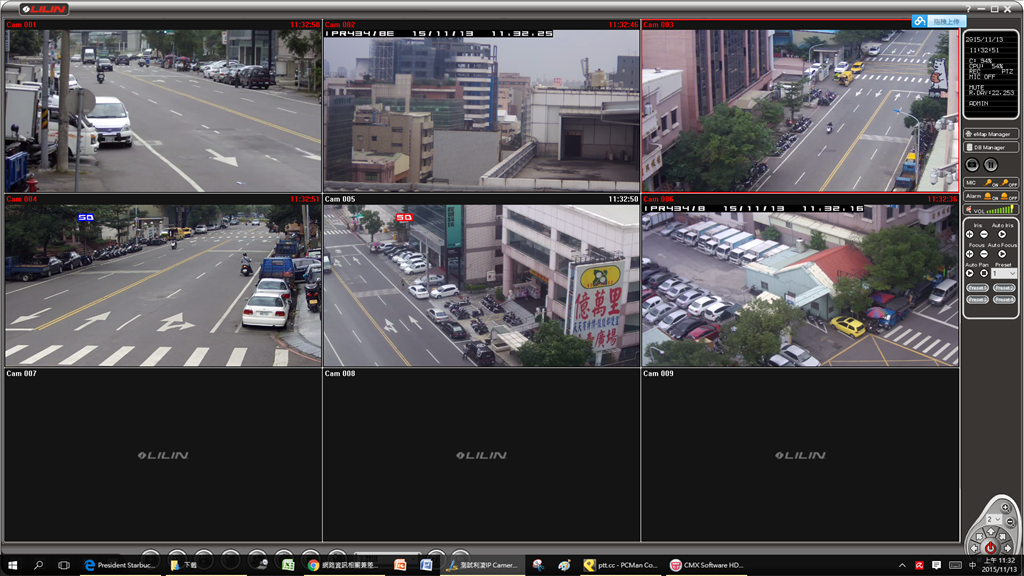

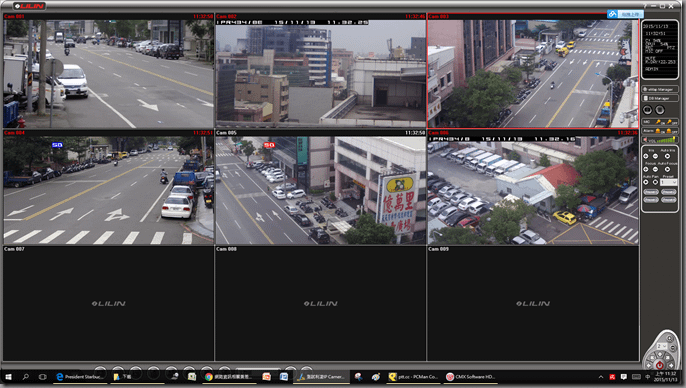

使用CMX Software HD 3.6進行測試

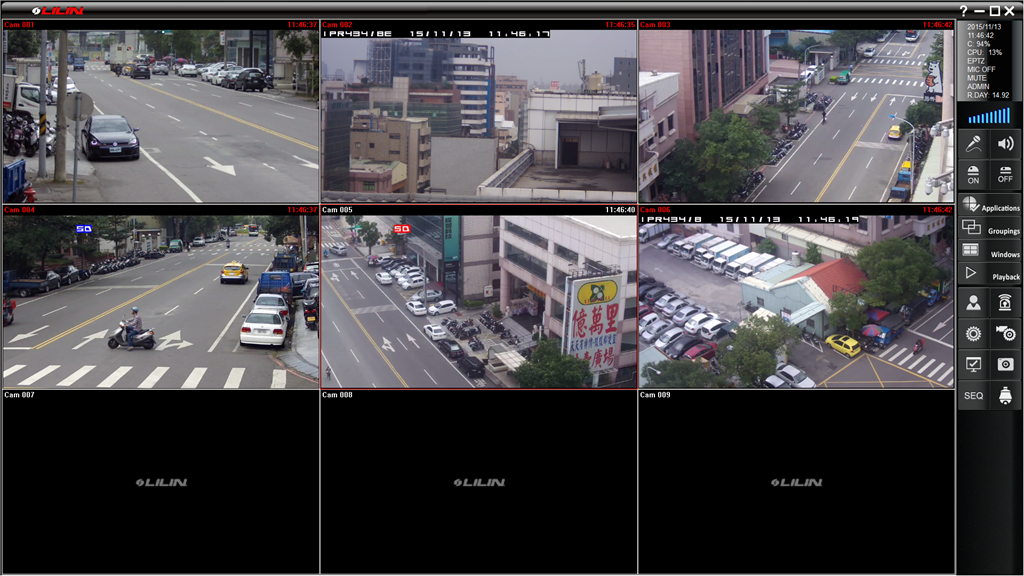

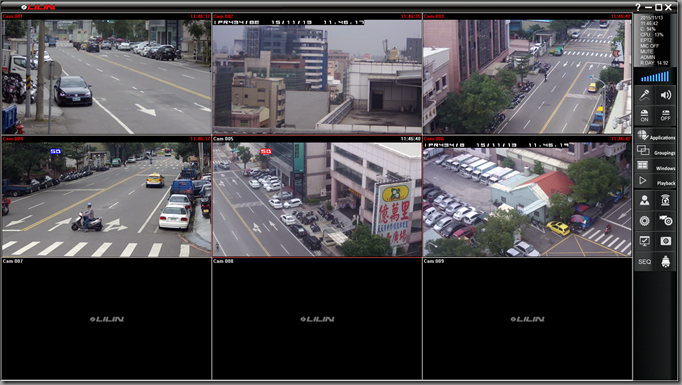

使用 LILIN Navigator進行測試
測試H.264和JPEG串流資訊 RTP/RTSP/HTTP
支援硬體:
1. HD CMOS 5MP IP cameras, IPG1052
2. HD CMOS 3MP IP cameras, IPG1032
3. HD CMOS 2MP IP cameras, iMEGAPRO, PTZ, IPS420/IPS520
4. HD CMOS 2MP IP cameras, L series
5. 1.3 MP PTZ, 960H PTZ, and VS212

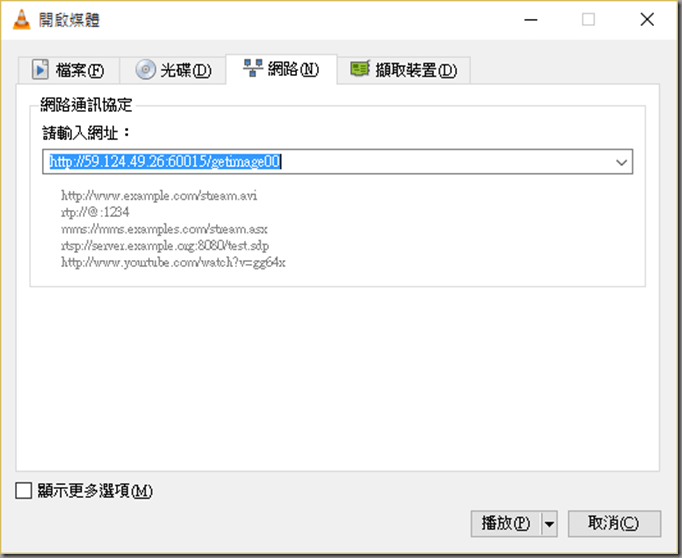

File->OpenURL
1. HD CMOS 5MP IP cameras, IPG1052
Transport Protocol: RTP/TCP with RTSP port 554
rtsp://192.168.0.200:554/rtsph2645m
rtsp://192.168.0.200:554/rtsph264480p
rtsp://192.168.0.200:554/rtspjpeg480p
rtsp://192.168.0.200:554/rtspjpegcif
Optional Profiles:
rtsp://192.168.0.200:554/rtsph2641080p
rtsp://192.168.0.200:554/rtsph264720p
rtsp://192.168.0.200:554/rtspjpeg720p
Transport Protocol: RTP/HTTP with RTSP port 80
預設80(可以省略)
rtsp://192.168.0.200/rtsph2645m
rtsp://192.168.0.200/rtsph264480p
rtsp://192.168.0.200/rtspjpeg480p
rtsp://192.168.0.200/rtspjpegcif
Optional Profiles:
rtsp://192.168.0.200/rtsph2641080p
rtsp://192.168.0.200/rtsph264720p
rtsp://192.168.0.200/rtspjpeg720p
---------------------------------------------------------------------------------------------------------
2. HD CMOS 3MP IP cameras, IPG1032
Transport Protocol: RTP/TCP with RTSP port 554
rtsp://192.168.0.200:554/rtsph2643m
rtsp://192.168.0.200:554/rtsph264480p
rtsp://192.168.0.200:554/rtspjpeg480p rtsp://192.168.0.200:554/rtspjpegcif
Optional Profiles:
rtsp://192.168.0.200:554/rtsph2641080p
rtsp://192.168.0.200:554/rtsph264720p
rtsp://192.168.0.200:554/rtspjpeg720p
Transport Protocol: RTP/HTTP with RTSP port 80
rtsp://192.168.0.200/rtsph2643m
rtsp://192.168.0.200/rtsph264480p
rtsp://192.168.0.200/rtspjpeg480p
rtsp://192.168.0.200/rtspjpegcif
Optional Profiles:
rtsp://192.168.0.200/rtsph2641080p
rtsp://192.168.0.200/rtsph264720p
rtsp://192.168.0.200/rtspjpeg720p
---------------------------------------------------------------------------------------------------------
3. HD CMOS 2MP IP cameras,
iMEGAPRO, PTZ, IPS420/IPS520
Transport Protocol: RTP/TCP with RTSP port 554
rtsp://192.168.0.200:554/rtsph2641080p
rtsp://192.168.0.200:554/rtsph264480p
rtsp://192.168.0.200:554/rtspjpeg480p rtsp://192.168.0.200:554/rtspjpegcif
Optional profiles:
rtsp://192.168.0.200:554/rtsph264720p
rtsp://192.168.0.200:554/rtspjpeg720p
Transport Protocol: RTP/HTTP with RTSP port 80
rtsp://192.168.0.200/rtsph2641080p
rtsp://192.168.0.200/rtsph264480p
rtsp://192.168.0.200/rtspjpeg480p
rtsp://192.168.0.200/rtspjpegcif
Optional profiles:
rtsp://192.168.0.200/rtsph264720p
rtsp://192.168.0.200/rtspjpeg720p
---------------------------------------------------------------------------------------------------------
4. HD CMOS 2MP IP cameras, L series
Transport Protocol: RTP/TCP with RTSP port 554
rtsp://192.168.0.200:554/rtsph2641080p
rtsp://192.168.0.200:554/rtsph264480p
rtsp://192.168.0.200:554/rtspjpeg480p
Transport Protocol: RTP/HTTP with RTSP port 80
rtsp://192.168.0.200/rtsph2641080p
rtsp://192.168.0.200/rtsph264480p
rtsp://192.168.0.200/rtspjpeg480p
---------------------------------------------------------------------------------------------------------
5. 1.3 MP PTZ
Transport Protocol: RTP/TCP with RTSP port 554
rtsp://192.168.0.200:554/rtsph264sxga
rtsp://192.168.0.200:554/rtsph264480p
rtsp://192.168.0.200:554/rtspjpeg480p
Transport Protocol: RTP/HTTP with RTSP port 80
rtsp://192.168.0.200/rtsph264sxga
rtsp://192.168.0.200/rtsph264480p
---------------------------------------------------------------------------------------------------------
6. 960H PTZ, and VS212
Transport Protocol: RTP/TCP with RTSP port 554
rtsp://192.168.0.200:554/rtsph264960h
rtsp://192.168.0.200:554/rtsph264480p
rtsp://192.168.0.200:554/rtspjpeg480p
Transport Protocol: RTP/HTTP with RTSP port 80
rtsp://192.168.0.200/rtsph264960h
rtsp://192.168.0.200/rtsph264480p
rtsp://192.168.0.200/rtspjpeg480p
---------------------------------------------------------------------------------------------------------
測試UDP
Verify LILIN NVT H.264 Media Streaming
via OpenRTSP of Live555
Transport Protocol: RTP/UDP
OpenRTSP -b 102400 rtsp://192.168.0.200:554/rtsph264
Transport Protocol: RTP/TCP
OpenRTSP -b 102400 -t rtsp://192.168.0.200:554/rtsph264
Transport Protocol: RTP/RTSP/TCP
OpenRTSP -b 102400 -T 554 -u admin pass rtsp://192.168.0.200/rtsph264
Transport Protocol: RTP/RTSP/HTTP/TCP Port:80
OpenRTSP -b 102400 -T 80 rtsp://192.168.0.200/rtsph264
---------------------------------------------------------------------------------------------------------
Verify LILIN NVT JPEG Media Streaming
via OpenRTSP of Live555
Transport Protocol: RTP/UDP
OpenRTSP -b 102400 rtsp://192.168.0.200:554/rtspjpeg
Transport Protocol: RTP/TCP
OpenRTSP -b 102400 -t rtsp://192.168.0.200:554/rtspjpeg
Transport Protocol: RTP/RTSP/TCP
OpenRTSP -b 102400 -T 554 -u admin pass rtsp://192.168.0.200/rtspjpeg
Transport Protocol: RTP/RTSP/HTTP/TCP Port:80
OpenRTSP -b 102400 -T 80 rtsp://192.168.0.200/rtspjpeg
---------------------------------------------------------------------------------------------------------
Verify LILIN NVT JPEG with Safari and Firefox
http://192.168.0.200:554/rtspjpeg for live monitoring
---------------------------------------------------------------------------------------------------------
2.0 Audio Streaming
Audio output (IP Camera to PC)
Transport Protocol: RTSP over HTTP
Audio coding type: G.711
Audio sample rate: 8KHz/44KHz
Data width: 8 bits.
Audio bitrate: 64Kbps/352Kbps
rtsp://192.168.0.200/rtspaudio
HTTP audio input (PC to IP camera)
Transport Protocol: RTSP over HTTP
Audio coding type: PCM
Audio sample rate: 8KHz
Data width: 16 bits.
Audio bitrate: 128Kbps
http://192.168.0.200/sendaudio
