USB_HRF1206 多功能數據採集卡－天天向上

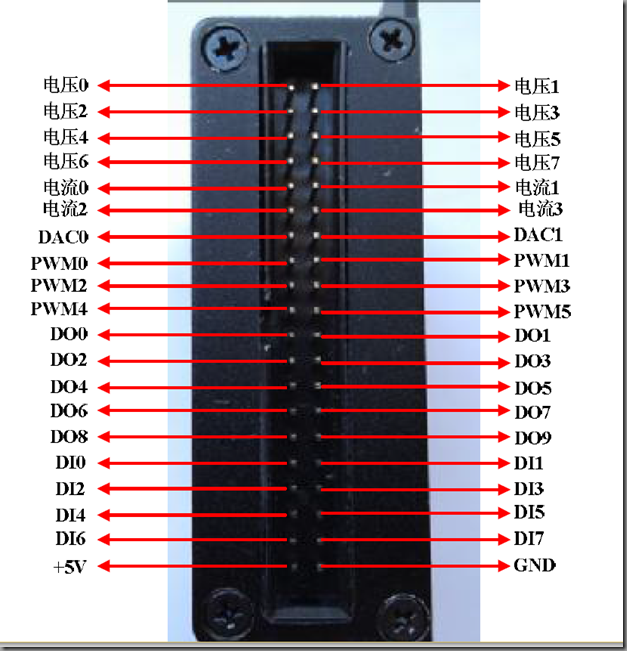

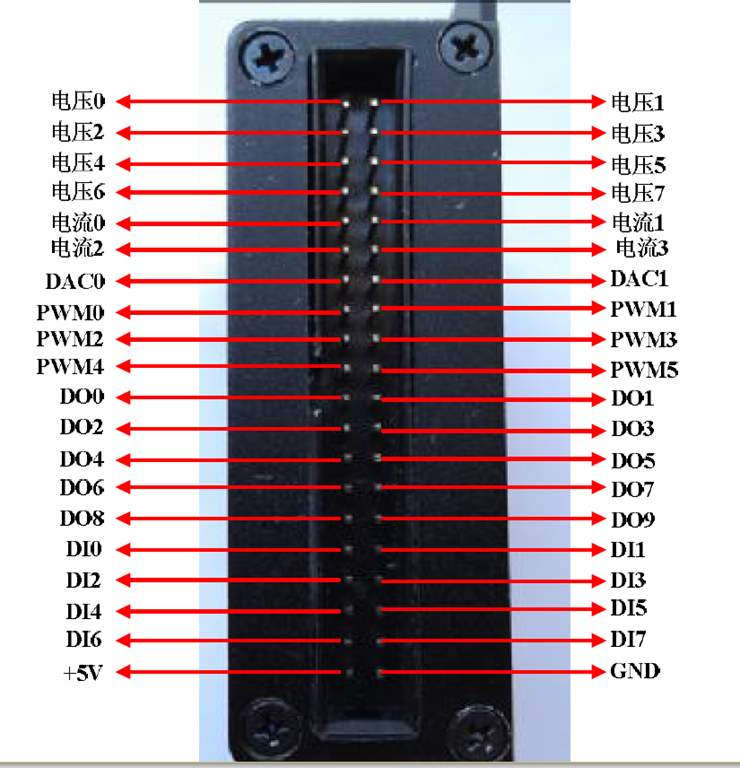

1. 電壓 0-電壓7為類比電壓信號檢測,檢測電壓信號範圍為0-10V;

2. 電流 0-電流3為8路電流信號輸入檢測,檢測電流範圍為0-20mA;

3. DAC0-DAC1 為類比電壓信號輸出, 電壓信號輸出範圍為0-10V;

4. PWM0-PWM5為PWM信號輸出端, 其中PWM0-PWM3占空比和頻率都可單

獨設置; PWM4和PWM2的頻率一樣, PWM5和PWM3的頻率一樣, 占空比可

單獨設置;

5. DO0-DO7為8 路數位信號輸出，低電平為0V，高電平為3.3V;

6. DI0-DI7 為8路數位信號輸入, 其中, DI0-DI3默認為高電平, DI4-DI7 默認為低

電平，可檢測的高電平為3.3V或5V，低電平為0V;

-------------------------------------------------------------------------------------

Int32 iLen = 35;
            byte[] buffer = new byte[iLen]; //用于开设单片机缓冲区

            buffer[0] = 6; buffer[1] = 4; buffer[2] = 1;//缓冲区写入值641

            if (DevCH375.CH375WriteData(0, buffer, ref iLen))//写入单片机缓存
            {
                //读取刚才写入的数据
                if (DevCH375.CH375ReadData(0, buffer, ref iLen))
                {
                    for (int i = 0; i < 4; i++)
                    {
                        digitInput[i]   = buffer[34] >> i & 0x01;  // DI1 - DI4
                        digitInput[i+4] = buffer[33] >> i & 0x01;  // DI5 - DI8
                    }
                    //digitInput[0] = buffer[34] & 0x01;
                    //digitInput[1] = buffer[34]>> 1 & 0x01;
                    //digitInput[2] = buffer[34]>> 2 & 0x01;
                    //digitInput[3] = buffer[34]>> 3 & 0x01;
                }
                //this.Text = (buffer[34] & 0x01).ToString();

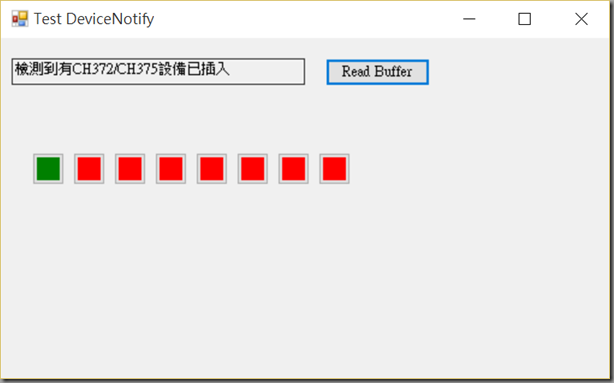

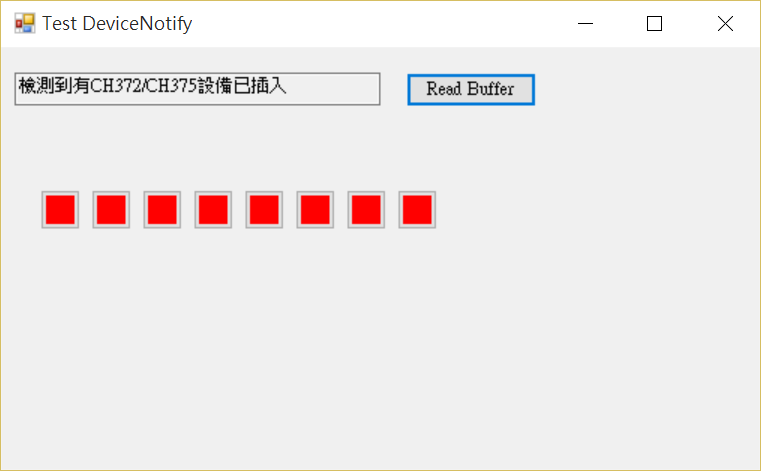

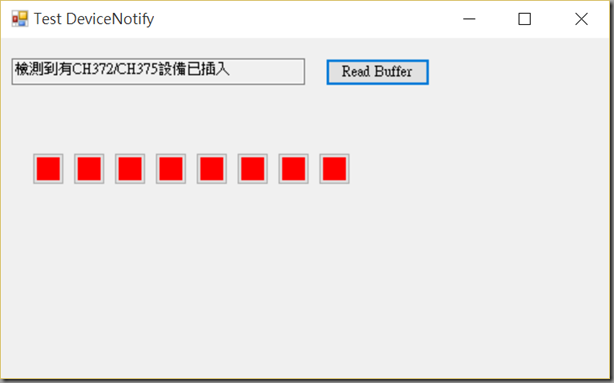

                if (digitInput[0] == 1 & button1.BackColor != Color.Red)
                {
                    button1.BackColor = Color.Red;
                }
                else if (digitInput[0] == 0 & button1.BackColor != Color.Green)
                {
                    button1.BackColor = Color.Green;
                }

                if (digitInput[1] == 1 & button2.BackColor != Color.Red)
                {
                    button2.BackColor = Color.Red;
                }
                else if (digitInput[1] == 0 & button2.BackColor != Color.Green)
                {
                    button2.BackColor = Color.Green;
                }

                if (digitInput[2] == 1 & button3.BackColor != Color.Red)
                {
                    button3.BackColor = Color.Red;
                }
                else if (digitInput[2] == 0 & button3.BackColor != Color.Green)
                {
                    button3.BackColor = Color.Green;
                }
                if (digitInput[3] == 1 & button4.BackColor != Color.Red)
                {
                    button4.BackColor = Color.Red;
                }
                else if (digitInput[3] == 0 & button4.BackColor != Color.Green)
                {
                    button4.BackColor = Color.Green;
                }
                if (digitInput[4] == 1 & button5.BackColor != Color.Red)
                {
                    button5.BackColor = Color.Red;
                }
                else if (digitInput[4] == 0 & button5.BackColor != Color.Green)
                {
                    button5.BackColor = Color.Green;
                }
                if (digitInput[5] == 1 & button6.BackColor != Color.Red)
                {
                    button6.BackColor = Color.Red;
                }
                else if (digitInput[5] == 0 & button6.BackColor != Color.Green)
                {
                    button6.BackColor = Color.Green;
                }
                if (digitInput[6] == 1 & button7.BackColor != Color.Red)
                {
                    button7.BackColor = Color.Red;
                }
                else if (digitInput[6] == 0 & button7.BackColor != Color.Green)
                {
                    button7.BackColor = Color.Green;
                }
                if (digitInput[7] == 1 & button8.BackColor != Color.Red)
                {
                    button8.BackColor = Color.Red;
                }
                else if (digitInput[7] == 0 & button8.BackColor != Color.Green)
                {
                    button8.BackColor = Color.Green;
                }
            }
