Edge Based Template Matching

原作者提供C++版本的實作(OpenCV 2.0 and Visual studio 2008 ), 搭配數學公式說明, 讓人很容易理解

這個方法(Feature based approach)相較於傳統(Gray value based approach)強健許多,

尤其當搜尋物件非完整顯示時,可以準確搜. 但計算量超大, 不適合大張圖像樣板比對

目前我已經成功改寫成C# Emgu CV版本, 之後考慮改以GPU版本加速, 以利實際應用

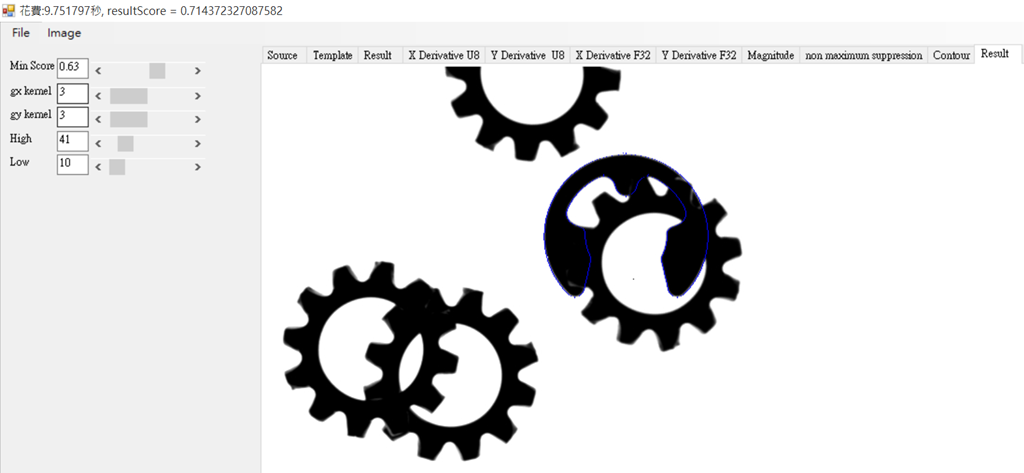

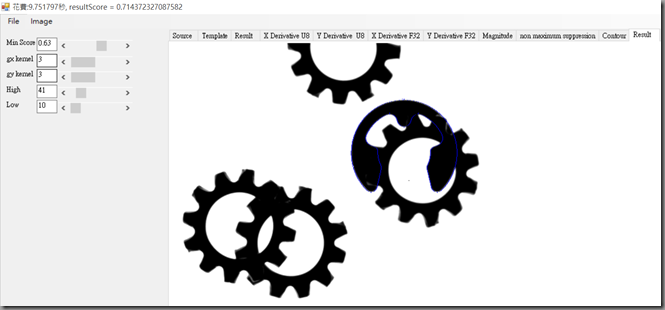

下面三張圖簡單說明本範例應用情形:

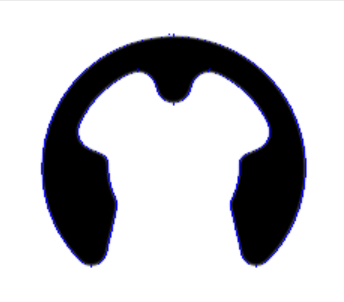

第一張圖(左下角)為template image(樣板影像)

第二張圖source image或稱search image, 影像中包含一張樣板影像(有部分和其他物件重疊)

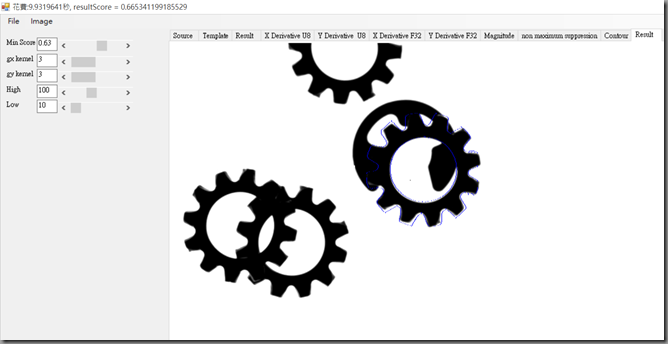

第三張圖表達的是背景亮度變化時, 依然可以找到樣板影像

Gray value based approach

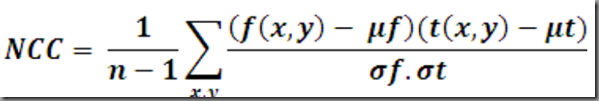

the Normalized Cross Correlation (NCC) algorithm

Feature based approach

Step 1: Find the intensity gradient of the image

gx: 為整張灰階影像x方向梯度變化

gy: 為整張灰階影像y方向梯度變化

MagG: 某一點的梯度長度

direction: 某一點梯度方向(分成0, 45, 90, 135度, 共四種梯度方向)

magMat[i][j]:每一點的梯度長度

MaxGradient: 整張影像最大梯度長度

orients[count]: 紀錄每個梯度方向

cvSobel( src, gx, 1,0, 3 ); //gradient in X direction
cvSobel( src, gy, 0, 1, 3 ); //gradient in Y direction

for( i = 1; i < Ssize.height-1; i++ )
{
    for( j = 1; j < Ssize.width-1; j++ )
    {
        _sdx = (short*)(gx->data.ptr + gx->step*i);
        _sdy = (short*)(gy->data.ptr + gy->step*i);
        fdx = _sdx[j]; fdy = _sdy[j];
        // read x, y derivatives

        //Magnitude = Sqrt(gx^2 +gy^2)
        MagG = sqrt((float)(fdx*fdx) + (float)(fdy*fdy));
        //Direction = invtan (Gy / Gx)
        direction =cvFastArctan((float)fdy,(float)fdx);
        magMat[i][j] = MagG;

        if(MagG>MaxGradient)
            MaxGradient=MagG;
            // get maximum gradient value for normalizing.


        // get closest angle from 0, 45, 90, 135 set
        if ( (direction>0 && direction < 22.5) ||
              (direction >157.5 && direction < 202.5) ||
              (direction>337.5 && direction<360)  )
            direction = 0;
        else if ( (direction>22.5 && direction < 67.5) ||
                  (direction >202.5 && direction <247.5)  )
            direction = 45;
        else if ( (direction >67.5 && direction < 112.5)||
                  (direction>247.5 && direction<292.5) )
            direction = 90;
        else if ( (direction >112.5 && direction < 157.5)||
                  (direction>292.5 && direction<337.5) )
            direction = 135;
        else
            direction = 0;

        orients[count] = (int)direction;
        count++;
    }
}

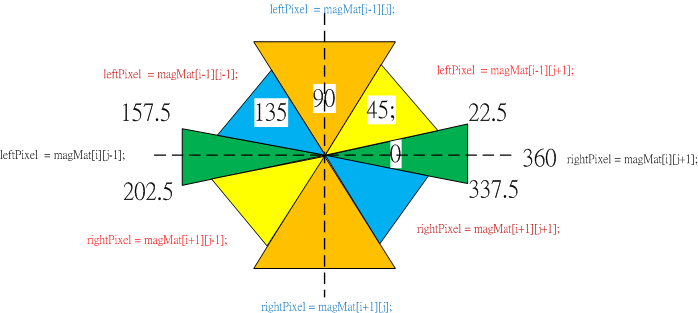

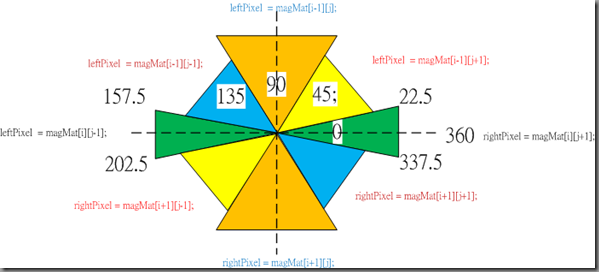

梯度方向(分成0, 45, 90, 135度, 共四種梯度方向)

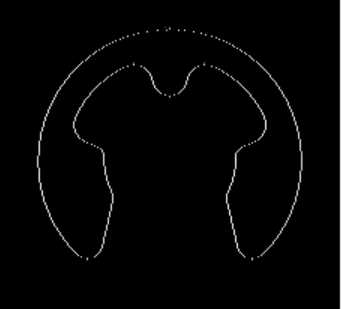

Step 2: Apply non-maximum suppression

掃描整張影像目前像素的梯度長度(magMat[i][j])與鄰近點的梯度長度比較,

此外, 依據目前像素的方向orients[count], 決定選擇鄰近點的候選人(leftPixel和rightPixel)

比較結果兩種可能

1. 目前像素的長度均小於鄰近點的梯度長度, 則numEdges[i, j] = 0;

2. 否則, numEdges[i, j] = magMat[i,j]/MaxGradient*255; <----- 正規化至0~255(灰階強度)

for( i = 1; i < Ssize.height-1; i++ )
{
    for( j = 1; j < Ssize.width-1; j++ )
    {
        switch ( orients[count] )
        {
            case 0:
                leftPixel  = magMat[i][j-1];
                rightPixel = magMat[i][j+1];
                break;
            case 45:
                leftPixel  = magMat[i-1][j+1];
                rightPixel = magMat[i+1][j-1];
                break;
            case 90:
                leftPixel  = magMat[i-1][j];
                rightPixel = magMat[i+1][j];
                break;
            case 135:
                leftPixel  = magMat[i-1][j-1];
                rightPixel = magMat[i+1][j+1];
                break;
        }
        // compare current pixels value with adjacent pixels
        if (( magMat[i][j] < leftPixel ) || (magMat[i][j] < rightPixel ) )
            (nmsEdges->data.ptr + nmsEdges->step*i)[j]=0;
        Else
            (nmsEdges->data.ptr + nmsEdges->step*i)[j]=
                                 (uchar)(magMat[i][j]/MaxGradient*255);
        count++;
    }
}

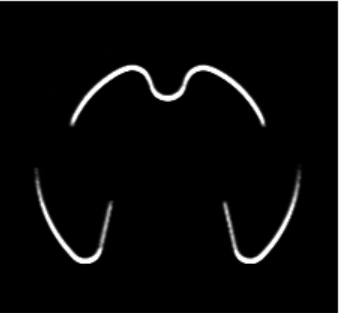

Step 3: Do hysteresis threshold

如果 numEdges[i, j] < maxContrast (灰階強度上限)


{

    如果 numEdges[i, j] < minConstrast (灰階強度下限)

   {

       numEdges[i,j] =0;


       flag = 0;

   }else{

        如果 numEdges[i,j]鄰近8個像素強度均小於maxContrast

        {

              numEdges[i,j] =0;


              flag = 0;

        }


   }

}

_sdx = (short*)(gx->data.ptr + gx->step*i);
_sdy = (short*)(gy->data.ptr + gy->step*i);
fdx = _sdx[j]; fdy = _sdy[j];

MagG = sqrt(fdx*fdx + fdy*fdy); //Magnitude = Sqrt(gx^2 +gy^2)
DirG =cvFastArctan((float)fdy,(float)fdx);     //Direction = tan(y/x)

////((uchar*)(imgGDir->imageData + imgGDir->widthStep*i))[j]= MagG;
flag=1;
if(((double)((nmsEdges->data.ptr + nmsEdges->step*i))[j]) < maxContrast)
{
    if(((double)((nmsEdges->data.ptr + nmsEdges->step*i))[j])< minContrast)
    {
        (nmsEdges->data.ptr + nmsEdges->step*i)[j]=0;
        flag=0; // remove from edge
        ////((uchar*)(imgGDir->imageData + imgGDir->widthStep*i))[j]=0;
    }
    else
    {   // if any of 8 neighboring pixel is not greater than max contraxt remove from edge
        if( (((double)((nmsEdges->data.ptr + nmsEdges->step*(i-1)))[j-1]) < maxContrast) &&
            (((double)((nmsEdges->data.ptr + nmsEdges->step*(i-1)))[j]) < maxContrast)   &&
            (((double)((nmsEdges->data.ptr + nmsEdges->step*(i-1)))[j+1]) < maxContrast) &&
            (((double)((nmsEdges->data.ptr + nmsEdges->step*i))[j-1]) < maxContrast)     &&
            (((double)((nmsEdges->data.ptr + nmsEdges->step*i))[j+1]) < maxContrast)     &&
            (((double)((nmsEdges->data.ptr + nmsEdges->step*(i+1)))[j-1]) < maxContrast) &&
            (((double)((nmsEdges->data.ptr + nmsEdges->step*(i+1)))[j]) < maxContrast)   &&
            (((double)((nmsEdges->data.ptr + nmsEdges->step*(i+1)))[j+1]) < maxContrast))
        {
            (nmsEdges->data.ptr + nmsEdges->step*i)[j]=0;
            flag=0;
            ////((uchar*)(imgGDir->imageData + imgGDir->widthStep*i))[j]=0;
        }
    }
}

Step 4: Save the data set

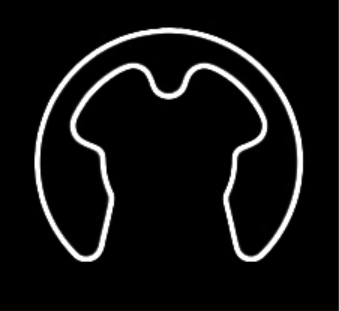

目前為止, 邊緣點所在的位置(X,Y)即樣板模型

在此, 原作者定義curX和curY和傳統慣用的X-Y相反, curX紀錄列座標, curY紀錄行座標

cordinates[noOfCordinates].x = curX; <---curX紀錄邊緣所在的列座標

cordinates[noOfCordinates].y = curY; <---curY紀錄邊緣所在的行座標

edgeDerivativeX[noOfCordinates] = gx[i, j]; <---對應的gx水平方向梯度

edgeDerivativeY[noOfCordinates] = gy[i, j]; <---對應的gy垂直方向梯度

edgeMagnitude[noOfCordinates] = 1/MagG; <---對應梯度長度的倒數

// save selected edge information
            curX=i; curY=j;
if(flag!=0)
            {
if(fdx!=0 || fdy!=0)
                {
                    RSum=RSum+curX; CSum=CSum+curY; // Row sum and column sum for center of gravity

                    cordinates[noOfCordinates].x = curX;
                    cordinates[noOfCordinates].y = curY;
                    edgeDerivativeX[noOfCordinates] = fdx;
                    edgeDerivativeY[noOfCordinates] = fdy;

//handle divide by zero
if(MagG!=0)
                        edgeMagnitude[noOfCordinates] = 1/MagG;  // gradient magnitude
else
                        edgeMagnitude[noOfCordinates] = 0;

                    noOfCordinates++;
                }
            }

將codinates座標點的重心移到座標原點, 即原始座標(x,y)-重心座標(cx,cy)

01. centerOfGravity.x = RSum /noOfCordinates; // center of gravity
02. centerOfGravity.y = CSum/noOfCordinates ; // center of gravity
03.
04. // change coordinates to reflect center of gravity
05. for(int m=0;m<noOfCordinates ;m++)
06. {
07.  int temp;    temp=cordinates[m].x;
08.  cordinates[m].x=temp-centerOfGravity.x;
09.  temp=cordinates[m].y;
10.  cordinates[m].y =temp-centerOfGravity.y;
11. }

Find the edge based template model

樣板影像梯度向量 A

搜尋影像梯度向量 B

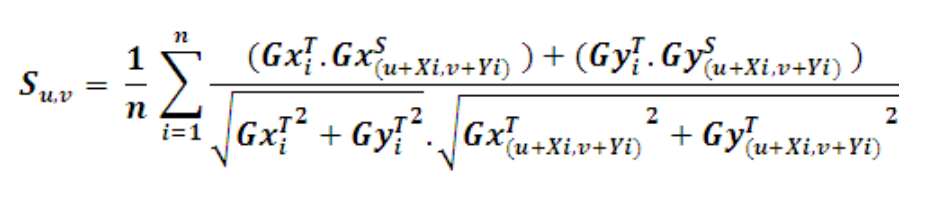

Simularity = Dot(A, B)/|A||B|, 其值介於0(完全不吻合)~1(完全吻合)

01.    cvSobel( src, Sdx, 1, 0, 3 );  // find X derivatives
02.    cvSobel( src, Sdy, 0, 1, 3 ); // find Y derivatives
03.
04.    // stoping criterias to search for model
05.    double normMinScore = minScore /noOfCordinates; // precompute minumum score
06.    double normGreediness = ((1- greediness * minScore)/(1-greediness)) /noOfCordinates; // precompute greedniness
07.
08.    for( i = 0; i < Ssize.height; i++ )
09.    {
10.         _Sdx = (short*)(Sdx->data.ptr + Sdx->step*(i));
11.         _Sdy = (short*)(Sdy->data.ptr + Sdy->step*(i));
12.
13.         for( j = 0; j < Ssize.width; j++ )
14.        {
15.                iSx=_Sdx[j];  // X derivative of Source image
16.                iSy=_Sdy[j];  // Y derivative of Source image
17.
18.                gradMag=sqrt((iSx*iSx)+(iSy*iSy)); //Magnitude = Sqrt(dx^2 +dy^2)
19.
20.                if(gradMag!=0) // hande divide by zero
21.                    matGradMag[i][j]=1/gradMag;   // 1/Sqrt(dx^2 +dy^2)
22.                else
23.                    matGradMag[i][j]=0;
24.
25.        }
26.    }
27.    for( i = 0; i < Ssize.height; i++ )
28.    {
29.            for( j = 0; j < Ssize.width; j++ )
30.             {
31.                 partialSum = 0; // initilize partialSum measure
32.                 for(m=0;m<noOfCordinates;m++)
33.                 {
34.                     curX   = i + cordinates[m].x ; // template X coordinate
35.                     curY   = j + cordinates[m].y ; // template Y coordinate
36.                     iTx    = edgeDerivativeX[m];   // template X derivative
37.                     iTy    = edgeDerivativeY[m];    // template Y derivative
38.
39.                     if(curX<0 ||curY<0||curX>Ssize.height-1 ||curY>Ssize.width-1)
40.                         continue;
41.
42.                     _Sdx = (short*)(Sdx->data.ptr + Sdx->step*(curX));
43.                     _Sdy = (short*)(Sdy->data.ptr + Sdy->step*(curX));
44.
45.                     iSx=_Sdx[curY]; // get curresponding  X derivative from source image
46.                     iSy=_Sdy[curY];// get curresponding  Y derivative from source image
47.
48.                    if((iSx!=0 || iSy!=0) && (iTx!=0 || iTy!=0))
49.                     {
50.                         //partial Sum  = Sum of(((Source X derivative* Template X drivative) + Source Y derivative * Template Y derivative)) / Edge magnitude of(Template)* edge magnitude of(Source))
51.                         partialSum = partialSum + ((iSx*iTx)+(iSy*iTy))*(edgeMagnitude[m] * matGradMag[curX][curY]);
52.
53.                     }
54.
55.                    sumOfCoords = m + 1;
56.                    partialScore = partialSum /sumOfCoords ;
57.                    // check termination criteria
58.                    // if partial score score is less than the score than needed to make the required score at that position
59.                    // break serching at that coordinate.
60.                    if( partialScore < (MIN((minScore -1) + normGreediness*sumOfCoords,normMinScore*  sumOfCoords)))
61.                        break;
62.
63.                }
64.                if(partialScore > resultScore)
65.                {
66.                    resultScore = partialScore; //  Match score
67.                    resultPoint->x = i;          // result coordinate X
68.                    resultPoint->y = j;          // result coordinate Y
69.                }
70.            }
