private Kitware.VTK.RenderWindowControl renderWindowControl1;
       vtkAxesActor axes = null;
       List<vtkActor> vtkActors = new List<vtkActor>();
       public Form1()
       {
           InitializeComponent();

           renderWindowControl1 = new RenderWindowControl();
           splitContainer1.Panel2.Controls.Add(renderWindowControl1);
           renderWindowControl1.Show();
           renderWindowControl1.Dock = DockStyle.Fill;
       }

private void drawLine(double[] p0, double[] p1, int lineWidth, IntPtr pColor)
        {
            // Create a line.
            vtkLineSource lineSource = vtkLineSource.New();

            lineSource.SetPoint1(p0[0], p0[1], p0[2]);
            lineSource.SetPoint2(p1[0], p1[1], p1[2]);

            // Visualize
            vtkPolyDataMapper mapper = vtkPolyDataMapper.New();
            mapper.SetInputConnection(lineSource.GetOutputPort());
            vtkActor actor = vtkActor.New();
            actor.SetMapper(mapper);
            actor.GetProperty().SetLineWidth(lineWidth);
            actor.GetProperty().SetColor(pColor);
            vtkRenderWindow renderWindow = renderWindowControl1.RenderWindow;
            vtkRenderer renderer = renderWindow.GetRenderers().GetFirstRenderer();
            renderer.SetBackground(0.2, 0.3, 0.4);
            renderer.AddActor(actor);
            vtkActors.Add(actor);
            renderer.ResetCamera();
        }

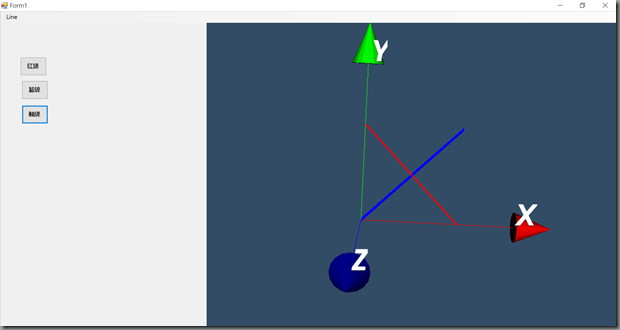

private void drawAxes()
        {
            if (axes == null)
            axes = vtkAxesActor.New();
            // The axes are positioned with a user transform
            vtkTransform transform = vtkTransform.New();
            transform.Translate(0.0, 0.0, 0.0);
            axes.SetUserTransform(transform);
            // properties of the axes labels can be set as follows
            // this sets the x axis label to red
            // axes.GetXAxisCaptionActor2D().GetCaptionTextProperty().SetColor(1,0,0);

            // the actual text of the axis label can be changed:
            // axes.SetXAxisLabelText("test");
            vtkRenderWindow renderWindow = renderWindowControl1.RenderWindow;
            vtkRenderer renderer = renderWindow.GetRenderers().GetFirstRenderer();
            renderer.AddActor(axes);
            // we need to call Render() for the whole renderWindow,
            // because vtkAxesActor uses an overlayed renderer for the axes label
            // in total we have now two renderer
            renderWindow.Render();

        }

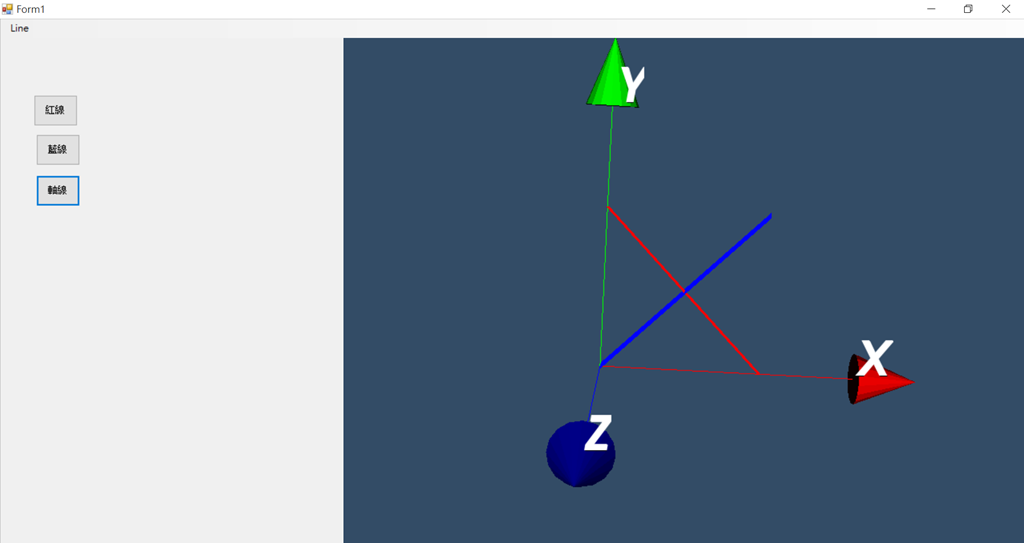

private void drawToolStripMenuItem_Click(object sender, EventArgs e)
       {
           // Create two points, P0 and P1
           double[] p0 = new double[] { 0.5, 0.0, 0.0 };
           double[] p1 = new double[] { 0.0, 0.5, 0.0 };
           int lineWidth = 4;
           double[] Color = new double[3] { 1.0, 0, 0 };
           IntPtr pColor = Marshal.AllocHGlobal(Marshal.SizeOf(typeof(double)) * 3);
           Marshal.Copy(Color, 0, pColor, 3);
           drawLine(p0, p1, lineWidth, pColor);
           double[] p2 = new double[] { 0.0, 0.0, 0.0 };
           double[] p3 = new double[] { 0.5, 0.5, 0.0 };
           lineWidth = 8;
           Color[0] = 0; Color[1] = 0; Color[2] = 1.0;
           Marshal.Copy(Color, 0, pColor, 3);
           drawLine(p2, p3, lineWidth, pColor);
           renderWindowControl1.Invalidate();
       }

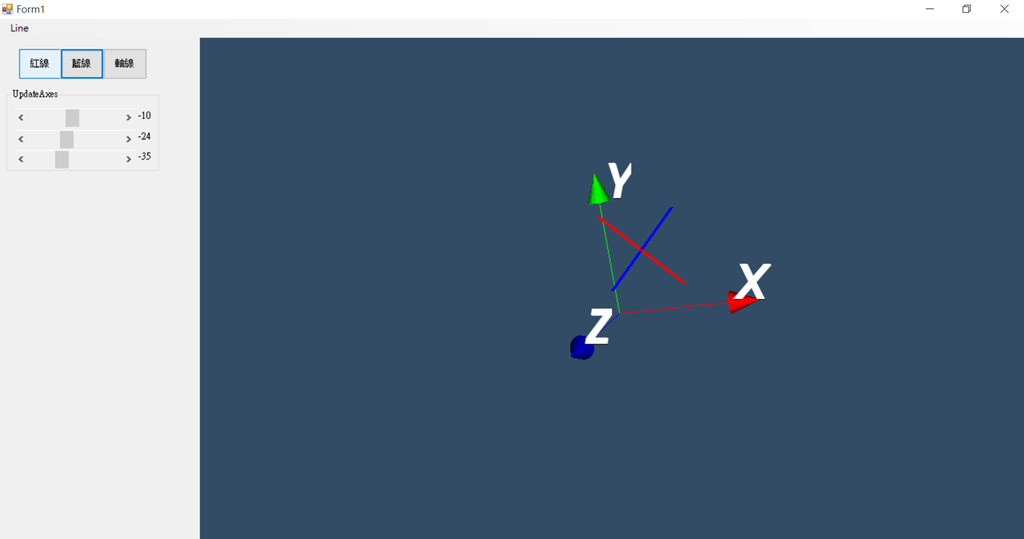

private void UpdateAxes()
{
    if (axes == null) return;
    double x = hScrollBar1.Value / 100.0;
    double y = hScrollBar2.Value / 100.0;
    double z = hScrollBar3.Value / 100.0;
    vtkTransform transform = vtkTransform.New();
    transform.Translate(x, y, z);
    axes.SetUserTransform(transform);
    vtkRenderWindow renderWindow = renderWindowControl1.RenderWindow;
    renderWindow.Render();
}

private void hScrollBar1_Scroll(object sender, ScrollEventArgs e)
       {
           label1.Text = hScrollBar1.Value.ToString();
           UpdateAxes();
       }

       private void hScrollBar2_Scroll(object sender, ScrollEventArgs e)
       {
           label2.Text = hScrollBar2.Value.ToString();
           UpdateAxes();
       }

       private void hScrollBar3_Scroll(object sender, ScrollEventArgs e)
       {
           label3.Text = hScrollBar3.Value.ToString();
           UpdateAxes();
       }

private void timerRotateX_Tick(object sender, EventArgs e)
{
    vtkActors[1].RotateX(1.0);
    vtkRenderWindow renderWindow = renderWindowControl1.RenderWindow;
    renderWindow.Render();
}

private void timerRotateY_Tick(object sender, EventArgs e)
{
    vtkActors[1].RotateY(1.0);
    vtkRenderWindow renderWindow = renderWindowControl1.RenderWindow;
    renderWindow.Render();
}

private void timerRotateZ_Tick(object sender, EventArgs e)
{
    vtkActors[1].RotateZ(1.0);
    vtkRenderWindow renderWindow = renderWindowControl1.RenderWindow;
    renderWindow.Render();
}
