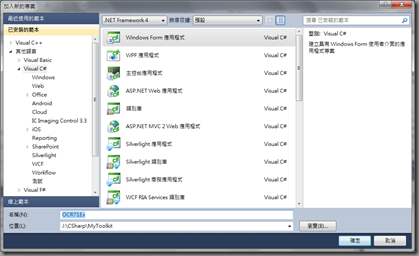

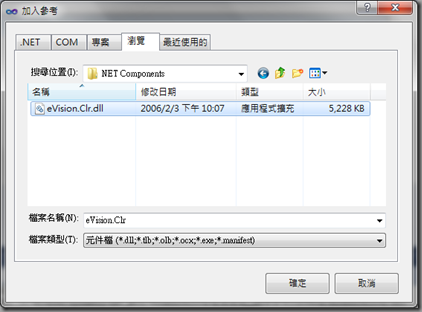

點選<加入參考>, 第一次執行加入參考, Visual Studio會執行一段時間(正常), 因為會掃描整個系統相容元件的關係


點選.NET物件

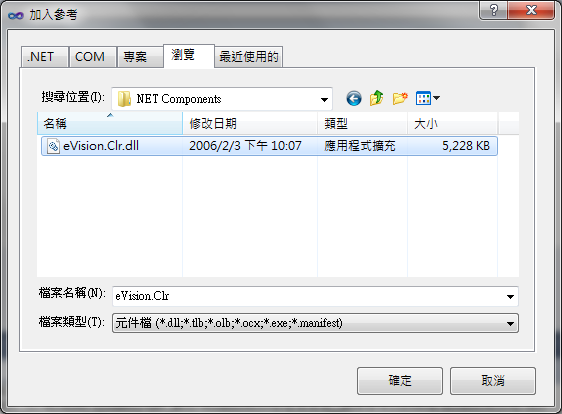

C:\Program Files (x86)\Euresys\eVision\NET Components

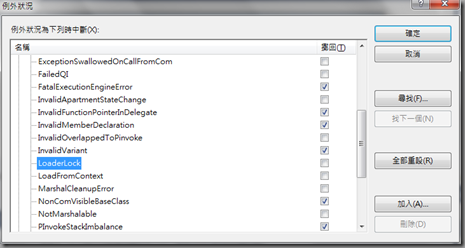

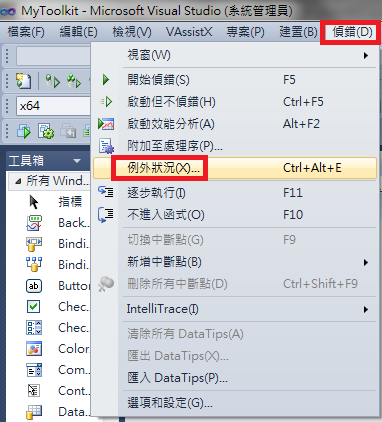

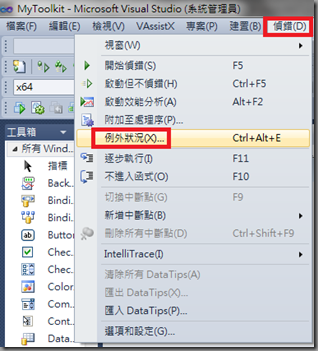

Visual Studio 2010->偵錯->例外狀況

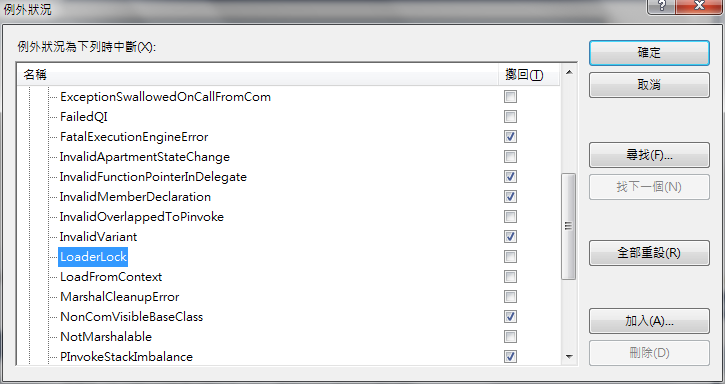

原廠範例程式,預設值LoaderLock是打勾, 但這個會造成執行階段錯誤!


================================================================

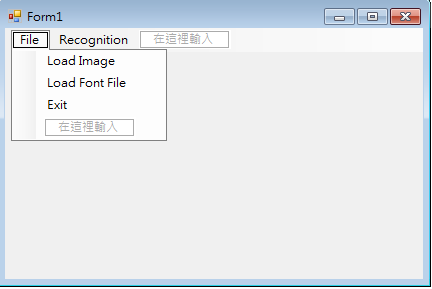

加入menuStrip和openFileDialog

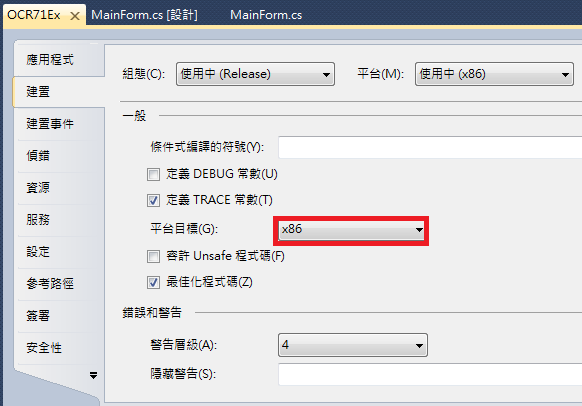

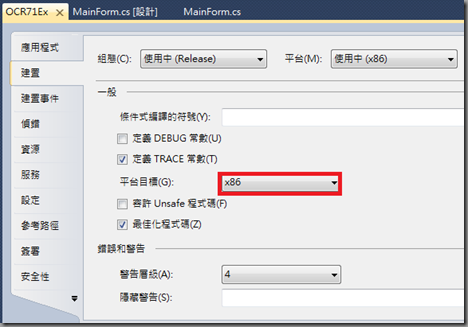

eVision 6.7.1 只支援x86不支援x64

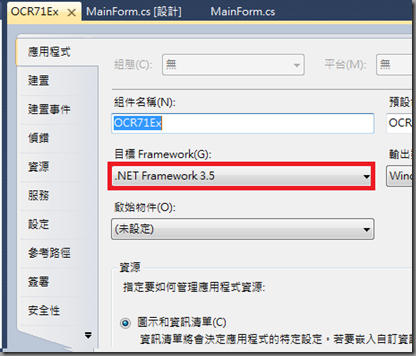

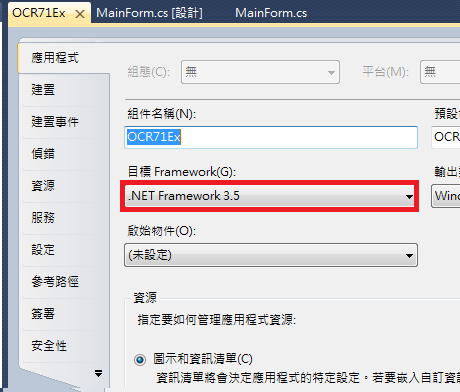

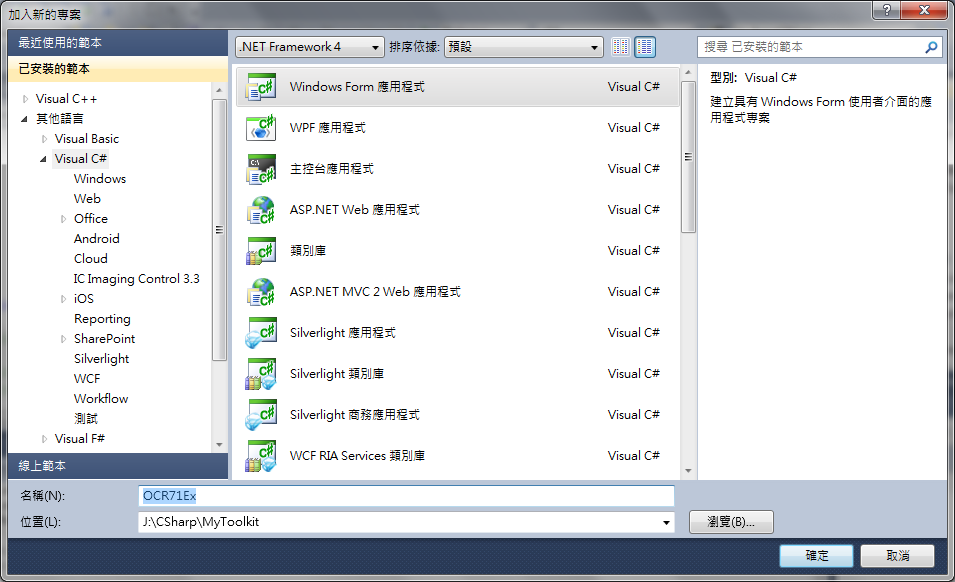

目標Framework不支援.NET Framework 4

支援.NET Framework2, 3, 3.5


開始撰寫程式

using Euresys.eVision;

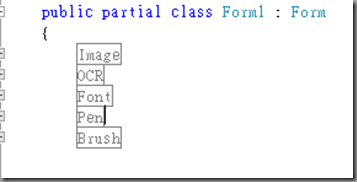

定義五個region


對應內容如下:

   1: #region Image
   2: private ImageBW8 m_Source = new ImageBW8();
   3: private ROIBW8 m_Roi = new ROIBW8();
   4: #endregion
   5: #region OCR
   6: private Euresys.eVision.Ocr m_Ocr = new Ocr();
   7: private string m_OcrText = "";
   8: private bool m_bRead = false;
   9: private DragHandle m_Handle = DragHandle.NoHandle;
  10: #endregion
  11: #region Font
  12: private Font m_Font = new Font("Arial", 9);
  13: #endregion
  14: #region Pen
  15: private Pen m_RedPen = new Pen(Color.Red);
  16: private Pen m_GreenPen = new Pen(Color.FromArgb(0, 255, 0));
  17: #endregion
  18: #region Brush
  19: private Brush m_BlackBrush = new SolidBrush(Color.Black);
  20: private Brush m_WhiteBrush = new SolidBrush(Color.White);
  21: #endregion

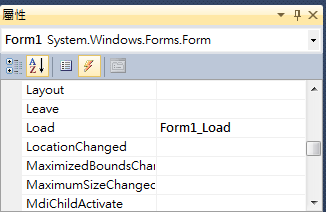

Form1 加入Load Event


定義副程式: Redraw和DrawBackedText

   1: #region Subroutine
   2:       private void Redraw(Graphics g)
   3:       {
   4:           if (m_Source.Void)   // if (m_Source==null) then m_Source.Void return true
   5:               return;
   6:
   7:           // Display the source image
   8:           m_Source.Draw(g);
   9:
  10:           // Draw the roi frame with its handles
  11:           m_Roi.DrawFrame(g, m_RedPen, FramePosition.On, true);
  12:
  13:           // Draw the character bounding boxes if needed
  14:           if (m_bRead)
  15:           {
  16:               m_Ocr.DrawChars(g, m_GreenPen);
  17:
  18:               // Display recognised text at (20, 20)
  19:               DrawBackedText(g, m_OcrText, 20, 20);
  20:           }
  21:       }
  22:       #region draw characters on the graphics
  23:       /* 根據傳入text, 先計算所需的包覆矩形大小size
  24:        * 白底黑字 FillRectangle & DrawString
  25:        */
  26:       private void DrawBackedText(Graphics g, string text, int x, int y)
  27:       {
  28:           SizeF size = g.MeasureString(text, m_Font);
  29:           g.FillRectangle(m_WhiteBrush, x, y, size.Width, size.Height);
  30:           g.DrawString(text, m_Font, m_BlackBrush, x, y);
  31:       }
  32:       #endregion
  33:
  34:       #endregion

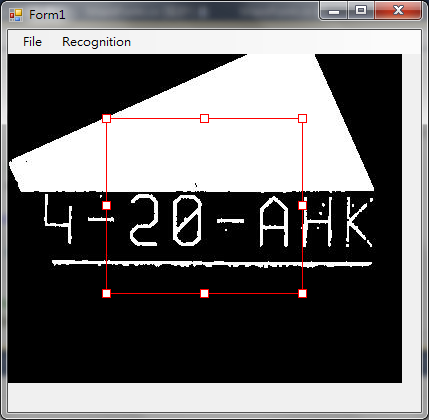

載入一張照片, 到目前為止紅色roi並不能移動或縮放…

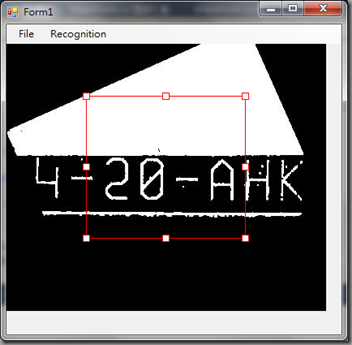

為了移動roi, Form1 加入mouse down, mouse move, mouse up三個events

   1: this.MouseDown += new System.Windows.Forms.MouseEventHandler(this.Form1_MouseDown);
   2: this.MouseMove += new System.Windows.Forms.MouseEventHandler(this.Form1_MouseMove);
   3: this.MouseUp += new System.Windows.Forms.MouseEventHandler(this.Form1_MouseUp);

mouse down

   1: private void Form1_MouseDown(object sender, MouseEventArgs e)
   2: {
   3:     m_Handle = m_Roi.HitTest(e.X, e.Y);
   4: }

mouse move

   1: private void Form1_MouseMove(object sender, MouseEventArgs e)
   2: {
   3:     if (m_Handle != DragHandle.NoHandle)
   4:     {
   5:         m_Roi.Drag(m_Handle, e.X, e.Y);
   6:         Redraw(CreateGraphics());
   7:     }
   8: }

mouse up

   1: private void Form1_MouseUp(object sender, MouseEventArgs e)
   2:  {
   3:      m_Handle = DragHandle.NoHandle;
   4:  }

載入ocr參數檔案


   1: openFileDialog1.Filter = "OCR font files (*.ocr)|*.ocr";
   2:             if (openFileDialog1.ShowDialog() == DialogResult.Cancel)
   3:                 return;
   4:             try
   5:             {
   6:                 m_Ocr.Load(openFileDialog1.FileName);
   7:             }
   8:             catch( Euresys.eVisionException exc)
   9:             {
  10:                 MessageBox.Show(exc.Message);
  11:             }
  12:
  13:             // Refresh form
  14:             Refresh();

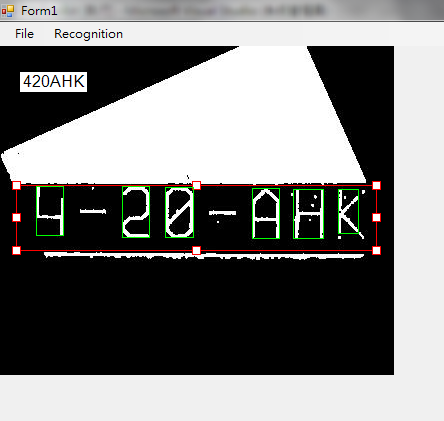

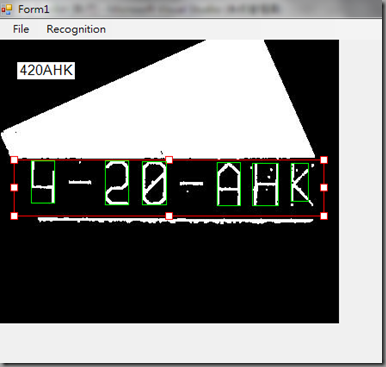

字元辨識

   1: private void readToolStripMenuItem_Click(object sender, EventArgs e)
   2:         {
   3:             if (m_Source.Void)
   4:                 return;
   5:             m_Ocr.Threshold = ThresholdMode.MinResidue;
   6:
   7:             try
   8:             {
   9:                 // Perform character detection
  10:                 m_Ocr.BuildObjects(m_Roi);
  11:                 m_Ocr.MinCharWidth = 28;
  12:                 m_Ocr.FindAllChars(m_Roi);
  13:
  14:                 // Perform recognition
  15:                 System.Int32 classes = (int)EasyOcr.Class.AllClasses;
  16:                 m_Ocr.Recognize(m_Roi, 256, classes, ref m_OcrText);
  17:
  18:                 // Enable the displaying
  19:                 m_bRead = true;
  20:             }
  21:             catch (Euresys.eVisionException exc)
  22:             {
  23:                 MessageBox.Show(exc.Message);
  24:             }
  25:
  26:             // Force a redraw
  27:             Refresh();
  28:         }






資料來源: eVision OCR sample code
