新版OpenCV 2.4.8發行囉!!!

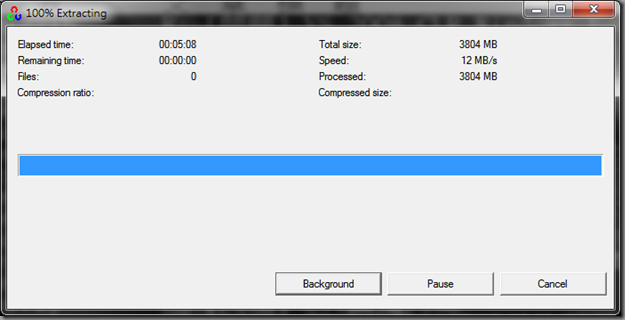

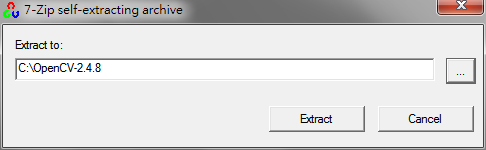

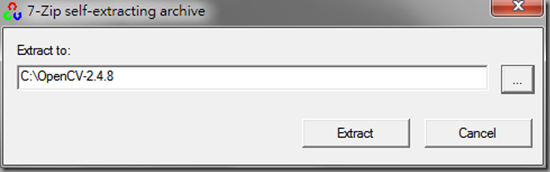

直接Extract到C:\OpenCV-2.4.8\

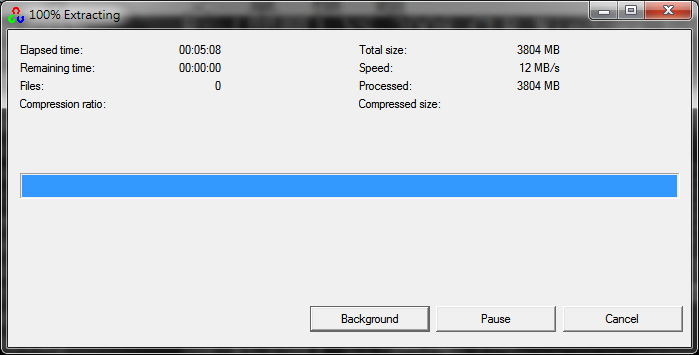

花了5分多鐘解壓縮
安裝步驟請各位先參考之前文章: 安裝Install OpenCV 2.4.7 with Visual Studio 2010
==============================分隔線========================================
安裝CMake
Windows (Win32 Installer)
cmake-2.8.12.1-win32-x86.exe

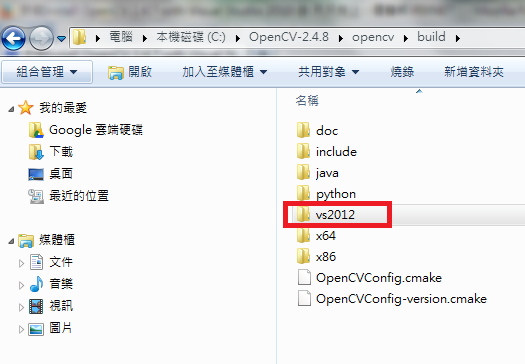

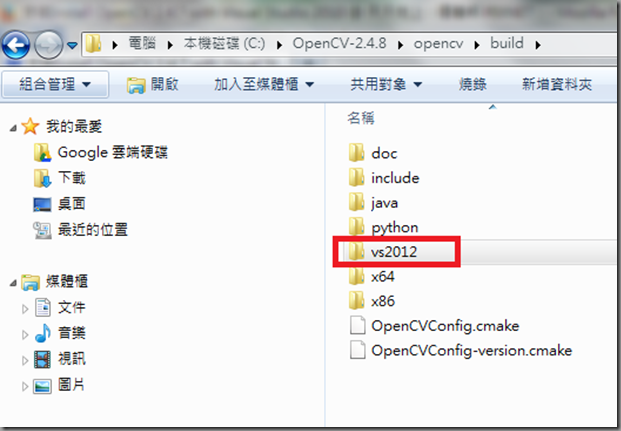

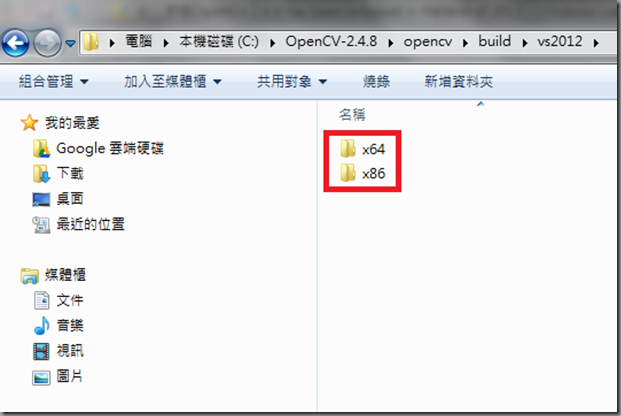

在C:\OpenCV-2.4.8\opencv\build\目錄夾下創建一個vs2012資料夾

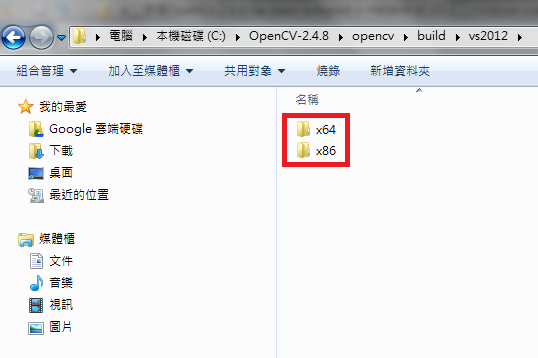

新增次目錄x64和x86
開啟CMake

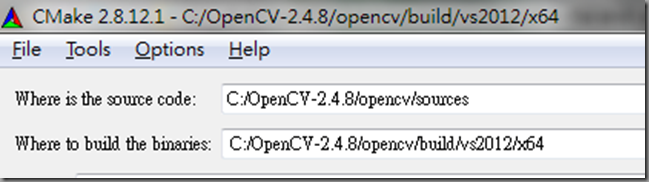

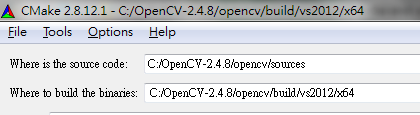

設定source code和編譯結果輸出(binaries)的路徑

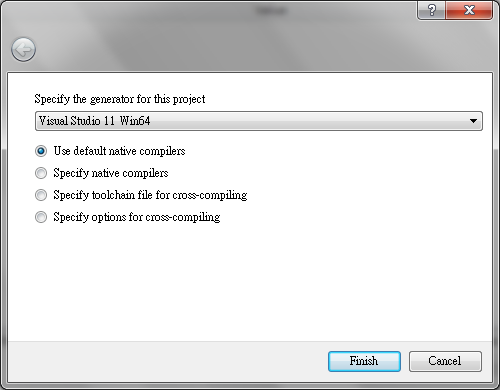

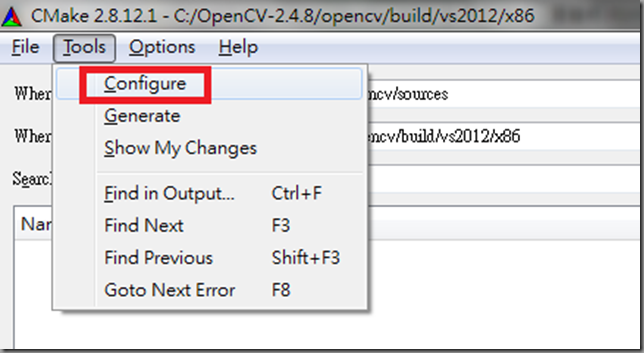

設定configuration

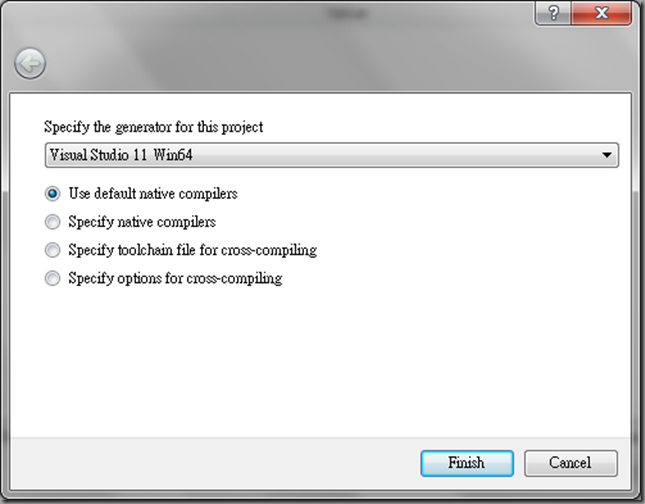

下拉選單選擇 Visual Studio 11 Win64
1: The CXX compiler identification is MSVC 17.0.50727.1
2: The C compiler identification is MSVC 17.0.50727.1
3: Check for working CXX compiler using: Visual Studio 11 Win64
4: Check for working CXX compiler using: Visual Studio 11 Win64 -- works
5: Detecting CXX compiler ABI info
6: Detecting CXX compiler ABI info - done
7: Check for working C compiler using: Visual Studio 11 Win64
8: Check for working C compiler using: Visual Studio 11 Win64 -- works
9: Detecting C compiler ABI info
10: Detecting C compiler ABI info - done
11: Performing Test HAVE_CXX_FSIGNED_CHAR
12: Performing Test HAVE_CXX_FSIGNED_CHAR - Failed
13: Performing Test HAVE_C_FSIGNED_CHAR
14: Performing Test HAVE_C_FSIGNED_CHAR - Failed
15: Checking for Windows Platform SDK
16: Checking for Visual Studio 2012
17: Looking for fseeko
18: Looking for fseeko - not found
19: Looking for unistd.h
20: Looking for unistd.h - not found
21: Looking for sys/types.h
22: Looking for sys/types.h - found
23: Looking for stdint.h
24: Looking for stdint.h - found
25: Looking for stddef.h
26: Looking for stddef.h - found
27: Check size of off64_t
28: Check size of off64_t - failed
29: Looking for assert.h
30: Looking for assert.h - found
31: Looking for fcntl.h
32: Looking for fcntl.h - found
33: Looking for io.h
34: Looking for io.h - found
35: Looking for jbg_newlen
36: Looking for jbg_newlen - not found
37: Looking for mmap
38: Looking for mmap - not found
39: Looking for search.h
40: Looking for search.h - found
41: Looking for string.h
42: Looking for string.h - found
43: Looking for unistd.h
44: Looking for unistd.h - not found
45: Could NOT find PythonInterp (missing: PYTHON_EXECUTABLE) (Required is at least version "2.0")
46: Could NOT find JNI (missing: JAVA_AWT_LIBRARY JAVA_JVM_LIBRARY JAVA_INCLUDE_PATH JAVA_INCLUDE_PATH2 JAVA_AWT_INCLUDE_PATH)
47:
48: General configuration for OpenCV 2.4.8 =====================================
49: Version control: unknown
50:
51: Platform:
52: Host: Windows 6.1 AMD64
53: CMake: 2.8.12.1
54: CMake generator: Visual Studio 11 Win64
55: CMake build tool: C:/PROGRA~2/MICROS~3.0/Common7/IDE/devenv.com
56: MSVC: 1700
57:
58: C/C++:
59: Built as dynamic libs?: YES
60: C++ Compiler: C:/Program Files (x86)/Microsoft Visual Studio 11.0/VC/bin/x86_amd64/cl.exe (ver 17.0.50727.1)
61: C++ flags (Release): /DWIN32 /D_WINDOWS /W4 /GR /EHa /D _CRT_SECURE_NO_DEPRECATE /D _CRT_NONSTDC_NO_DEPRECATE /D _SCL_SECURE_NO_WARNINGS /Gy /bigobj /Oi /wd4251 /MD /O2 /Ob2 /D NDEBUG /Zi
62: C++ flags (Debug): /DWIN32 /D_WINDOWS /W4 /GR /EHa /D _CRT_SECURE_NO_DEPRECATE /D _CRT_NONSTDC_NO_DEPRECATE /D _SCL_SECURE_NO_WARNINGS /Gy /bigobj /Oi /wd4251 /D_DEBUG /MDd /Zi /Ob0 /Od /RTC1
63: C Compiler: C:/Program Files (x86)/Microsoft Visual Studio 11.0/VC/bin/x86_amd64/cl.exe
64: C flags (Release): /DWIN32 /D_WINDOWS /W3 /D _CRT_SECURE_NO_DEPRECATE /D _CRT_NONSTDC_NO_DEPRECATE /D _SCL_SECURE_NO_WARNINGS /Gy /bigobj /Oi /MD /O2 /Ob2 /D NDEBUG /Zi
65: C flags (Debug): /DWIN32 /D_WINDOWS /W3 /D _CRT_SECURE_NO_DEPRECATE /D _CRT_NONSTDC_NO_DEPRECATE /D _SCL_SECURE_NO_WARNINGS /Gy /bigobj /Oi /D_DEBUG /MDd /Zi /Ob0 /Od /RTC1
66: Linker flags (Release): /machine:x64 /INCREMENTAL:NO /debug
67: Linker flags (Debug): /machine:x64 /debug /INCREMENTAL
68: Precompiled headers: YES
69:
70: OpenCV modules:
71: To be built: core flann imgproc highgui features2d calib3d ml video legacy objdetect photo gpu ocl nonfree contrib stitching superres ts videostab
72: Disabled: world
73: Disabled by dependency: -
74: Unavailable: androidcamera dynamicuda java python
75:
76: Windows RT support: NO
77:
78: GUI:
79: QT: NO
80: Win32 UI: YES
81: OpenGL support: NO
82:
83: Media I/O:
84: ZLib: build (ver 1.2.7)
85: JPEG: build (ver 62)
86: PNG: build (ver 1.5.12)
87: TIFF: build (ver 42 - 4.0.2)
88: JPEG 2000: build (ver 1.900.1)
89: OpenEXR: build (ver 1.7.1)
90:
91: Video I/O:
92: Video for Windows: YES
93: DC1394 1.x: NO
94: DC1394 2.x: NO
95: FFMPEG: YES (prebuilt binaries)
96: codec: YES (ver 55.18.102)
97: format: YES (ver 55.12.100)
98: util: YES (ver 52.38.100)
99: swscale: YES (ver 2.3.100)
100: gentoo-style: YES
101: OpenNI: NO
102: OpenNI PrimeSensor Modules: NO
103: PvAPI: NO
104: GigEVisionSDK: NO
105: DirectShow: YES
106: Media Foundation: NO
107: XIMEA: NO
108: Intel PerC: NO
109:
110: Other third-party libraries:
111: Use IPP: NO
112: Use Eigen: NO
113: Use TBB: NO
114: Use OpenMP: NO
115: Use GCD NO
116: Use Concurrency YES
117: Use C=: NO
118: Use Cuda: NO
119: Use OpenCL: YES
120:
121: OpenCL:
122: Version: dynamic
123: Include path: C:/OpenCV-2.4.8/opencv/sources/3rdparty/include/opencl/1.2
124: Use AMD FFT: NO
125: Use AMD BLAS: NO
126:
127: Python:
128: Interpreter: NO
129:
130: Java:
131: ant: NO
132: JNI: NO
133: Java tests: NO
134:
135: Documentation:
136: Build Documentation: NO
137: Sphinx: NO
138: PdfLaTeX compiler: NO
139:
140: Tests and samples:
141: Tests: YES
142: Performance tests: YES
143: C/C++ Examples: NO
144:
145: Install path: C:/OpenCV-2.4.8/opencv/build/vs2012/x64/install
146:
147: cvconfig.h is in: C:/OpenCV-2.4.8/opencv/build/vs2012/x64
148: -----------------------------------------------------------------
149:
150: Configuring done

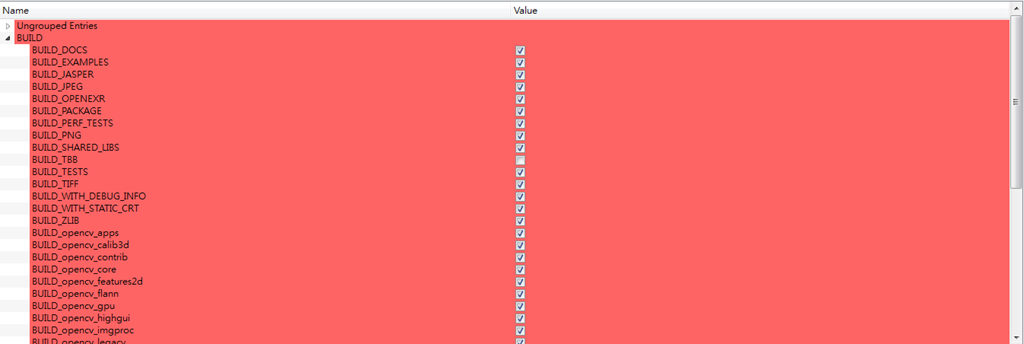

BUILD目錄
BUILD->BUILD_EXAMPLES打勾
BUILD->BUILD_TBB不打勾

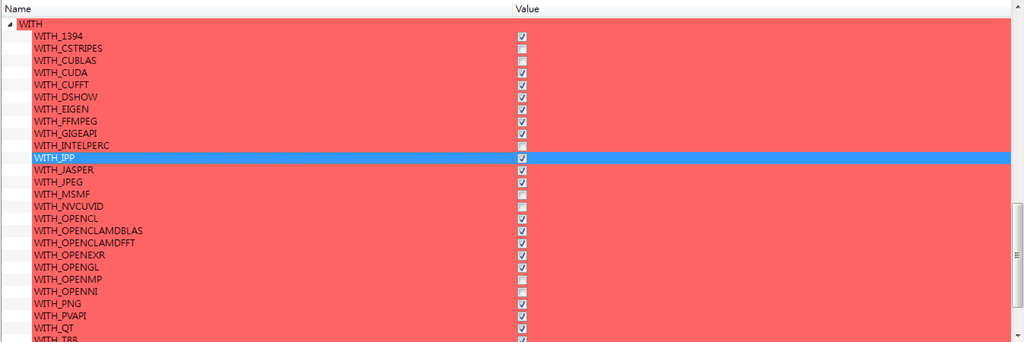

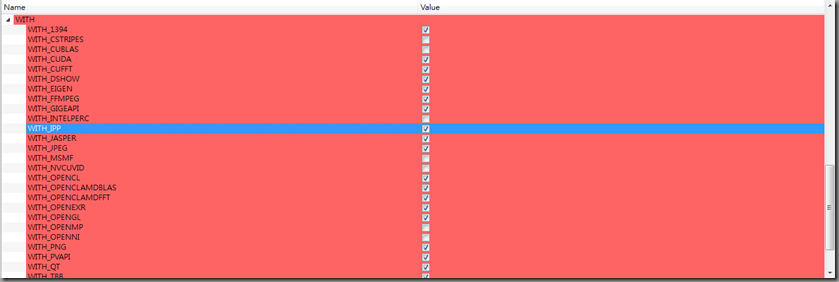

WITH目錄
WITH->WITH_IPP打勾
WITH->WITH_OPENGL打勾
WITH->WITH_TBB打勾
按下configure按鈕

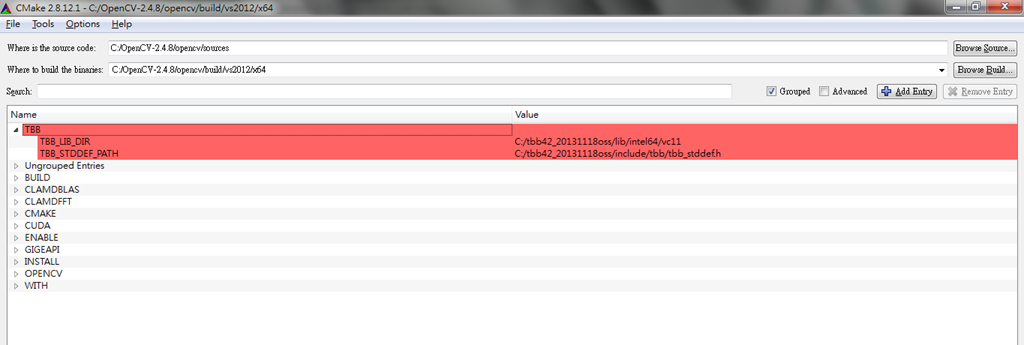

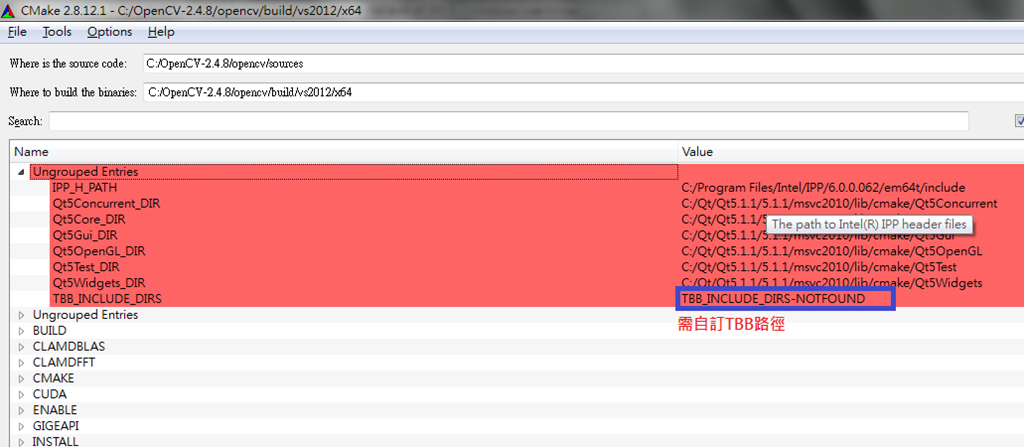

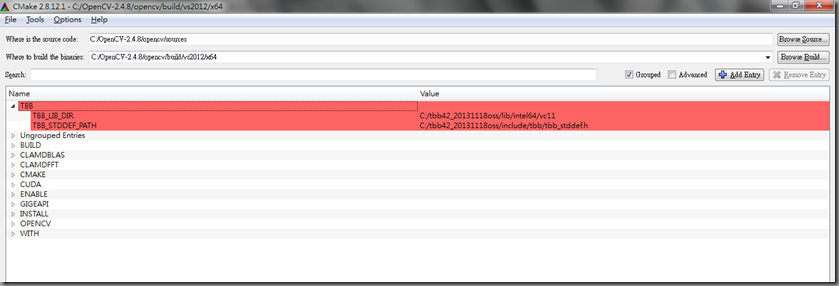

設定TBB路徑C:/tbb42_20131118oss/include
下載: Threading Building Blocks(Intel® TBB) 4.2 update 2
再次按下configure按鈕
再次按下configure按鈕
1: Checking for Windows Platform SDK
2: Checking for Visual Studio 2012
3: found IPP: 6.0.167 [6.0]
4: at: C:/Program Files/Intel/IPP/6.0.0.062/em64t
5: IPP libs: ippvmmergedem64t.lib;ippvmemergedem64t.lib;ippccmergedem64t.lib;ippccemergedem64t.lib;ippcvmergedem64t.lib;ippcvemergedem64t.lib;ippimergedem64t.lib;ippiemergedem64t.lib;ippsmergedem64t.lib;ippsemergedem64t.lib;ippcoreem64tl.lib
6: IPP libs: ippvmmergedem64t.lib;ippvmemergedem64t.lib;ippccmergedem64t.lib;ippccemergedem64t.lib;ippcvmergedem64t.lib;ippcvemergedem64t.lib;ippimergedem64t.lib;ippiemergedem64t.lib;ippsmergedem64t.lib;ippsemergedem64t.lib;ippcoreem64tl.lib
7: Could NOT find PythonInterp (missing: PYTHON_EXECUTABLE) (Required is at least version "2.0")
8: Could NOT find JNI (missing: JAVA_AWT_LIBRARY JAVA_JVM_LIBRARY JAVA_INCLUDE_PATH JAVA_INCLUDE_PATH2 JAVA_AWT_INCLUDE_PATH)
9:
10: General configuration for OpenCV 2.4.8 =====================================
11: Version control: unknown
12:
13: Platform:
14: Host: Windows 6.1 AMD64
15: CMake: 2.8.12.1
16: CMake generator: Visual Studio 11 Win64
17: CMake build tool: C:/PROGRA~2/MICROS~3.0/Common7/IDE/devenv.com
18: MSVC: 1700
19:
20: C/C++:
21: Built as dynamic libs?: YES
22: C++ Compiler: C:/Program Files (x86)/Microsoft Visual Studio 11.0/VC/bin/x86_amd64/cl.exe (ver 17.0.50727.1)
23: C++ flags (Release): /DWIN32 /D_WINDOWS /W4 /GR /EHa /D _CRT_SECURE_NO_DEPRECATE /D _CRT_NONSTDC_NO_DEPRECATE /D _SCL_SECURE_NO_WARNINGS /Gy /bigobj /Oi /wd4251 /MD /O2 /Ob2 /D NDEBUG /Zi
24: C++ flags (Debug): /DWIN32 /D_WINDOWS /W4 /GR /EHa /D _CRT_SECURE_NO_DEPRECATE /D _CRT_NONSTDC_NO_DEPRECATE /D _SCL_SECURE_NO_WARNINGS /Gy /bigobj /Oi /wd4251 /D_DEBUG /MDd /Zi /Ob0 /Od /RTC1
25: C Compiler: C:/Program Files (x86)/Microsoft Visual Studio 11.0/VC/bin/x86_amd64/cl.exe
26: C flags (Release): /DWIN32 /D_WINDOWS /W3 /D _CRT_SECURE_NO_DEPRECATE /D _CRT_NONSTDC_NO_DEPRECATE /D _SCL_SECURE_NO_WARNINGS /Gy /bigobj /Oi /MD /O2 /Ob2 /D NDEBUG /Zi
27: C flags (Debug): /DWIN32 /D_WINDOWS /W3 /D _CRT_SECURE_NO_DEPRECATE /D _CRT_NONSTDC_NO_DEPRECATE /D _SCL_SECURE_NO_WARNINGS /Gy /bigobj /Oi /D_DEBUG /MDd /Zi /Ob0 /Od /RTC1
28: Linker flags (Release): /machine:x64 /INCREMENTAL:NO /debug
29: Linker flags (Debug): /machine:x64 /debug /INCREMENTAL
30: Precompiled headers: YES
31:
32: OpenCV modules:
33: To be built: core flann imgproc highgui features2d calib3d ml video legacy objdetect photo gpu ocl nonfree contrib stitching superres ts videostab
34: Disabled: world
35: Disabled by dependency: -
36: Unavailable: androidcamera dynamicuda java python
37:
38: Windows RT support: NO
39:
40: GUI:
41: QT: NO
42: Win32 UI: YES
43: OpenGL support: YES (glu32 opengl32)
44:
45: Media I/O:
46: ZLib: build (ver 1.2.7)
47: JPEG: build (ver 62)
48: PNG: build (ver 1.5.12)
49: TIFF: build (ver 42 - 4.0.2)
50: JPEG 2000: build (ver 1.900.1)
51: OpenEXR: build (ver 1.7.1)
52:
53: Video I/O:
54: Video for Windows: YES
55: DC1394 1.x: NO
56: DC1394 2.x: NO
57: FFMPEG: YES (prebuilt binaries)
58: codec: YES (ver 55.18.102)
59: format: YES (ver 55.12.100)
60: util: YES (ver 52.38.100)
61: swscale: YES (ver 2.3.100)
62: gentoo-style: YES
63: OpenNI: NO
64: OpenNI PrimeSensor Modules: NO
65: PvAPI: NO
66: GigEVisionSDK: NO
67: DirectShow: YES
68: Media Foundation: NO
69: XIMEA: NO
70: Intel PerC: NO
71:
72: Other third-party libraries:
73: Use IPP: 6.0 [6.0.167]
74: at: C:/Program Files/Intel/IPP/6.0.0.062/em64t
75: Use Eigen: NO
76: Use TBB: YES (ver 4.2 interface 7002)
77: Use OpenMP: NO
78: Use GCD NO
79: Use Concurrency NO
80: Use C=: NO
81: Use Cuda: NO
82: Use OpenCL: YES
83:
84: OpenCL:
85: Version: dynamic
86: Include path: C:/OpenCV-2.4.8/opencv/sources/3rdparty/include/opencl/1.2
87: Use AMD FFT: NO
88: Use AMD BLAS: NO
89:
90: Python:
91: Interpreter: NO
92:
93: Java:
94: ant: NO
95: JNI: NO
96: Java tests: NO
97:
98: Documentation:
99: Build Documentation: NO
100: Sphinx: NO
101: PdfLaTeX compiler: NO
102:
103: Tests and samples:
104: Tests: YES
105: Performance tests: YES
106: C/C++ Examples: YES
107:
108: Install path: C:/OpenCV-2.4.8/opencv/build/vs2012/x64/install
109:
110: cvconfig.h is in: C:/OpenCV-2.4.8/opencv/build/vs2012/x64
111: -----------------------------------------------------------------
112:
113: Configuring done
按下Generate按鈕
==============================分隔線========================================
開啟Visual Studio 2012

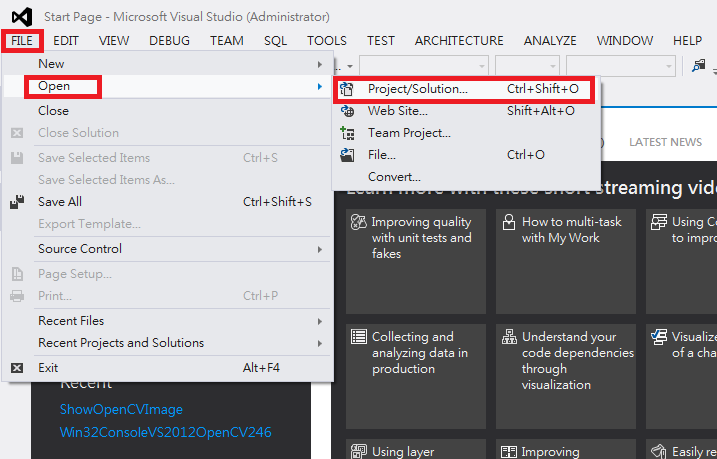

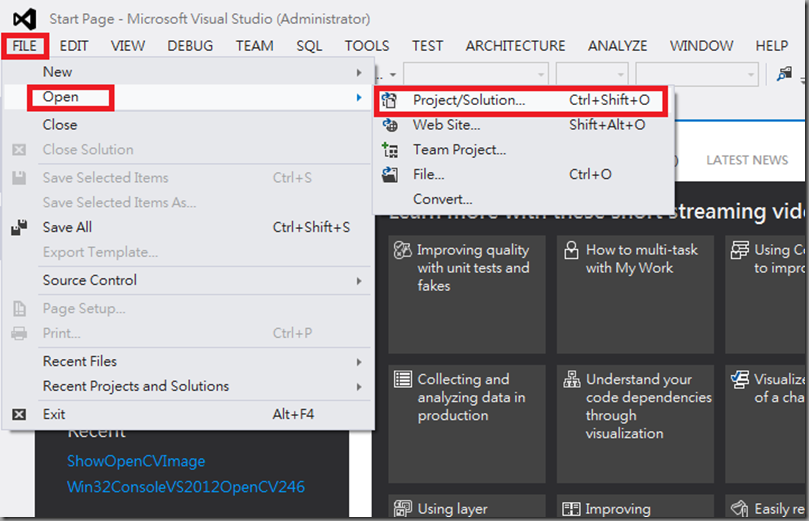

FILE –> Open –> Project/Solution

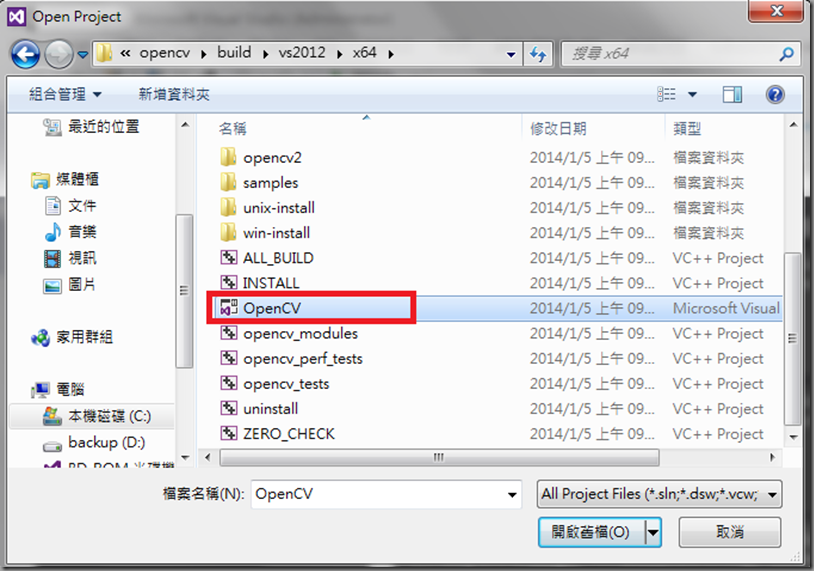

開啟專案OpenCV

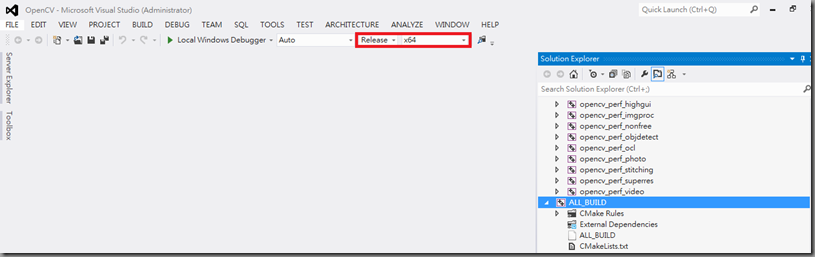

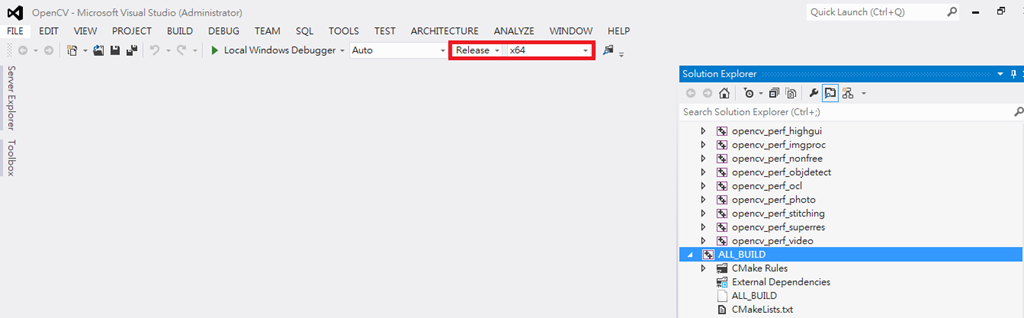

設定專案屬性

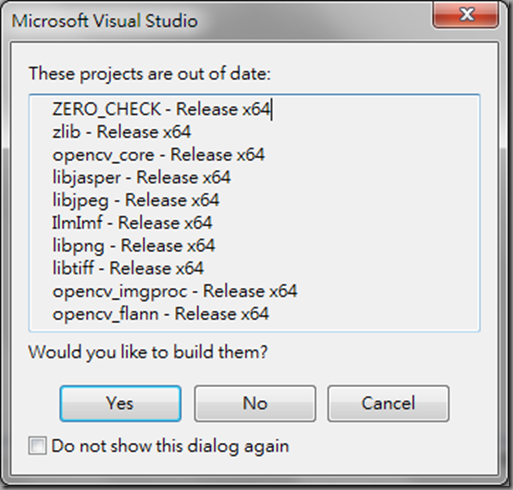

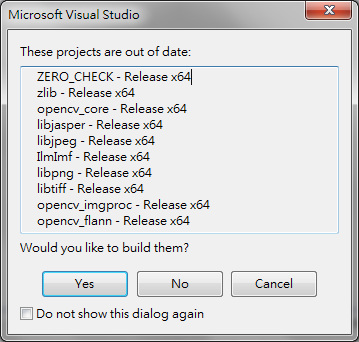

按下Local Windows Debugger, 按下Yes按鈕開始編譯….

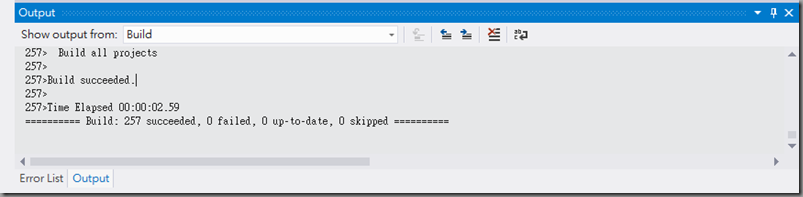

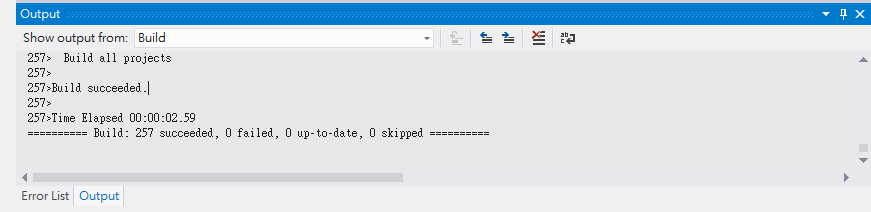

編譯完成
